50mm Perforated base Rock Wool Fixing Insulation Pins With dome cap Washer

50mm Perforated Base Rock Wool Fixing Insulation Pins With Dome Cap Washer

Perforated Base Rock Wool Fixing Insulation Pins Product Introduce :

Perforated base rock wool fixing insulation pins are used to attach insulation with the use of

General Purpose Adhesive. Masonry and other sound substrates. Surfaces must be clean and

dry before adhesive is applied. Some protective coatings are not compatible with adhesives and

it is recommended that the user make test bonds before proceeding with the application. After the

Pin is installed, insulation is impaled over the spindle and secured with a self-locking washer

Suitable for fixing all types of insulation to concrete, brick, stone or block base material.Insulation

fastening solutions for concrete and masonry, suitable for insulation materials such as mineral

wool, EPS, XPS and Fibreglass

Specification of Perforated Base Rock Wool Fixing Insulation Pins

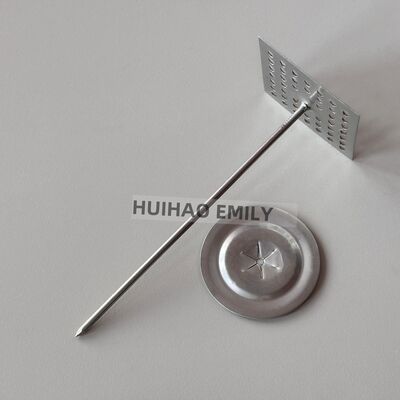

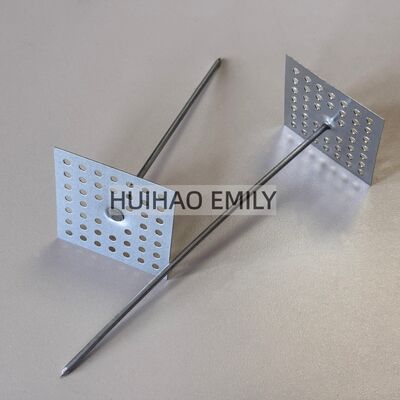

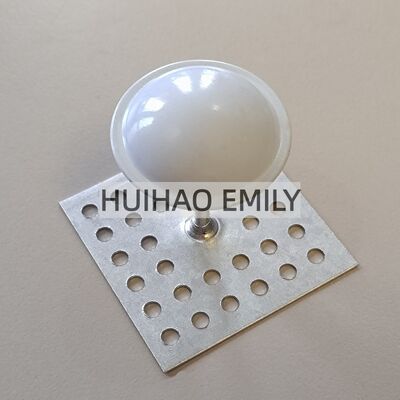

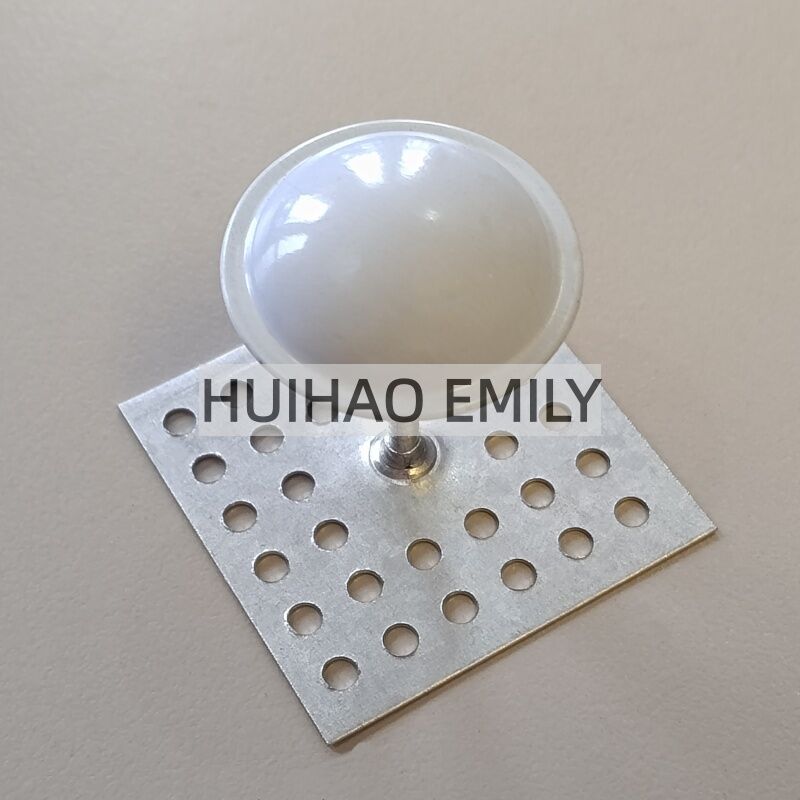

Pic of Perforated Base Rock Wool Fixing Insulation Pins

Advantage of Perforated Base Rock Wool Fixing Insulation Pins

1. It has anti-temperature sudden change, cold resistance and heat resistance;
2. High bearing capacity, high pressure bearing and good tensile performance;
3. easy to install, no special installation tools are required;
4. It is not easy to deform, moisture, vibration, and good thermal properties after loading.

1, Base are tight with pins.
2, Pin is soft and easy for bending.
3, Pin is sharp, easy go through any insulation blankets.

Aluminum insulating nail is made of iron sheet and aluminium wire, It is used to fix the insulating

layer on the insulating body,The length of the insulating nail is selected according to the thickness

of the insulating layer,It needs to be used with special glue for insulating nail,It is mainly used for

fixing glass wool and rock wool.

Package of Perforated Base Rock Wool Fixing Insulation Pins

Package of Perforated Base Rock Wool Fixing Insulation Pins >> Package 1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet. to be your requirements. >>> Delivery Sample: DHL/EMS/UPS/TNT/EXPRESS Large Order: we recommend you by SEA ,or by AIR if in an emergency.

How to choose the length for perforated base insulation spindle pins

Glass wool *rock wool polysyren*PU panels*Foam glass*Lighting building boards made of wood

wool*Coir matting *Cork boards

How to choose suitable pin length for fixing insulation material ?

=38mm insulation pin fixing for 15mm-25mm insulation materials

=63mm insulation pin fixing for 25mm-45mm insulation materials

=90mm insulation pin fixing for 45mm-70mm insulation materials

=110mm insulation pin fixing for 40mm--70mm insulation board

=145mm insulation anchors for 75mm-105mm insulation slabs

=170mm fireproof fixing for 105-130mm insulation panels

=200mm metal fasteners for 135mm-160mm insulation boards
