50mm Base Self Adhesive Stick Pins Used In Ventilation Duct Insulation

Self Adhesive Stick Pins Product Introduce :

Self adhesive stick pins are used for fixing insulation materials on vertical application surfaces.

self-adhesives tandard insulation pins can be used only on straight, smooth, clean and dry

surfaces. Adhesive Surface must not be fingered. Insulation pin have a sticker backing to make

placing easier. They also have a unique Easy-Peel adhesive backing design so that there isn't

any fumbling with the release paper. self adhesive insulation pin are widely used for metal buildings,

oncrete foundations - even to the underside of wooden roofs.

For the pin ,the material usually choose stainless steel wire ,aluminum wire ,galvainzied wire ,

the wire must be annealed ,then it is soft to bend ,easy to use .For the base ,the material must be

hard and not easily deformed

The insulation pin usally install with a selt-locking washer and dome cap washer

Specification of Self Adhesive Stick Pins :

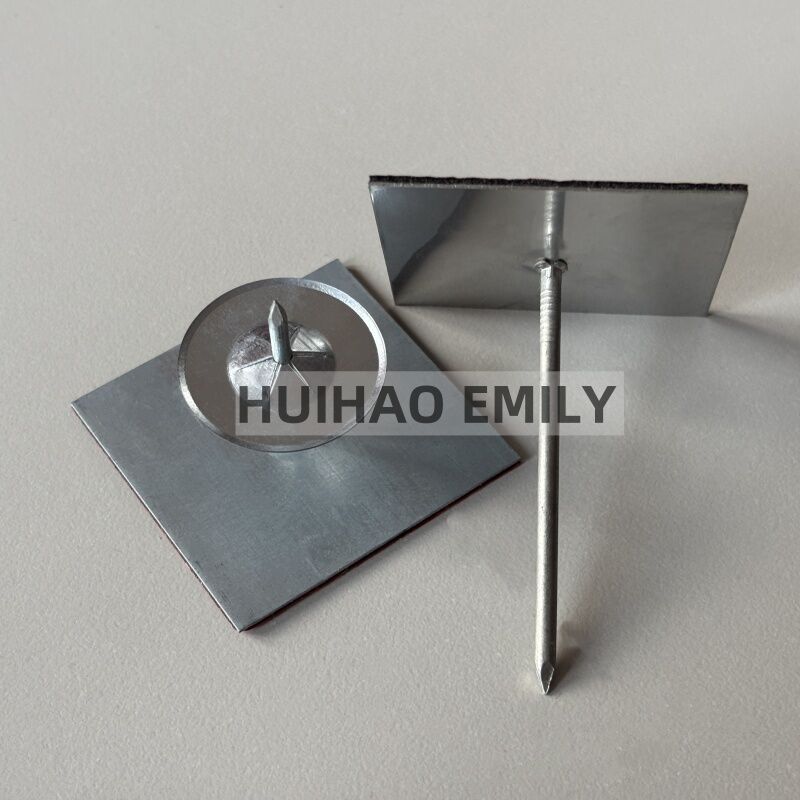

Pic of Self Adhesive Stick Pins :

Application of Self Adhesive Stick Pins :

Application--Insulation Pins With Self adhesive Base Plate

speration Temperatures: 15 to 25 ℃
Working Surface should be clean and dry, free of dust, grease, oil and any other loose matter.
Insulation can be impaled immediately and firmly locked with fastening washer.
The Maximum strength of adhesive is achieved after 24 hours

Package of Self Adhesive Stick Pins :

Package of Self Adhesive Stick Pins : >> Package 1. 500 pcs per bag/1000pcs carton. 64 cartons per pallet. 2. to be your requirements. >>> Delivery Sample: DHL/EMS/UPS/TNT/EXPRESS Large Order: we recommend you by SEA ,or by AIR if in an emergency.

Rock Wool Adhesive Insulation Pin Buying guide :

1. choose annealing wire for the pin
soft wire is easy to bend when fixing rock wool material with self locking washer
2.common size is 2.7mm ,3.0mm wire to make the pin
2.7mm and 3.0mm wre diamerer is standard size for insulation pin ,at the same time ,the diameter is
based on the pin length
3. the pin length based on insulation material thickness

=38mm insulation pin fixing for 15mm-25mm insulation materials

=63mm insulation pin fixing for 25mm-45mm insulation materials

=90mm insulation pin fixing for 45mm-70mm insulation materials

=110mm insulation pin fixing for 40mm--70mm insulation board

=145mm insulation anchors for 75mm-105mm insulation slabs

=170mm fireproof fixing for 105-130mm insulation panels

=200mm metal fasteners for 135mm-160mm insulation boards
