Product Details:
|
Product Name: | Metal Ring Mesh Drapery | Material: | Stainless Steel 304 |
---|---|---|---|
Type: | Woven Type | Wire Diameter: | 1.2mm |
Ring Diameter: | 10mm | Color: | Sliver ,gold Color ,other To Be Request |
Sample: | Support | Service: | Door To Door Service |
Highlight: | 1.2x10mm Metal Ring Mesh Drapery,Stainless Steel Metal Ring Mesh Drapery,Decoration Metal Ring Mesh Drapery |

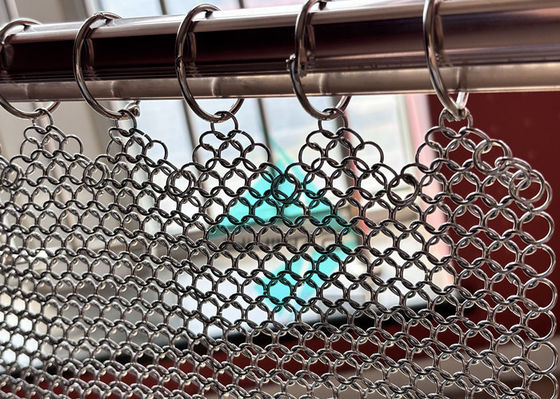

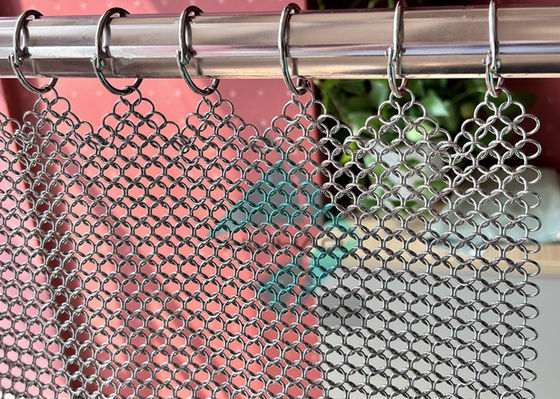

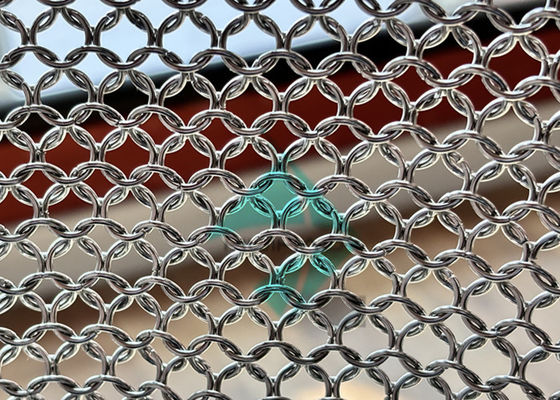

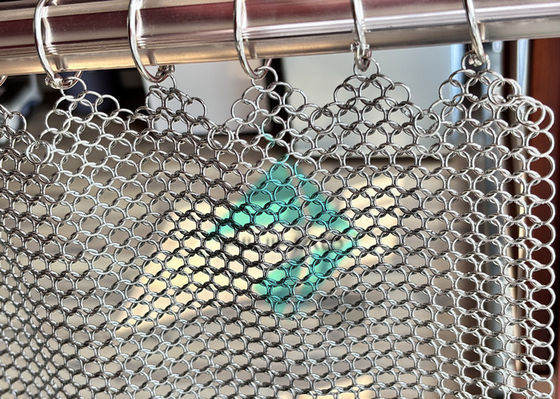

Product name:1.2x10mm stainless steel metal ring mesh drapery
Material :stainless steel 304 ,galvanized steel
Type :Non-welded type and welded type
Wire diameter :1.2mm ,other to be request
Ring diameter :10mm ,other to be request
Usage :for interior decoration and room partition ,Pot cleaner
Welded Type :
*****************************************************
Term | Type | Material | Wire diameter | Outer diameter | Weight/m2 |
HH-SS-053 | Weld | stainless steel | 0.53mm | 3.81mm | 3.2kgs |
HH-SS-080 | Weld | stainless steel | 0.80mm | 7.00mm | 2.8kgs |
HH-SS-150 | Weld | stainless steel | 1.50mm | 15.00mm | 4.8kgs |
HH-CS-150 | Weld | Copper/brass | 1.50mm | 15.00mm | 5.5kgs |
HH-SS-200 | Weld | stainless steel | 2.0mm | 20.00mm | 6.8kgs |
HH-CS-200 | Weld | Copper/brass | 2.0mm | 20.00mm | 7.8kgs |
Non-Welded Type :
******************************************************
Term | Type | Material | Wire diameter | Outer diameter | Weight/m2 |
XY-SS-100 | Non-welding | Stainless steel | 1.0mm | 8.00mm | 4.7kgs |
XY-MS-100 | Non-welding | Mild steel | 1.0mm | 8.00mm | 4.6kgs |
XY-SS-120 | Non-welding | Stainless steel | 1.2mm | 10mm | 4.8kgs |
XY-CS-120 | Non-welding | Mild steel | 1.2mm | 10mm | 5.5kgs |
XY-SS-150 | Non-welding | Stainless steel | 1.5mm | 15mm | 4.8kgs |
XY-CO-150 | Non-welding | Mild steel | 1.5mm | 15mm | 5.5kgs |
XY-SS-200 | Non-welding | Stainless steel | 2.0mm | 20mm | 6.8kgs |
XY-CO-200 | Non-welding | Mild steel | 2.0mm | 20mm | 7.8kgs |
1.2x10 non-welded type |
![]() |
1.2x10 welded type |
![]() |
Fireproof: Its meting point is far higher than that of cloth curtain. Stable: No shrinks or stretches when used. Mildew proof: It will be fine when used in humidity conditions. Sun rot proof: No matter how strong sun shine is, metal ring curtain will not be affected. Light diffusing: Light filtration is controlled by curtain fullness and light conditions. No maintenance: Stains can be washed off by mild soap water. Permanent: It will last longer than your life except you don't like to hang it any more |
![]() |
Space divider
• Wall decoration • Ceiling decoration • Window curtain
• Handrail balustrade • Elevator cab mesh • Facade cladding
• Glass laminated wire • Sunshade screen • Security door
• elevator cabins screen • Floor covering fabrics
Wire mesh facades
• Shade screens • Architecture ceilings • Metal draperies for walls
