Product Details:
|
| Product Name: | Self-adhesive Stick Pins | Material: | Galvanized Steel |
|---|---|---|---|
| Base Size: | 50x50mm | Base Type: | Base With Double Tape |
| Pin Diameter: | 2.7mm | Pin Length: | 25mm-320mm |
| Accessories: | Self Locking Washer ,dome Cap Washer | Sample: | Available |
| High Light: | 60mm Self-adhesive Stick Pins,Insulation Hanger Self-adhesive Stick Pins,Galvanized Steel stick pins for insulation |
||

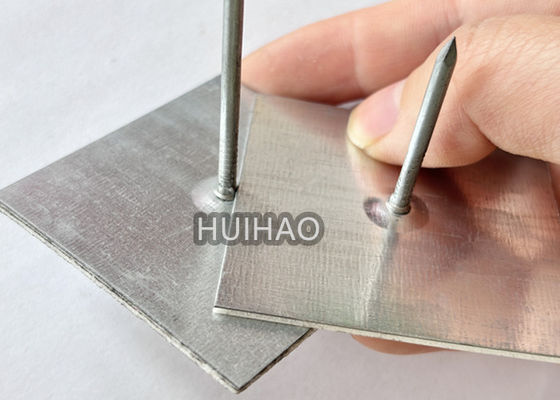

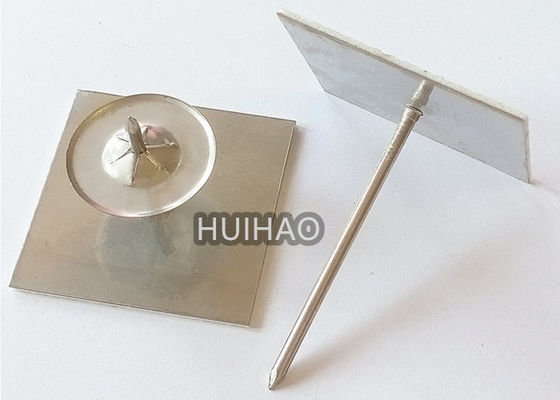

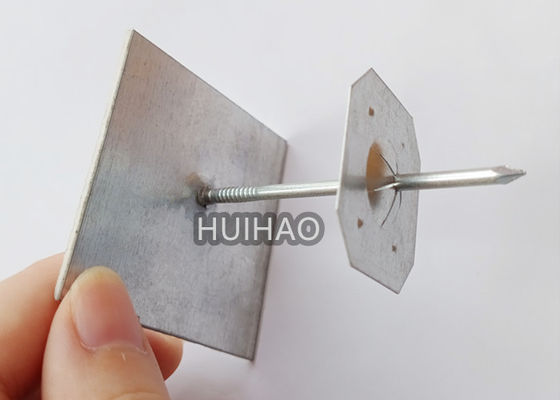

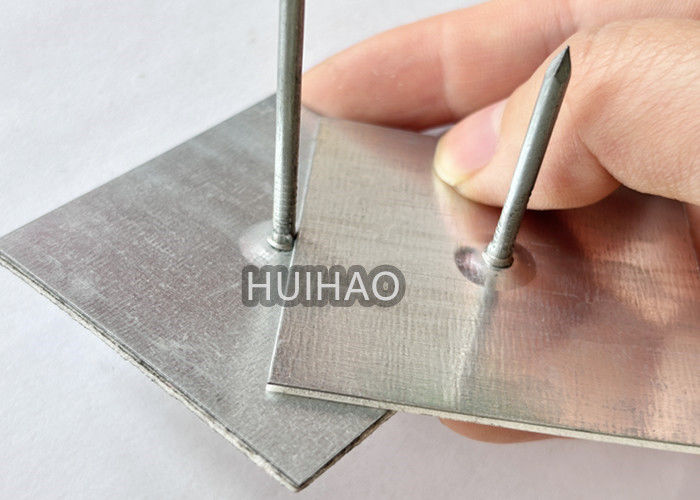

Product name :self adhesive stick pins, self stick pin nail,rock wool insulation pin,insulation stick pin
Pin diameter :2.7mm is in common ,special can be customized
Pin material :galvanized steel ,copper coated ,aluminum
Base size :50mmx50mm is in common
Base material :galvanized steel
Accessories:round self locking washer ,square self locking washer ,metal dome cap washes
Wide Application - The insulation pins and washers are mainly used in anchoring purpose for HVAC
system duct insulation, house wall insulation,equipment thermal insulation, presentation board installation
etc., suitable for fixing fiberglass mat , extruded polystyrene board, insulation foam board,wooden board
and so on.
|
self adhesive insulation pins |
||
| pin diameter | tape base | pin length |
| 12 ga (.106)/ 3mm | 50mm Square | 1 |
| 12 ga (.106)/ 3mm | 50mmSquare | 1-5/8 |
| 12 ga (.106)/ 3mm | 50mm Square | 2-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 3-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 4-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 5-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 6-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 8" |
| 12 ga (.106)/ 3mm | 50mm Square | 8-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 9-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 10-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 12" |
| Pin length | Carton size | Qty/carton |
| 38mm | 41cmx28cmx18cm | 1000pcs |
| 50mm-65mm | 41cmx28cmx18cm | 500pcs |
| 70mm-85mm | 30cmx28cmx29cm | 500pcs |
| 90mm-120mm | 30cmx30cmx30cm | 500pcs |
| 130mm-160mm | 30cmx30cmx35cm | 500pcs |
| 170mm-203mm | 30cmx30cmx28cm | 250pcs |
| others | support custom |
perforated base insulation pins
galvanized steel rock wool insulation pins
self adhesive insulation pins
CD weld pins
Bi-metallic pins
metal lacing anchors
metal quilking pins
Q1: Are you factory or trader ?
Yes ,we sell what we manufacture
Q2:How long is your delivery time?
Usually the ship time is within 7-15 days
Q3:What is your quote elements?
The size of product, material with surface treatment and the quantity
Q4:Can you provide samples?is it free or in charge ?
A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the
mold fee will return back you after confirm the mass order
Q5: How can you ensure the quality?
1.we can supply CAD drawing pic for you
2.Our company have ISO certificate
3.We have working on this product for twenty years and we have experience on it ,and we know the point
you focus on
