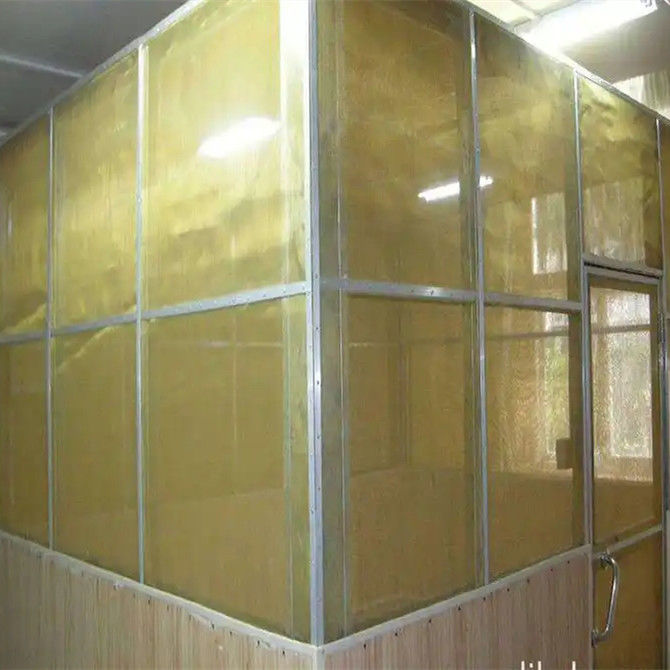

Emf Rf Shielding Room Brass Wire Mesh Electromagnetic Wave Shielding Materials

Large Image : Emf Rf Shielding Room Brass Wire Mesh Electromagnetic Wave Shielding Materials

Product Details:

Place of Origin:	CHINA
Brand Name:	HUIHAOKST
Certification:	ISO9001-2015
Model Number:	HH-BRASS

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece of Emf Rf Shielding Room Brass Wire Mesh
Packaging Details:	wooden case
Delivery Time:	10 work days
Payment Terms:	L/C, T/T
Supply Ability:	2000 pcs of Emf Rf Shielding Room Brass Wire Mesh per 28 days

Contact Now

Emf Rf Shielding Room Brass Wire Mesh Electromagnetic Wave Shielding Materials

Description

Name:	Emf Rf Shielding Room Brass Wire Mesh	Mesh:	200
Material:	Brass Wire Mesh	Mesh No.:	2-200 In Common
Wire Dia:	0.05-2mm In Common	Opening:	0.074-10.9mm
Mesh Width:	0.2-2m	Mesh Length:	10m-100m In Common
High Light:	Emf Shielding Room Brass Wire Mesh , Electromagnetic Wave Shielding Brass Wire Mesh , Rf Shielding Room Brass Mesh

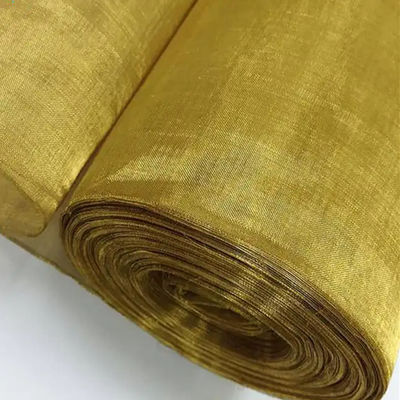

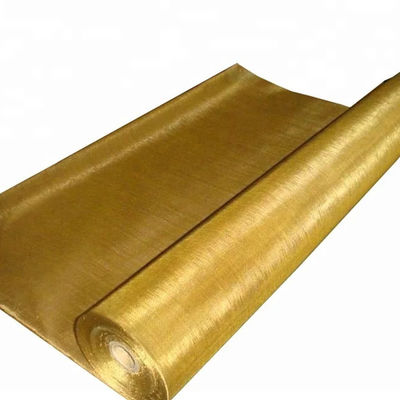

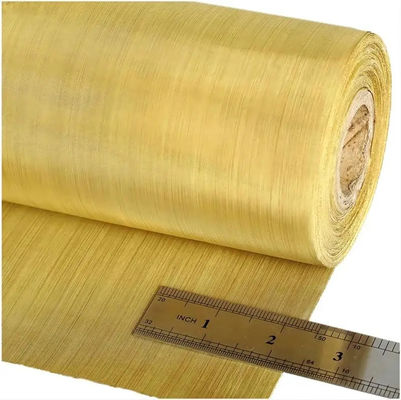

Over view of brass wire mesh

Brass wire mesh size and type:
Material: brass wire (65 brass, 70 brass and 80 brass).
Brass mesh woven style: plain weave, twill weave and dutch weave.
Mesh :2-200mesh
Diameter: 0.05-2mm
Aperture: 0.074-10.90(mm)
Brass screen mesh roll width: 0.5-2m
Brass wire cloth roll Length: 10-100m or customized.

Brass wire mesh applications:

Aerospace
Marine use
High end infill panels
Room separation & dividers
Unique artistic designs
Decorative lamp shades
Decorative signage
RF amplification
Metal artisans
Ceiling panels
Air & liquid filtration
Fireplace screens
Chemical processing & diffusion
Cabinet screens
Metal castings
Power generation
Oil strainers
Plumbing Screens
Soffit screen
Gutter guards
Air Vents

Specification details of brass wire mesh-weave type

Mesh	wire No.SWG	wire diameter (mm)	wire diameter (inch)	Opening(mm)
6	22	0.711	0.028	3.522
8	23	0.610	0.024	2.565
10	25	0.508	0.020	2.032
12	26	0.457	0.018	1.660
14	27	0.417	0.016	1.397
16	29	0.345	0.014	1.243
18	30	0.315	0.012	1.096
20	30	0.315	0.0124	0.955
22	30	0.315	0.0124	0.840
24	30	0.315	0.0124	0.743
26	31	0.295	0.0116	0.682
28	31	0.295	0.0116	0.612
30	32	0.247	0.011	0.573
32	33	0.254	0.010	0.540
34	34	0.234	0.0092	0.513
36	34	0.234	0.0092	0.472
38	35	0.213	0.0084	0.455
40	36	0.193	0.0076	0.442
42	36	0.193	0.0076	0.412
44	37	0.173	0.0068	0.404
46	37	0.173	0.0068	0.379
48	37	0.173	0.0068	0.356
50	37	0.173	0.0068	0.335
60X50	36	0.193	0.0076	-
60X50	37	0.173	0.0068	-
60	37	0.173	0.0068	0.250
70	39	0.132	0.0052	0.231
80	40	0.122	0.0048	0.196
90	41	0.112	0.0044	0.170
100	42	0.012	0.004	0.152
120X108	43	0.091	0.0036	-
120	44	0.081	0.0032	0.131
140	46	0.061	0.0024	0.120
150	46	0.061	0.0024	0.108
160	46	0.061	0.0024	0.098
180	47	0.051	0.002	0.090
200	47	0.051	0.002	0.076
