Product Details:
|
Name: | Aluminium Coil Mesh Drapery | Manufacture: | HUIHAO Hardware Mesh Product Co.,Ltd |
---|---|---|---|
Material: | Aluminium | Wire Diameter: | 0.8mm, 1.0mm, 1.2mm Is Standard |
Surface Finish: | Anodized | Aperture: | 6mm And 8mm Is Standard |
Door To Door Service: | Support | Curtain Size: | Customized |
Frame Design: | Support | Color: | Customized |
Highlight: | 8mm aperture metal coil drapery,window interiors metal coil drapery |

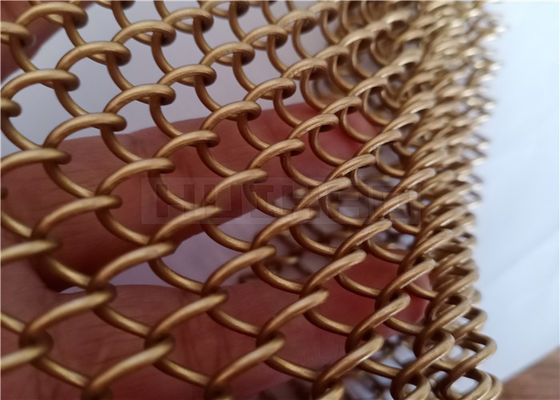

Aluminium Coil Mesh Drapery are widely used for interior and exterior architectural decorations.
It could be used as room dividers, building facades, solar shading, acoustic baffling for the
decoration of home, hotels, restaurants, museums, commercial buildings or exhibition halls etc.
Material: aluminium
Wire diameter: 0.8mm, 1.0mm, 1.2mm etc.
Aperture size: 6mm and 8mm is standard, others also could be customized.
Open area: 40% – 85%.
Surface treatment: anodic oxidation
Colors: silver, brass yellow, ultra black, Chinese red, purple and green and so on.
You can custom any color according to your requirements.
Item | Diameter (mm) | Aperture (mm) | Thickness (mm) |
HH-084 | 0.8 | 4 | 3.6 |
HH-085 | 0.8 | 5 | 3.6 |
HH-086 | 0.8 | 6 | 3.6 |
HH-088 | 0.8 | 8 | 3.6 |
HH-089 | 0.8 | 9 | 3.6 |
HH-104 | 1.0 | 4 | 3.6 |
HH-105 | 1.0 | 5 | 3.6 |
HH-106 | 1.0 | 6 | 3.6 |
HH-108 | 1.0 | 8 | 3.6 |
HH-109 | 1.0 | 9 | 3.6 |
HH-1010 | 1.0 | 10 | 3.6 |
HH-1020 | 1.0 | 20 | 3.6 |
HH-124 | 1.2 | 4 | 3.6 |
HH-125 | 1.2 | 5 | 3.6 |
HH-126 | 1.2 | 6 | 3.6 |
HH-128 | 1.2 | 8 | 3.6 |
HH-129 | 1.2 | 9 | 3.6 |
HH-1210 | 1.2 | 10 | 3.6 |
HH-1220 | 1.2 | 20 | 3.6 |
HH-1230 | 1.2 | 30 | 3.6 |
![]() |
Our aluminium coil mesh drapery is widely used in interior and exterior applications worldwide. It could be used as: exterior facade, wall covering, draped and suspended ceiling, column cladding, sunshade and canopy, gate, exhibit booth, retail display, elevator cab, stair and balustrade, furniture and cabinetry, partition screens, etc. | |
![]() |
We have three different installation ways: U track, H track installation and stainless steel curtain rod installation: 1. H track is high flexibility, it can be hand bent in any shape or angle to fit the layout and shape of curvature, either for wall mounted or ceiling mount. 2. For U track, exceptional structural design and quality control ensure its solid structure and creates a good view of drooping for hanging. 3. Stainless steel curtain rod is easy for coil mesh drapery to be installed on. How to choose the installation way? if your position condition is terrible, you should choose H track. If you desire an aesthetic appearance, U track is necessary for you. If you want to shorten installation time, you can choose stainless steel curtain rod.
Of course, all of them use high-quality materials and have a long life span. H track, U track are made from aluminum material, they are with lightweight and rust resistance characteristics. Stainless steel curtain rod is made from stainless steel material with excellent stability, strength and flexibility.
The installation also could be customized according to your own need.
|
|
![]() |
![]() |
![]() |
![]() |
![]() |
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the color, the material, the wire diameter, the aperture size and the installation way all
could be customized.
3. Can i get samples?
Yes.
4. How do you control and ensure product quality?
1) Confirm every details with you before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
5. Advantage Of Huihao Hardware Mesh Product Limited.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
