Product Details:
|
| Product Name: | SS Solar Panel Mesh Clips | Material: | Aluminum ,stainless Steel |
|---|---|---|---|
| J Size: | 2.0X100mm | Washer: | 30mm |
| Surface Treatment: | Black UV Finished | Usage: | For Fixing Solar Panel Mesh |
| Package: | 500/1000 Pcs In One Bag | Service: | Door To Door Service |
| High Light: | removable ss solar panel clips,secure bird proofing solar panel clips,30mm washer solar panel mesh clips |
||

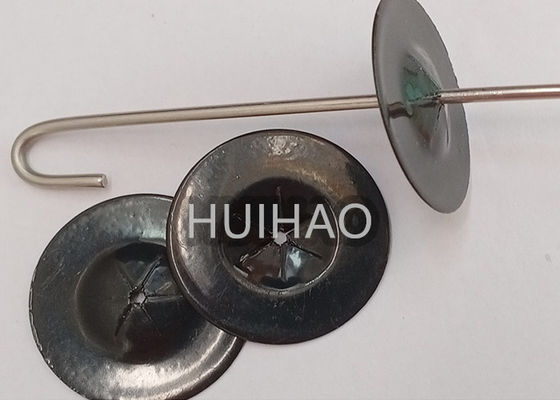

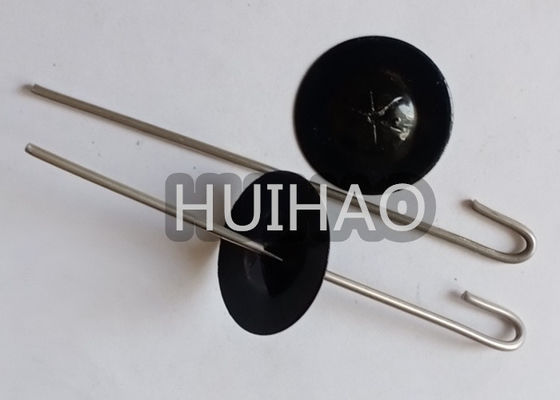

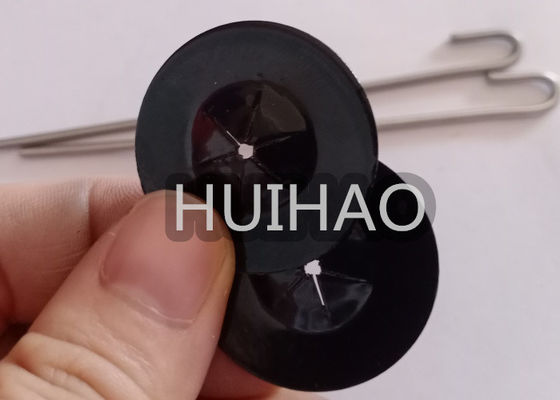

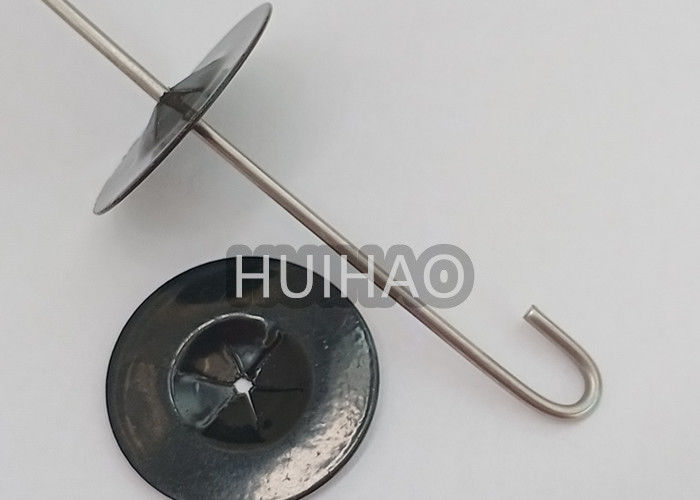

Quick Details of SS Solar Panel Mesh Clips:
Solar panel mesh clips contain self locking washers and J-hooks .They are used to secure wire mesh of
solar panels ,which creates a physical barrier to keep birds out from under the solar arrays . Every washer
has also been coated with a proprietary black paint that resists fading from UV exposure, so these clips will
stay looking just as good as your system.The clips don’t pierce the solar panels and is designed to protect
the integrity of expensive solar arrays ..
Hooks are used to secure insulation to wire mesh. They can be tack and arc welded, or just hooked onto the
mesh. After the hook is attached, the insulation is installed over the longer portion and held with a self-locking
washer. the mesh clip is easy removeable without demage the solar panel
The clips material is aluminum ,stainless steel , common size is 95mm,114mm,120mm length ,2.4mm diameter,
the washer is round ,retangle,oral style ,can produce according your requirement
| Product name | Solar panel mesh clips |
| Material | Aluminum, galvanized steel,Stainless steel |
| Size of hook | Length:95mm,114mm, 120mm |
| Dia of hook | 2.4mm ,2.0mm |
| suface treatment | phosphating |
| Size of washer | Retangle:28x32mm ,Round diameter: 25mm/30mm/38mm |
| Thickness | 0.6mm |
| Surface treatment | Black UV finished |
| Weight | 0.006kg/set |
| Application | J hook with washer to fasten solar panel mesh |
Slide the speed washer onto the shaft of the clip assembly until snug. Tighten speed washer to panel edge
to immobilize the mesh. Cut of the clip assembly rod flush with the exterior of the speed washer by cutter.
| Features of SS Solar Panel Mesh Clips |
| 1: Does not violate panel integrity. 2: It can easily be trimmed or bent after assembly. 3: Install and remove quickly and easily 4: The specification can be customized 5: The clips are sold separately or with the solar panel mesh |
| Packing of solar panel mesh clip | |
| J Hooks Package | Self Locking Washer Package |
|
1. 100 pcs per pp bag, 80 bags per carton 2. 500pcs per pp bag, 16bags per carton
3.1000pcs per pp bag, 8 bags per carton
Carton size: 41 cm x 28 cm x17 cm
|
1. 100 pcs per pp bag, 60 bags per carton 2. 500pcs per pp bag, 12bags per carton 3.1000pcs per pp bag, 6 bags per carton Carton size: 41 cm x 28 cm x17 cm |
|
|
The J hooks & washers usually pack with plastic bags +cartons.
The qty in each bags could be according to the customer's requirements.
Sample order: By express , such as UPS, FedEx, TNT, etc
Large order: By sea or air .
