Product Details:
|
| Product Name: | Solar Panel Mesh Clip | Material: | Aluminum ,stainless Steel |
|---|---|---|---|
| J Hook: | 2.4mm Diameter And 95mm Length | Washer: | 28mmx32mm |
| Certificate: | ISO9001-2015 | Sample: | Available |
| Application: | Fix Solar Panel Mesh | Pacakge: | 100pcs,500pcs 1000pcs Or To Be Request |
| High Light: | aluminum critter guard solar panel clips,solar panel clips for bird detterent,iso certificate solar panel mesh clips |
||

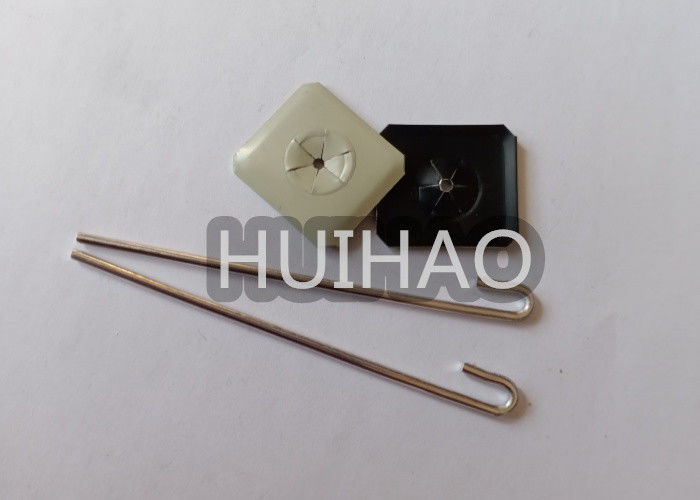

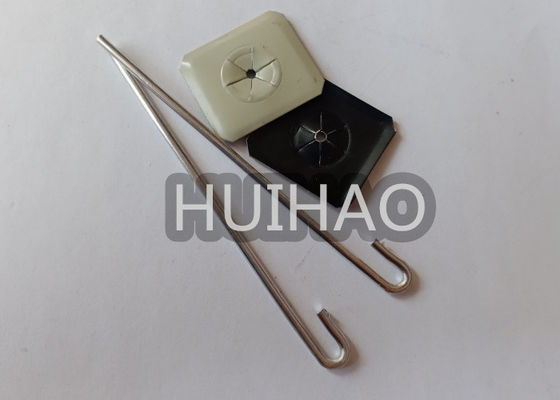

Product Name:Solar Panel mesh clip
Size :j hook are 2.4mm wire diameter and 95mm length
washer are retangle style 32x29mm
Material :j hook is aluminum material or stainless steel ,and it must be soft easy to bend
washer is alloy aluminum material ,it must be hard not esry to bend
Packing :usually it is 500/1000 pcs in one platic and then in carton
Service:we can supply door to door service
Solar panel mesh clip used to secure wire mesh of solar panels ,which creats a physical barrier to keep
bird out from under the solar arrays helps protect solar panels from rodents and nesting bird constructed
from maximun endurance to out door elements j-hook can easily be trimmed or bent after assembly washers
are offered in both ,j-hook easily attaches to the solar panel frames ,washer will firmly hold wire mesh screen
to the module assembly preventingsquirrels and rodents from damaging to the intercon-nection wires and birds
from nests under the solar panel
| Product name | material | thickness | Size | surface treatment |
| J hooks | aluminum or stainless steel | 2.5mm | 95mm, 114mm | Phosphating |
| Washers | Aluminum | 0.6mm | 28*32mm | Black color coating |
| Note | The hooks and washers size could be made according to the customer's requiremnts. | |||
Slide the speed washer onto the shaft of the clip assembly until snug. Tighten speed washer to panel edge
to immobilize the mesh. Cut of the clip assembly rod flush with the exterior of the speed washer by cutter.
|
features of Solar Panel Bird Deterrent Aluminum J Hook Clips |
|
· No need to drill or damage the panels · It can easily be trimmed or bent after assembly · Install and remove quickly and easily |
| Packing of Solar Panel Mesh Clip | |
|
Solar Panel Mesh Clip Package
1. 100 pcs per pp bag, 80 bags per carton 2. 500pcs per pp bag, 16bags per carton 3.1000pcs per pp bag, 8 bags per carton Carton size: 41 cm x 28 cm x17 cm
|
|
Self Locking Washer Package
1.100 pcs per pp bag, 60 bags per carton 2. 500pcs per pp bag, 12bags per carton 3.1000pcs per pp bag, 6 bags per carton Carton size: 41 cm x 28 cm x17 cm
|
Pre sales service:
1.Free sample services
Our factory always provides high quality free samples to customers for the evaluation of quality or test.
2.Customize services
Customers' ideas and designs are welcome. If you have any thought about products in your mind,just tell
us, we will help you to make your idea come true.
3.The third party inspection
The third party inspection is accepted.
4.Provide OEM services.
After sales service:
1.Whenever you got a problem of the product you bought from us, you just need to give us a call or send
a email, we will give the best way to solve the problem.
2.We have service team for after sales service and technical support.
