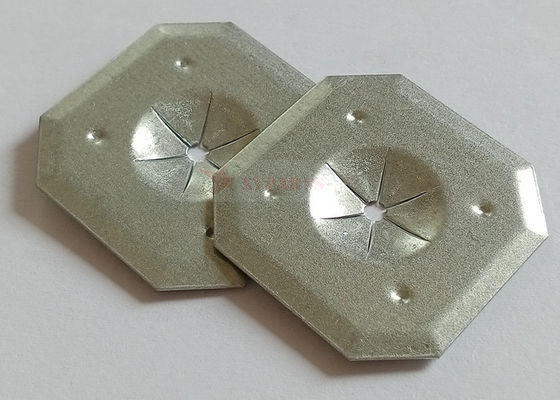

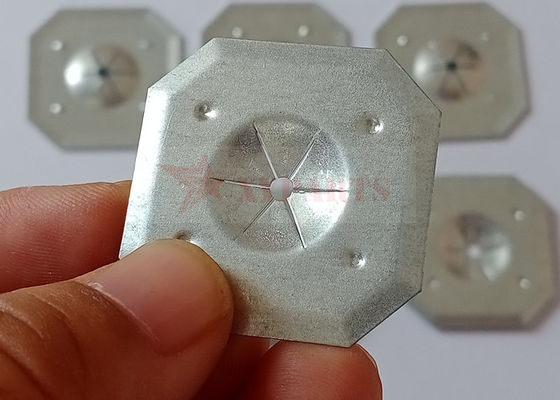

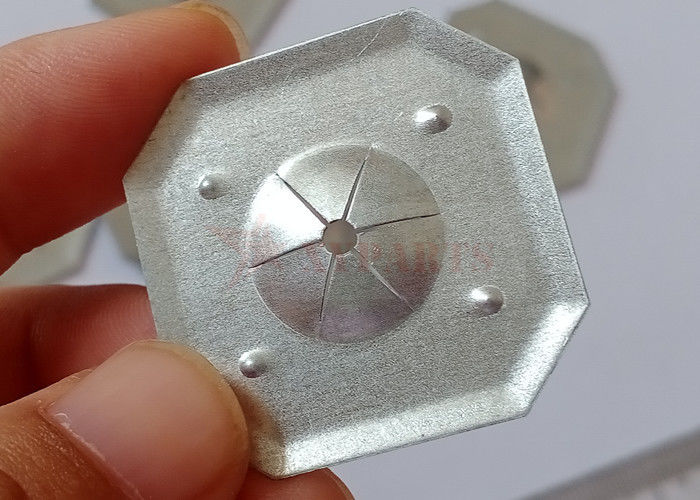

32mm Square Insulation Speed Clips Galvanized Steel Used For Commercial Insulation Industry
Product Description Of 32mm Square Insulation Speed Clips:
32mm square insulation speed clips are often used in conjunction with lacing anchors or CD weld pins or insulation hangers to fasten insulation in place. Its usage is very easy, simply press the insulation speed clips onto the pin up against the insulation until the desired position is reached and then clip off or bend over the remaining portion of the pin for a permanent attachment.
HUIHAO's 32mm square insulation speed clips are using high quality galvanized steel material or stainless steel material, it's very strong to firmly lock the insulation pins, and it's anti-rust.
If you are in need of 32mm square insulation speed clips, please feel free to ask me a price or sample, my email is cherry@huihaomesh.com
Thank you for your time, and hope you have a nice day.
| material |
thickness |
diameter |
usage |
| galvanized steel |
0.4mm |
32x32mm |
fix 2.7mm, 3.0mm, 3.4mm, 5.0mm etc. pins |
 |
Similar Products Of 32mm Square Insulation Speed Clips:
1. Insulation speed clips for metal studs are mainly made of stainless steel or galvanized steel or high hardness aluminum material.
2. Insulation speed clips for metal studs could be round or square type, the choice between round or square is basically a matter of personal preference.
3. Insulation speed clips for metal studs also could with dome caps, dome caps are designed to be used where appearance and safety are factors when installing insulation.
4. Some styles of speed clips are made with a beveled edge to prevent the washer from cutting into the insulation facing.
| Item |
Self Locking Washers, Insulation Speed Clips |
| Manufacture |
Huihao Hardware Mesh Product Limited |
| Material |
Galvanized Steel Or Stainless Steel Or Aluminum |
| Surface Finish |
Galvanized or polish or while/black color coating |
| Type |
Round Or Square Or Dome Capped |
| Size |
22mm, 25mm, 30mm, 32mm, 38mm, 40mm, 50mm, 60mm, 63.5mm etc, |
| Thickness |
0.4mm, 0.5mm, 0.6mm |
|
Usage
|
Used to fasten perforated insulation hangers, self-adhesive insulation hangers, cd weld pins, lacing anchors etc.
|
|
Item: Insulation Speed Clips
Material: Galvanized steel or stainless steel or aluminum
Surface Finish: Galvanized or polish or white/black color coating
Type: Round Or Square
Size: 25mm, 30mm, 32mm, 35mm, 38mm, 40mm, 50mm, 60mm, 63.5mm etc.
Thickness: 0.4mm, 0.5mm, 0.6mm
|
|
Item: Insulation Speed Clips With Dome Caps
Cap Material: Galvanized steel or stainless steel or aluminum or plastic
Insert Material: Galvanized steel or stainless steel
Surface Finish: Galvanized or polish or color coating
Size: 22mm, 28mm, 30mm, 32mm, 38mm, 40mm etc.
Insert Washer Thickness: 0.4mm
|
Application Of 32mm Square Insulation Speed Clips:
1. Prepare insulation blanket
2. Press lacing anchors through blanket
3. Secure lacing anchors with square insulation speed clips
4. Bend on clip-off spindle
5. Apply insulation blanket
6. Secure blanket by lacing through hooks with lacing wire
Package Of The Insulation Speed Clips:
1. 250 pcs/ 500 pcs/1000 pcs per bag
2. 10 bags/ 8 bags per carton
3. 48 cartons per wooden pallet
4. or as your request
