Product Details:
|
| Name: | Ring Mesh Closure Curtain | Material: | 7mm Stainless Steel 316 Round Rings |
|---|---|---|---|
| Max Length: | 16 Meters Length | Weight: | 3 Kgs Per M2 |
| Closure Fixing Parts: | Rod, Track, Screw, Anchor | Finished: | PVD, PLATING |
| High Light: | titanium plating ringmesh chainmail,stainless steel 316 ringmesh chainmail |
||

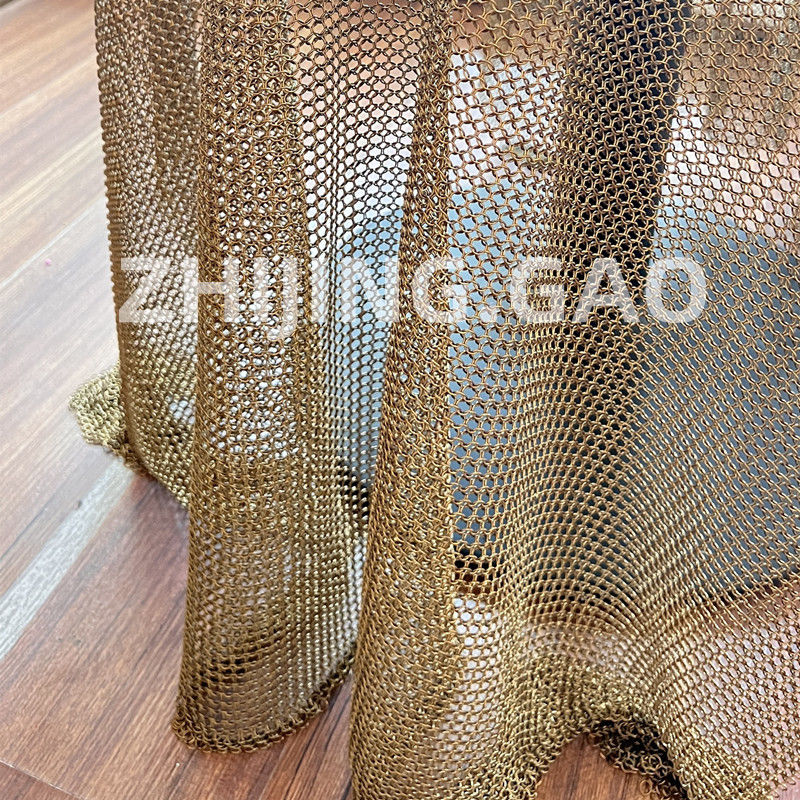

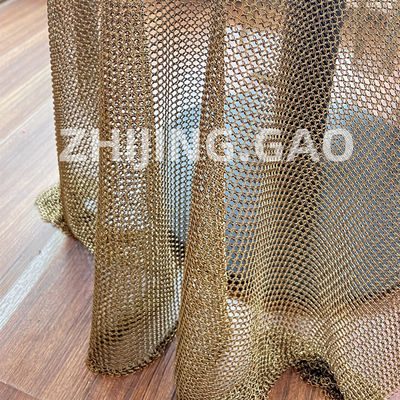

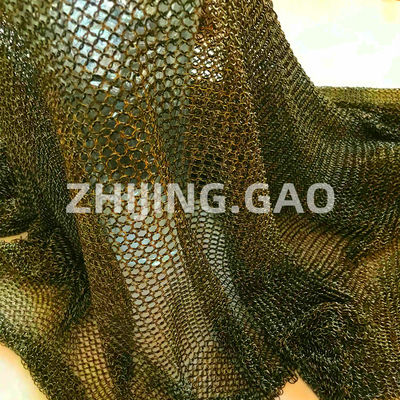

1.Welded Ring Mesh Closure Curtain also know as chainmail metal mesh curtain, it's mainly made of stainless steel 304 material, then electroplated into different colors, like gold, copper, bronze, brass etc.
2.Welded ring mesh closure curtains are consisted of individually welded stainless steel rings.
3.ring mesh closure both has the softness character of traditional curtains and has the metal's characters: easy install, easy maintaince, anti-corrosion, unigue metallic gloss etc.With these characters, ring mesh closure could be widely used indoors and outdoors as a room divider, curtains or covering of the outer facade.
4.Advantage of these RING MESH closures CURTAIN.
The variable shaping of the floor plan, which also allows round and angular or completely closed shapes. In addition, larger dimensions of up to 50 m in length and up to 10 m in height can also be designed. For security closures, the ring mesh closures can also be delivered in the resistance class RC 2.
| TYPE | ring size | material | color | treatment |
| weld rings | 0.53mmx3.81mm | stainless steel 304 /316 | silver, gold | Titanium Plating |
| weld rings | 0.8mmx7mm | stainless steel 304/ 316 | silver gold | Titanium Plating |
|
Ring mesh closure for Space divider.
• Glass laminated wire. • Sunshade screen. • Security door.
|
|
|
Ring mesh closure for Wire mesh facades.
|
| Term | Type | Material | Wire diameter | Outer diameter | Weight/m2 |
| XY-SS-100 | Non-welding | Stainless steel | 1.0mm | 8.00mm | 4.7kgs |
| XY-MS-100 | Non-welding | Mild steel | 1.0mm | 8.00mm | 4.6kgs |
| XY-SS-120 | Non-welding | Stainless steel | 1.2mm | 10mm | 4.8kgs |
| XY-CS-120 | Non-welding | Mild steel | 1.2mm | 10mm | 5.5kgs |
| XY-SS-150 | Non-welding | Stainless steel | 1.5mm | 15mm | 4.8kgs |
| XY-CO-150 | Non-welding | Mild steel | 1.5mm | 15mm | 5.5kgs |
| XY-SS-200 | Non-welding | Stainless steel | 2.0mm | 20mm | 6.8kgs |
| XY-CO-200 | Non-welding | Mild steel | 2.0mm | 20mm | 7.8kgs |
