Product Details:
|
| Name: | Silver Color Mesh Curtain | Material: | Stainless Steel Rings |
|---|---|---|---|
| Ring Size: | 3.81 Mm | Wire Dia: | 0.53 Mm |
| Max Length: | 16 Meters | Advice Drop: | Less Than 4 Meters |

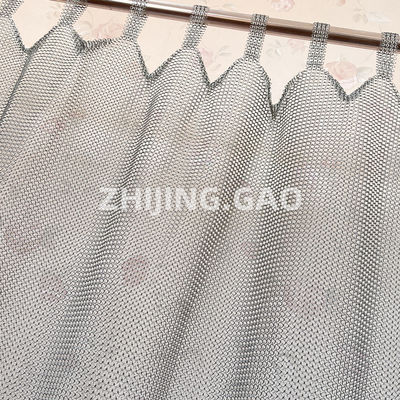

| High Light: | 7mm ring mesh curtain,silver tab top ring mesh curtain |
||
1.ring mesh curtain is made of stainless steel weld type round rings, and with different hanging type to design the install system.
2.ring mesh curtain Min. / Max. Dimensions :
Diameter D min. = 3'000 mm D max. = 8'000 mm
Hight H min. = 500 mm H max. = 4'500 mm
Length L min. = 1‘500 mm L max. = 25‘000 mm
3.ring size type: 0.53mmx3.81mm , 0.8mm x 7mm
easy install: we are according to your request to design the install system. due to the ring mesh curtain Is flexible.
easy maintaince: ring mesh curtain tend to shed dust. An occasional brushing or dusting will suffice.Stains wash off with mild soap and wate
anti-corrosion: we choose stainless steel 304/ 316 material; yo make ring mesh curtain.
unigue metallic gloss:because of the material is metal with coior finished
| Material | wire diameter | ring size | weight/m2 | curtain size |
| stainless steel 304 | 0.53mm | 3.81mm | 3.3kgs |
2.3m x1.5m 3.2m x2m and others |
| stainless steel 316 | 0.53mm | 3.81mm | ||
| stainless steel 304 | 0.8mm | 7mm | 3.5kgs | |
| stainless steel 316 | 0.8mm | 7mm |
>>> Welded type metal ring mesh
| Material | Wire Dia | Ring Dia | Weigh | Finish |
| Stainless steel | 0.53mm | 3.81mm | 3.2kgs/M2 | polished, electroplating, antique |
| Stainless steel | 0.8mm | 7.0mm | 2.8kgs/M2 | polished, electroplating, antique |
| Stainless steel | 1.5mm | 15mm | 4.8kgs/M2 | polished, electroplating, antique |
| Copper/Brass | 1.5mm | 15mm | 5.5kgs/M2 | antique colors |
| Stainless Steel | 2.0mm | 20mm | 6.8kgs/M2 | polished, electroplating, antique |
| Copper/Brass | 2.0mm | 20mm | 7.8kgs/M2 | antique colors |
>>> Non welded type metal ring mesh
| Material | Wire Dia | Ring Dia | Weigh | Finish |
| Stainless steel | 1.0mm | 8mm | 4.7kgs/M2 | polished, electroplating, antique |
| Mild Steel | 1.0mm | 8mm | 4.6kgs/M2 | polished, electroplating, antique |
| Stainless Steel | 1.2mm | 10mm | 4.8kgs/M2 | polished, electroplating, antique |
| Copper/Brass | 1.2mm | 10mm | 5.5kgs/M2 | antique colors |
| Stainless Steel | 1.5mm | 15mm | 4.8kgs/M2 | polished, electroplating, antique |
| Copper/Brass | 1.5mm | 15mm | 5.5kgs/M2 | antique colors |
| Stainless Steel | 2.0mm | 20mm | 6.8kgs/M2 | polished, electroplating, antique |
