12 Ga Galvanized Steel Perforated Insulation Hangers For Air System

12 Ga Galvanized Steel Perforated Insulation Hangers For Air System
12 Ga Galvanized Steel Perforated Insulation Hangers For Air System
12 Ga Galvanized Steel Perforated Insulation Hangers For Air System 12 Ga Galvanized Steel Perforated Insulation Hangers For Air System 12 Ga Galvanized Steel Perforated Insulation Hangers For Air System 12 Ga Galvanized Steel Perforated Insulation Hangers For Air System

Large Image :  12 Ga Galvanized Steel Perforated Insulation Hangers For Air System

Product Details:
Place of Origin: China
Brand Name: Huihao
Certification: ISO9001
Model Number: Self Adhesive Insulation Pins
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS
Price: USD0.04-0.12/pc
Packaging Details: Self Adhesive Insulation Pins packing details:500pcs per carton, carton size 28cm x29cm x31xm or to be your request
Delivery Time: 15 days after payment
Payment Terms: L/C,T/T
Supply Ability: 300000pcs per 15 days
Contact Now

12 Ga Galvanized Steel Perforated Insulation Hangers For Air System

Description
Name: 12Ga Perforated Base Pins Material: Mild Steel Or Stainless Steel
Base Size: 2X2'' In Square Shape Base Type: With Round Perforated Holes
Base Thickness: 0.5mm In Common Pin Dia: 12ga As Standard
Pin Length: 1" To 12" Application: Fixing Rock Wool On Wall
Highlight:

12 ga self stick insulation hangers

,

galvanized steel self stick insulation hangers

,

perforated self adhesive insulation hangers

12 Ga Galvanized Steel Perforated Insulation Hangers For Air System
Product Specifications
Attribute Value
Name 12Ga perforated base pins
Material Mild steel or Stainless steel
Base Size 2X2'' in square shape
Base type With round perforated holes
Base Thickness 0.5mm in common
Pin Dia 12ga as standard
Pin Length 1" to 12"
Application Fixing rock wool on wall
Product Description

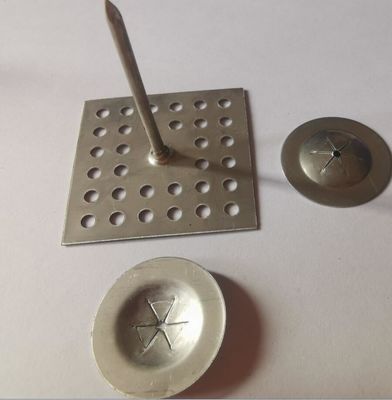

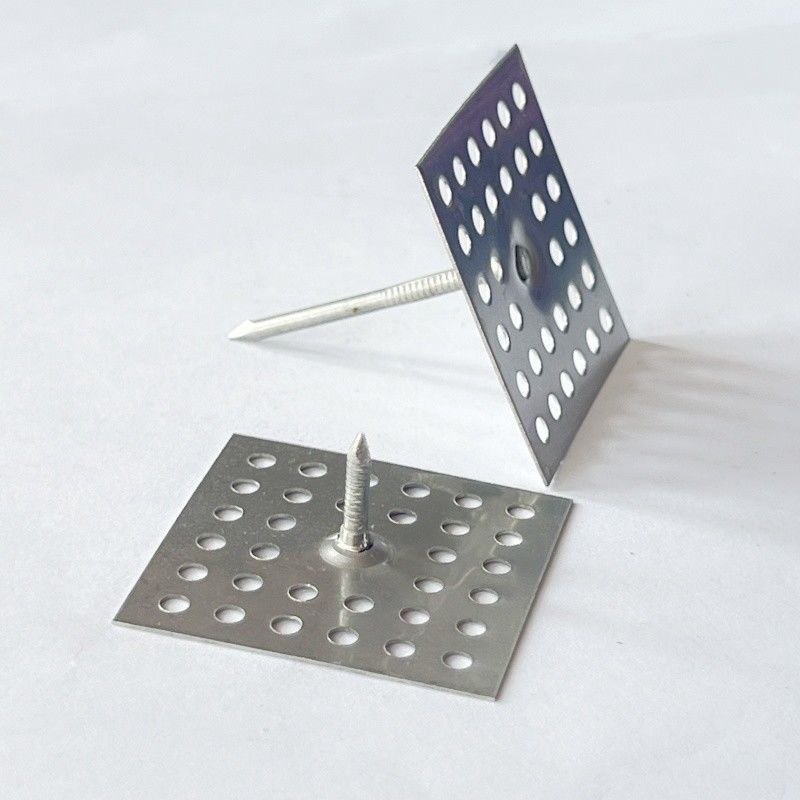

Perforated base hangers, also known as perforated base insulation pins, consist of a square perforated base and metal pins/nails. These hangers are designed for securing various insulation blankets or boards in HVAC systems.

Product Feature Specification
Material Galvanized steel
Pin diameter 12Ga, 10ga, etc
Pin length 1''-10'' (customizable)
Base type Perforated base with round hole
Base thickness 0.4-0.7mm
Base size 2'' in square
Packing 1000 sets/500 sets/250 sets per carton
Fixed parts Square or round speed clips
Application AIR/HVAC system
Installation Instructions

Perforated base hangers are used to connect the insulating layer with a general-purpose adhesive to masonry and other sound insulation materials. Before applying the adhesive:

  • Ensure the surface is clean and dry
  • Note that some protective coatings may not be compatible with adhesives
  • Perform a test bond before full application

After installing the pin, pierce the insulating layer on the spindle and fix it with a speed clip.

Fixed Parts Specifications

Speed clips are available in square and round shapes:

Feature Specification
Material Galvanized steel, aluminum, stainless steel
Shape Round or square
Size 25mm, 32mm, 38mm (custom sizes available for large orders)
12 Ga Galvanized Steel Perforated Insulation Hangers For Air System 0

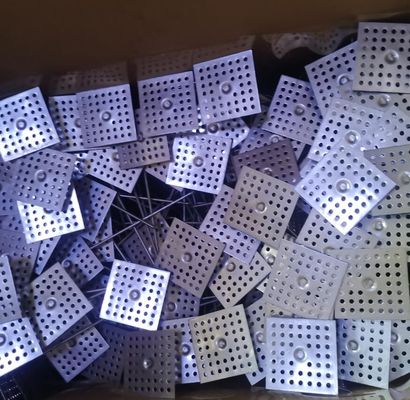

Shipping & Packaging

Delivery method: By express (DHL/FedEx/TNT) for small orders or samples; by sea for large orders.

Packing: 250 sets/500 sets/1000 sets per carton (custom packaging available).

12 Ga Galvanized Steel Perforated Insulation Hangers For Air System 1

For pricing inquiries or samples, please contact:

Email: david@huihaomesh.com

WhatsApp: 86-18732199987
