200mm Galvanized Steel Self Stick Insulation Hangers For Hvac Ductwork

Large Image : 200mm Galvanized Steel Self Stick Insulation Hangers For Hvac Ductwork

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO
Certification:	ISO9001-2015
Model Number:	Self-stick Insulation Hangers

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pcs
Packaging Details:	500pcs per carton, 48 cartons per pallet,
Delivery Time:	10 work days
Payment Terms:	L/C, T/T,
Supply Ability:	10000 pcs oer hour

Contact Now

200mm Galvanized Steel Self Stick Insulation Hangers For Hvac Ductwork

Description

Name:	Self-stick Insulation Hangers Used For HVAC Ductwork	Brand:	Huihao Custom
Material:	Galvanized Steel Or Stainless Steel	Base Size:	50x50mm
Product Customization:	Support	Pin Diameter:	2.7mm As Standard
Samples:	Support	Pin Length:	38mm-230mm In Standard
Highlight:	200mm self stick insulation hangers , galvanized steel self stick insulation hangers , hvac ductwork self adhesive insulation hangers

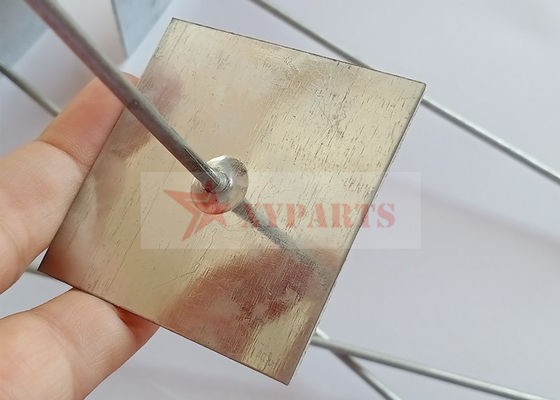

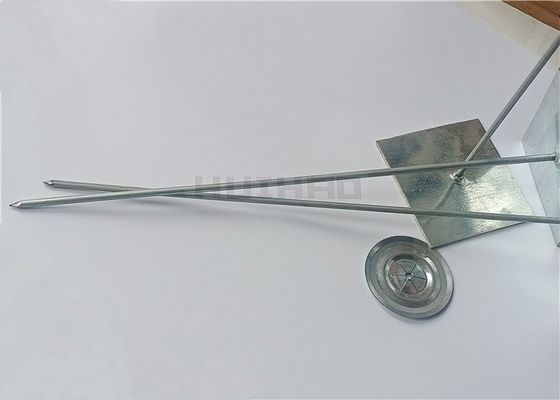

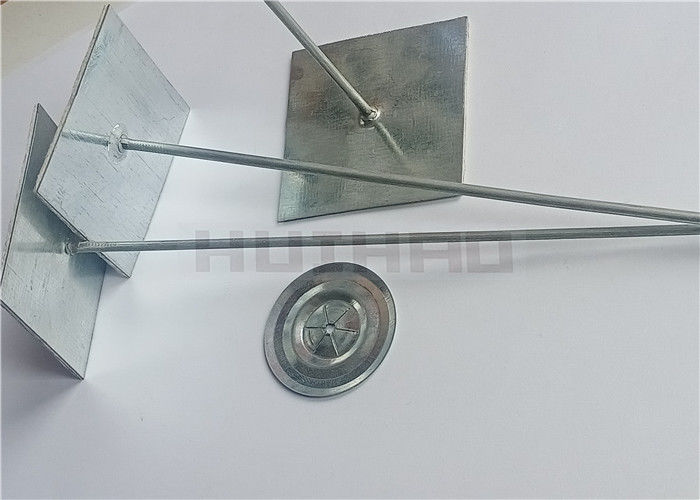

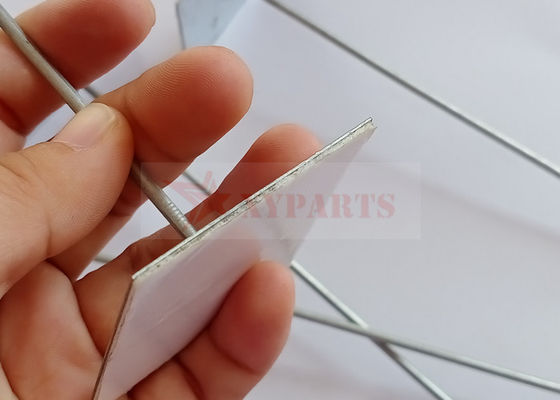

200mm Galvanized Steel Self-stick Insulation Hangers Used For HVAC Ductwork

Quick Details Of The 200mm Galvanized Steel Self-stick Insulation Hangers:

Self-stick insulation hangers are widely used for fiberglass duct wrap on sheet metal

HVAC ductwork.

The self-stick insulation hangers could fasten the insulation materials to sheet metal quickly

and easily. There is a foam adhesive on the bottom of the self-stick insulation hangers which

will be revealed when the wax release paper is removed.

Once the insulation material is pierced onto the self-stick insulation hangers, a locking washer

or a dome cap washer is needed to hold the insulation material in place.

Brand	HUIHAO CUSTOM
Name	200mm Galvanized Steel Self-stick Insulation Hangers Used For HVAC Ductwork
Material	Galvanized Steel
Base size	50x50mm
Pin diameter	3.0mm
Pin length	200mm

Specifications Of The Self-stick Insulation Hangers:

Popular sizes of the self-stick insulation hangers:
material	base size	pin diameter	pin length	fixed parts
pin material: anneaded steel wire anneaded stainless steel wire aluminum wire base material: hardness steel stainless steel	base size: 50x50mm base thickness: 0.4-0.5 mm adhesive thickness: 1mm base type: double adhesive liner: siliconized paper	2.7mm	38mm	self locking washer or doom cap washer
		2.7mm	45mm
		2.7mm	55mm
		2.7mm	62mm
		2.7mm	90mm
		2.7mm,3.0mm	114mm
		2.7mm,3.0mm	120mm
		2.7mm,3.0mm	140mm
		2.7mm,3.0mm	160mm
		2.7mm,3.0mm	180mm
		2.7mm,3.0mm	203mm
		2.7mm,3.0mm	230mm

Self locking washers of the self-stick insulation hangers
Type	Size	Material	Ceter hole
round	25mm 30mm 32mm 38mm 40mm 50mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	32mmx32mm 29mmx31mm 40mmx40mm 50mmx50mm 60mmx60mm 65mmx65mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	22mm 30mm 32mm 38mm 40mm 50mm	galvanized steel, stainless steel, aluminum	2mm-5mm

Advantages Of The Self-stick Insulation Hangers:

1. The pins are riveted on the base of the self-stick insulation pins, it's very strong.

2. The self adhesive tape on the base botom of the self-stick insulation pins is very sticky.

3. The self locking washers are very hard, it could lock the self-stick insulation pins very firmly.

Package Details Of The Self-stick Insulation Hangers:

PIN LENGTH	CARTON SIZE	QTY/CARTON
38MM	41CMX28CMX17CM	1000PCS
50MM-65MM	41CMX28CMX17CM	500PCS
70MM-84MM	30CMX28CMX29CM	500PCS
90MM-120MM	30CMX30CMX30CM	500PCS
130MM-160MM	30CMX30CMX35CM	500PCS
170MM-203MM	30CMX30CMX28CM	250PCS
OTHERS	SUPPORT CUSTOM	SUPPORT CUSTOM

Huihao Hardware Mesh Product Limited.

1. We choose the best quality materials for making insulation fasteners
2. We do copper plating, zinc coated and phosphating pretreatment for the raw material using drawing machine.
3. We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4. We use the automatic riveting machine to install .
5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea.
6. Short delivery time because of our reasonable production flow management.
