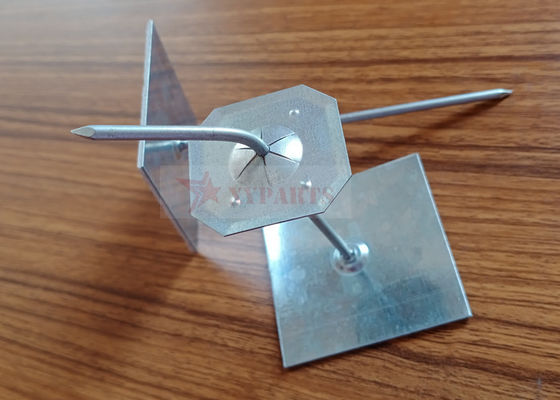

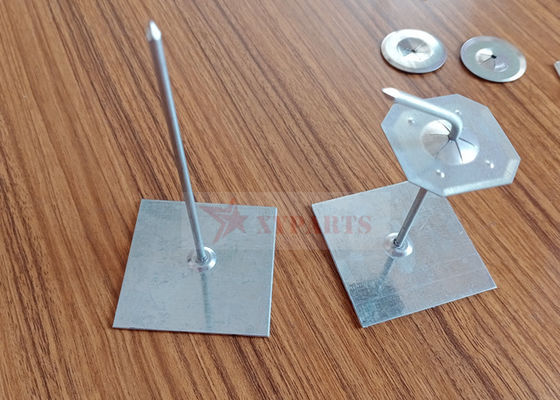

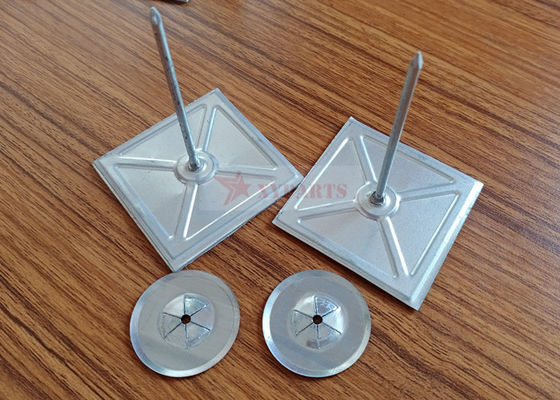

2.5" Self Adhesive Insulation Fastener Pins For Fiberglass Duct Wrap On Sheet Metal

Self Adhesive Insulation Fastener Pins are popular due to their fast and quick install. Simply remove the release paper and stick the pin onto the sheet metal. Make sure to apply a firm and even pressure onto the base to insure a proper bond.

• Firm conjunction between bases and pins
• Pins are soft, easy bending over
• Porous base designed for permeating glue easily
• Length tolerance ±0.1mm

1. The pins are riveted on the base of the self adhesive insulation fastener pins, it's very strong.
2. The self adhesive tape on the base bottom of the self adhesive insulation fastener pins is very sticky.
3. The self locking washers are very hard, it could lock the self adhesive insulation fastener pins very firmly.

1. Self adhesive insulation fastener pins can only be stuck on clean, dry and smooth surface.
2. Cleaning the surface is recommended, remove any duct, loose paint, oil etc.
3. Peel off the backing paper.
4. Place the self adhesive insulation fastener pins in the required position.
5. Press the base against the cleaning surface.
6. Impale the insulation over the point of the self adhesive insulation fastener pins.
7. Secure the insulation with the self locking washers.
8. Bend or remove excess pins.

• We choose the best quality materials for making insulation fasteners
• We do copper plating, zinc coated and phosphating pretreatment for the raw material
• We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
• We use the automatic riveting machine to install.
• After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea.
• Short delivery time because of our reasonable production flow management.
