4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board

4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board
4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board
4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board 4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board 4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board 4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board 4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board

Large Image :  4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board

Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO9001-2015
Model Number: Adhesive Base Insulation Pins
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Packaging Details: 500pcs per carton, 48 cartons per pallet, or as your requirement
Delivery Time: 10 work days
Payment Terms: L/C,T/T,
Supply Ability: 10000 pcs oer hour
Contact Now

4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board

Description
Name: Adhesive Base Insulation Pins Brand: Huihao Custom
Material: Galvanized Steel Or Stainless Steel Base Size: 50x50mm
Product Customization: Support Pin Diameter: 2.7mm As Standard
Samples: Support Pin Length: 38mm-230mm In Standard
Highlight:

4-1/2" self stick insulation pins

,

galvanized self stick insulation pins

,

4-1/2" insulation pins self adhesive

4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board
Product Specifications
Attribute Value
Name Adhesive Base Insulation Pins
Brand Huihao Custom
Material Galvanized steel or stainless steel
Base Size 50x50mm
Product Customization Support
Pin Diameter 2.7mm as standard
Samples Support
Pin Length 38mm-230mm in standard
Product Overview

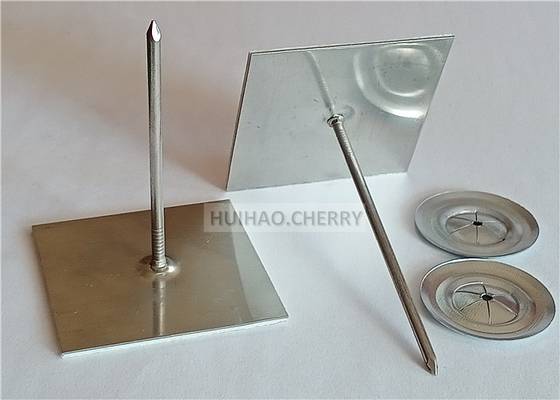

Adhesive Base Insulation Pins are specialized fasteners designed for securing insulation materials, particularly for duct insulation applications. Simply peel the protective tape and press onto the desired surface. Once insulation material is pierced onto the pins, secure it with a self-locking washer or dome cap washer.

Key Specifications:

Common Length 1 1/4", 1 1/2", 1 5/8", 2", 2 1/2", 3", 3 1/2", 4 1/2"
Material Pin: Stainless Steel, Aluminum, Galvanized Steel
Base: High Hardness Galvanized Steel, Stainless steel
Surface Finish Polish, Galvanized coating
Features
  • Bases are tight with pins
  • Pins are soft and easy to bend
  • Double-faced adhesive offers excellent adhesion
Supply Capability 10000 pcs/hour
Application Instructions
  1. Ensure surface is clean, dry and smooth
  2. Remove any dust, loose paint, or oil
  3. Peel off the backing paper
  4. Position pins as required
  5. Press base firmly against surface
  6. Impale insulation over pin points
  7. Secure with self-locking washers
  8. Bend or remove excess pins
4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board 0 4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board 1
Compatible Self-Locking Washers
Type Size Material Center Hole
Round 25mm, 30mm, 32mm, 38mm Galvanized steel, stainless steel, aluminum 2mm-5mm
Square 32mmx32mm, 29mmx31mm, 38mmx38mm, 50mmx50mm, 65mmx65mm Galvanized steel, stainless steel, aluminum 2mm-5mm
Dome Cap 30mm, 32mm, 38mm, 40mm, 50mm Galvanized steel, stainless steel, aluminum 2mm-5mm
4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board 2
Product Features
  • Application-specific design
  • Corrosion resistance
  • High efficiency installation
  • Eco-friendly product
  • Weather proof construction
  • Long service life
  • Sturdy construction
Key Advantages
  1. Pins are securely riveted to base for maximum strength
  2. High-tack adhesive tape ensures strong bonding
  3. Self-locking washers provide firm, reliable fastening

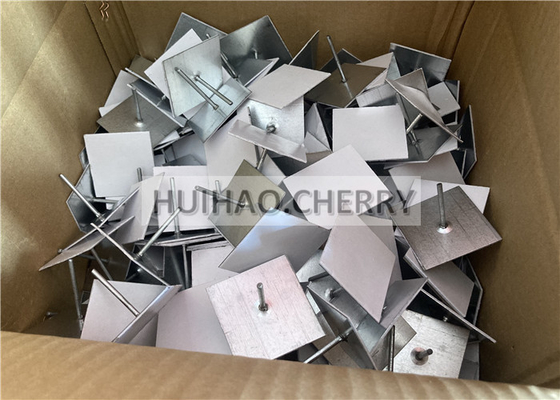

Packaging Information
Pin Length Carton Size Quantity/Carton
38MM 41CMX28CMX17CM 1000PCS
50MM-65MM 41CMX28CMX17CM 500PCS
70MM-84MM 30CMX28CMX29CM 500PCS
90MM-120MM 30CMX30CMX30CM 500PCS
130MM-160MM 30CMX30CMX35CM 500PCS
170MM-203MM 30CMX30CMX28CM 250PCS
OTHERS SUPPORT CUSTOM
4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board 3 4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board 4
Manufacturing Quality
  • Premium quality materials selection
  • Copper plating, zinc coating and phosphating pretreatment
  • Advanced cold forging machines ensure mechanical properties meet industry standards
  • Automated riveting machines for consistent quality
  • Rust prevention treatment suitable for marine transport
  • Efficient production flow for short delivery times
4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board 5 4-1/2" Adhesive Base Insulation Pins Galvanized Steel For Fastening Duct Wrap Or Insulation Board 6
