114mm Length Stick On Insulation Pins Used For Air Conditioning HVAC Systems

Quick Details Of The 114mm Stick On Insulation Pins:

Stick On Insulation Pins are widely used in industries like Heating, Ventilation and Air Conditioning (HVAC) Systems. They are used in external thermal insulation and internal acoustic liner onto the duct surface.

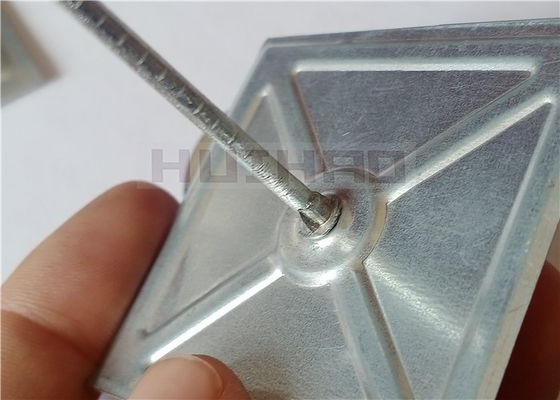

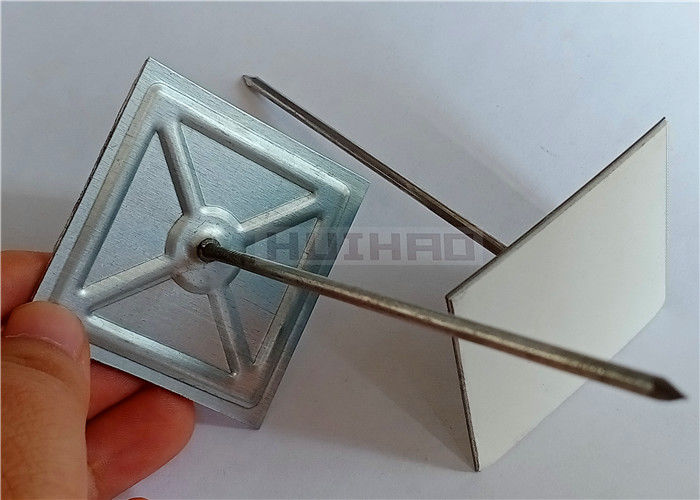

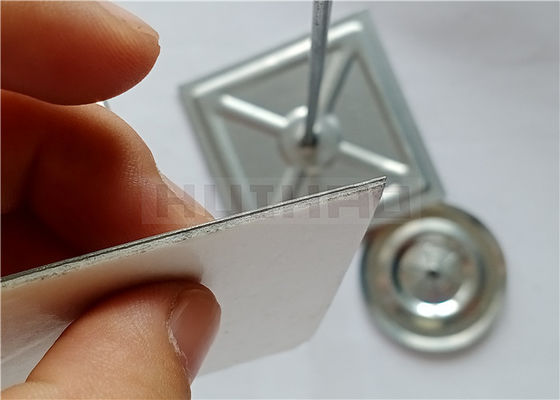

The pin has a sticker backing to make fixing easier. They also have a unique easy- peel adhesive backing design so that there isn’t any fumbling

with the release paper.

Stick On Insulation Pins will be used together with insulation self locking washers or dome caps, we have various types of self locking washers, and dome caps available for you to choose.

Huihao Hardware Mesh Product Limited is a professional manufacture for insulation pins and washers, our main products include: perforated insulation pins & self adhesive insulation pins for wall and ceiling insulation, lacing anchors & quilting pins & lacing whashers for the fabrication of removable insulation blanket, cd weld pins for marine insulaiton, cup head weld pins for ducting insulation, and kinds of metal fixing washers for the fixing of tile backer board, roofing insulaitn, wire lath, and plaster etc.

Our insulation pins and washers are with good quality and price, we choose high standard raw material, have fully automatic production line, and strict quality control system, and for the insulation pins and washers, the material, the size, the package all is customizable according to your special need.

If you are in need of insulation pins and washers, please feel free to ask me a price or sample, my email is cherry@huihaomesh.com

Specifications Of The Stick On Insulation Pins:

Composition: Pin: The pin is made from 12 gauge annealed low carbon steel. (Available in copper coated, aluminum, or stainless steel.) Base: 2" x 2" (50x50mm) square plate made from glavanized steel. Adhesive foam: 1mm thick double sided foam with release paper.   Temperature range: 0ºF to 140ºF   Load limit: 2lbs per hanger   Available sizes: Lengths from 3/4" up to 10" (19mm-250mm)   Common length: 1-5/8": commonly used for 1-1/2" .75# fiberglass duct wrap 2-1/2": used for fiberglass duct wrap over 1-1/2" thick   Restrictions: 1. Do not use on metal buildings or ceilings where temperatures due to sunlight exposure may exceed 140ºF 2. Do not use on cement, wood, or painted surfaces 3. Must be used on clean dust-free surfaces. 4. Do not exceed spacing of 12" between hangers and 2lb load per hanger.

Huihao Hardware Mesh Product Limited.

1. We choose the best quality materials for making insulation fasteners 2. We do copper plating, zinc coated and phosphating pretreatment for the raw material  3. We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement. 4. We use the automatic riveting machine to install . 5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea. 6. Short delivery time because of our reasonable production flow management.
