Product Details:
|
| Product Name: | Self Adhesive Insulation Pins | Material: | MS, SS, ALU |
|---|---|---|---|
| Pin Diameter: | 10 Ga, 12ga, 14ga, 3mm | Length: | 19-300mm |
| Washer: | Round Or Square , Also Could Be Dome Caps | Small Order: | Available |
| Customization: | Acceptable | Packing: | Box And Pallet |
| High Light: | 2.7*63mm insulation pins self adhesive,10 ga insulation pins self adhesive,2.7*63mm self stick insulation pins |
||

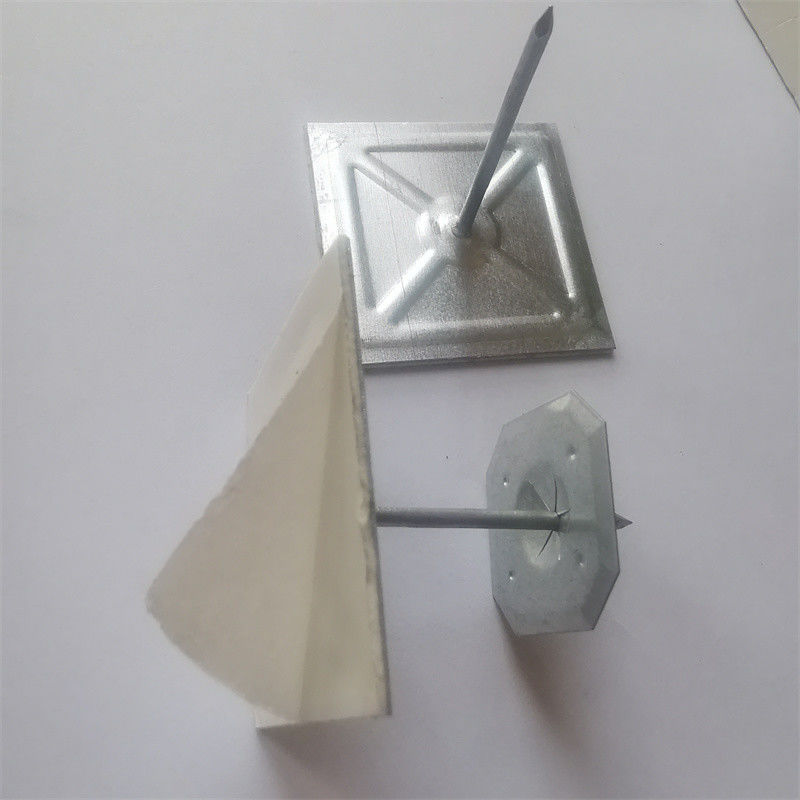

The self-adhesive heat insulation pins is very familiar to the workers in the heat preservation construction of air conditioning duct. The bottom is stamped with metal plate,such as galvanized steel plate, aluminum plate, stainless steel plated, the nail is made of carbon steel wire, with foam on the back and high-strength glue. It has strong bearing capacity and is not easy to fall off. It is constructed from these three parts. Self adhesive heat preservation nail, also known as self-adhesive heat preservation nail, has many advantages. The nail tip is sharp, which is conducive to penetrating the heat preservation material and easy to bend. It takes no effort during construction. The nail seat is firm, with size, automatic production, material selection, and various specifications and materials
| Name |
self adhesive insulation pins |
| Material | Galvanized steel , stainless steel , aluminum |
| Pin diameter | 2.7mm,3.0mm in common , also could be customized |
| Pin length | 25-250mm , length could be customized |
| Adhesive thickness | 1mm |
| Base size | 50mm in square |
| Washers size | 30mm,38mm in common |
It is widely used for the thermal insulation construction of boilers, shopping malls, subways, schools, ships, flues, air ducts and environmental protection equipment in major power plants are indispensable fixed thermal insulation products
| Insulation Pins | Insulation accessories |

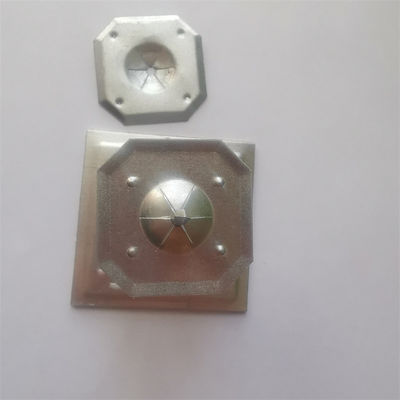

| Perforated base insulation hangers | Self locking washers |
| Self stick insulation pins | Dome cap washers |
| Lacing anchors | Lacing washers |
| CD weld insulation pins | Metal disc washers |
| Bimeal weld pins | Lacing hooks |
| Cup head weld pins | Lacing rings(O-type & D-Type) |
| Metal plugs | Solar Panel Clips |
| Quilting pins | Customized insulaton fasteners |
