Product Details:
|
| Name: | Self Stick Insulation Hanger | Application: | Fixing Insulation System |
|---|---|---|---|
| Hanger Length: | 25mm - 280mm | Hanger Dia: | 2.7mm , 3mm |
| Base Size: | 50 Mm X 50 Mm | Install Part: | Self Locking Washer |
| High Light: | glass wool self stick insulation hangers,galvanized steel self adhesive insulation hangers,glass wool self stick insulation hangers |
||

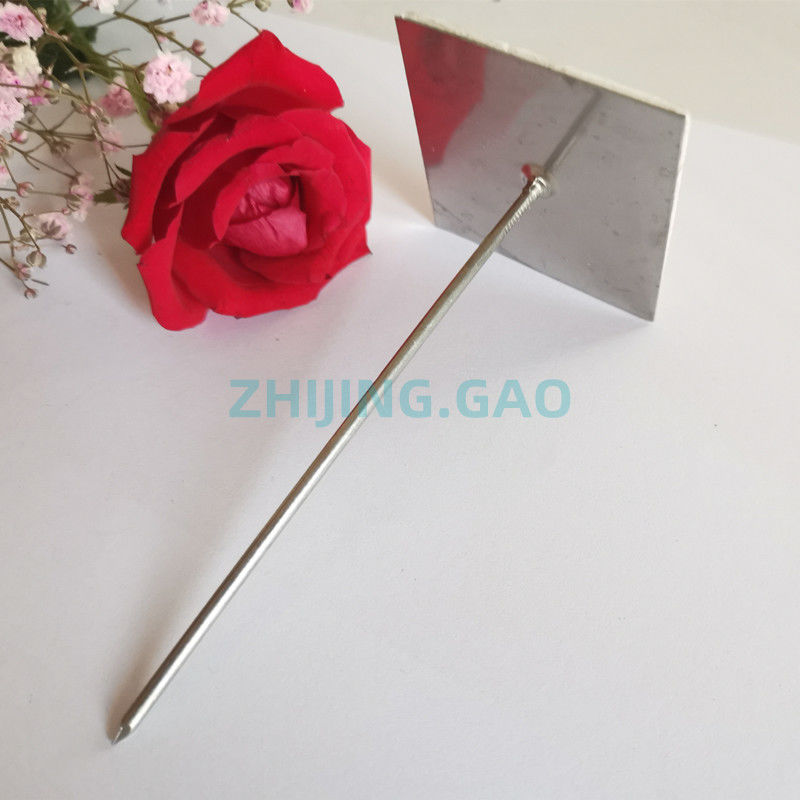

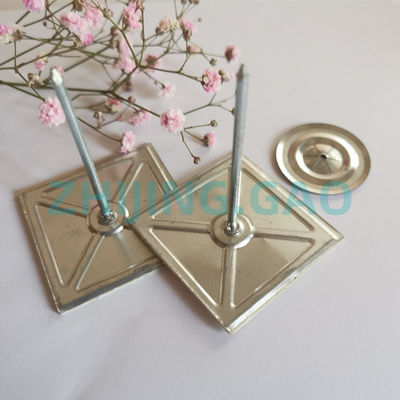

Self Stick Insulation Hanger easily install any type of insulation up to 3.5" thick to air ducts, metal buildings, concrete foundations - even to the underside of wooden roofs. Insulation Hangers are perfect for installing fiberglass or rubber insulation blankets or polystyrene board. Insulation Hangers have a sticker backing to make placing easier. They also have a unique Easy-Peel adhesive backing design so that there isn't any fumbling with the release paper.
| base | material | galvanized steel, stainless steel |
| dimensions | 2" x 2" ( 50mm x 50mm ) | |
| thinkness | 28 GA ( 0.04 MM ) | |
| Shank | material | anneaded steel wire, anneaded stianless steel wire, aluminum 1011 grade |
| pin diameter | 12 ga ( 2.7 mm ) 3 mm | |
| length | 38 mm -280 mm | |
| Adhesive tape | Base | double-side foma E with white color |
| Coating | modifiled acrylate adhesive on both sides | |
| thickness | 1mm | |
| power ( FINAT -TM 1, On stainless steel , one side covered with 50 microns polyester film ) | ||
| 1 minute | > 18 N / 25 mm | |
| 20 minutes | tear | |
| 24 hours | tear | |
| shear strength ( FINAT -TM 1, On stainless steel , one side covered with 50 microns polyester film ) | ||
| 23℃ | > 150 hours | |
| 70℃ | > 1 hour | |
| fixing parts | material | galvanized steel, stainless steel, aluminum alloy |
| self locking washers | washer size | 30mm is standard, 15mm, 20mm, 25mm, 32mm, 38mm, 50mm, 65mm in popular |
| thickness | 0.4 mm / 0.7mm | |
| edge | bevelled | |
| ODM/OEM | xiangyi parts is can be your request to make finished, choose material and size | |
 |
| 1, clean the surface 2,Peel off backing 3, stick pin in place 4 ,pressure the pin 5, wait 15-20 minutes 6, Install insulation and secure with self locking washer |
|
|
Application: The average of 1-10 layers is 6pcs/m2, and the average of 11-20 layers is 7pcs/m2, 21-26, and 9pcs/m2. Any single block with an area greater than 0.1m2 must be anchored, depending on the shape and site conditions; the density of the anchor should be increased around the insulation pins of the sun, under the mouth, and around the edge of the hole. The distance is not more than 300mm, from the edge of the base. Not less than 60mm |
