Product Details:
|
| Name: | 230mm Insulation Pins | Pin Length: | 230mm |
|---|---|---|---|
| Pin Dia: | 2.7mm | Part: | Speed Clips |
| Tape Size: | 50mm X 50mm | Material: | Galvanized Steel |
| High Light: | adhesive stick pins for insulation,self adhesive pins for insulation,insulation pins self adhesive |
||

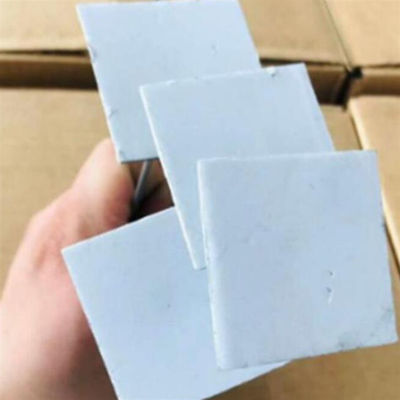

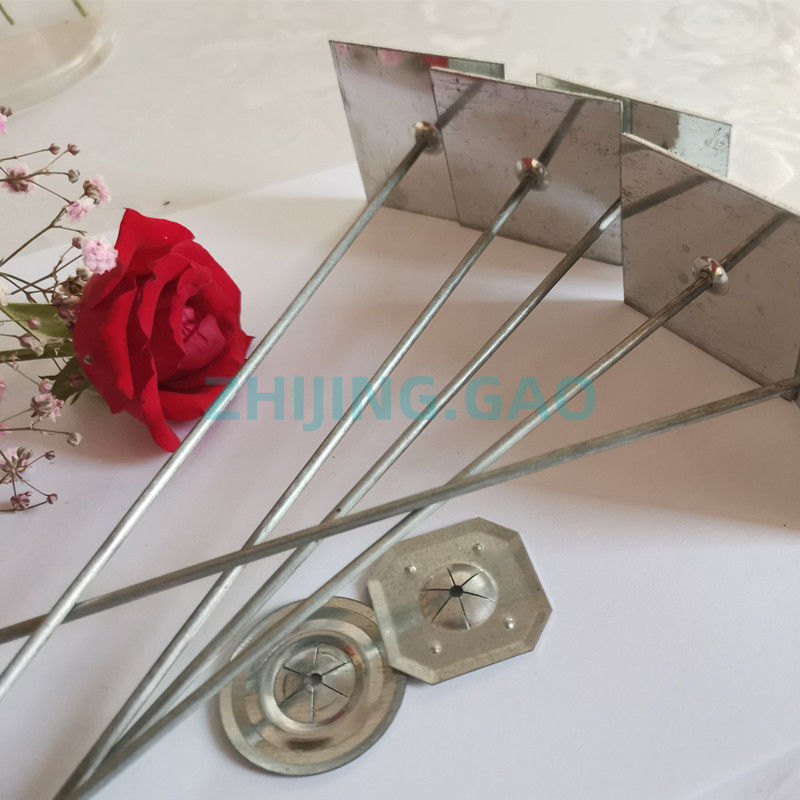

self stick pins is square metal sheet with a self stick base, the self stick base is made up from 2"×2" metal base with a double faced tape attached a metal nail, peel the release paper on the base and firmly press the pin to the place where need to install insulation, work with the self locking washers or Dome caps to fasten the insulation materials.
| modle | BASE TYPE | SUPPORT NAIL DIA | LENGTH OF NAILS |
| SQ-50-55 | 0.5MM X50MM | 2.7MM, 3MM | 55MM |
| SQ-50-63 | 0.5MM X50MM | 2.7MM, 3MM | 63MM |
| SQ-50-70 | 0.5MM X50MM | 2.7MM, 3MM | 70MM |
| SQ-50-90 | 0.5MM X50MM | 2.7MM, 3MM | 90MM |
| SQ-50-100 | 0.5MM X50MM | 2.7MM, 3MM | 100MM |
| SQ-50-110 | 0.5MM X50MM | 2.7MM, 3MM | 110MM |
| SQ-50-120 | 0.5MM X50MM | 2.7MM, 3MM | 120MM |
| SQ-50-130 | 0.5MM X50MM | 2.7MM, 3MM | 130MM |
| SQ-50-140 | 0.5MM X50MM | 2.7MM, 3MM | 140MM |
| SQ-50-160 | 0.5MM X50MM | 2.7MM, 3MM | 160MM |
| SQ-50-180 | 0.5MM X50MM | 2.7MM, 3MM | 180MM |
| SQ-50-203 | 0.5MM X50MM | 2.7MM, 3MM | 203MM |
| SQ-50-230 | 0.5MM X50MM | 2.7MM, 3MM | 230MM |
| SQ-50-250 | 0.5MM X50MM | 2.7MM, 3MM | 250MM |
| Adhesive | Base |
White, cross-linked, closed-cell polyethylene foam
|
| Coating | Modified acrylate adhesive on both sides | |
| Liner | Siliconized paper | |
| Thickness | 1 mm |
| Power (FINAT-TM 1, on stainless steel, one side covered with 50 microns polyester film) | |||
| 1 minute | >18 N/25 mm | ||
| 20 minutes | tear | ||
| 24 hours | tear | ||
|
Insulation pins and self locking speed clip is most popular in international market. We have owned a lot of customers from Europe, Australia, Middle East, Southeast Asia and North America.
|
