Product Details:
|
| Name: | Self Stick Insulation Pins | Tap Base: | 50 Mm X 50mm |
|---|---|---|---|
| Tap Type: | Double Adhesive | Length: | 38 Mm - 280 Mm |
| Pin Dia: | 12GA, | Fixing Part: | Self Locking Washer, Dome Cap Washer |
| High Light: | adhesive stick pins for insulation,self adhesive pins for insulation,insulation pins self adhesive |
||
Material of self stick pins:
Galvanised mild steel (PIN ADHESIVE MS)
Stainless steel (PIN ADHESIVE.SS)
Aluminium (PIN ADHESIVE.AL)
|
parts no. |
material |
Base size |
Pin diameter |
pin length |
fixed parts |
|
XY-50-38 |
pin material:
base material:
|
base size:
base thickness:
base type:
liner:
|
2.7mm |
38mm |
self locking washer doem cap washer |
|
XY-50-45 |
2.7mm |
45mm |
|||
|
XY-50-55 |
2.7mm |
55mm |
|||
|
XY-50-62 |
2.7mm |
62mm |
|||
|
XY-50-90 |
2.7mm |
90mm |
|||
|
XY-50-114 |
2.7mm,3.0mm |
114mm |
|||
|
XY-50-120 |
2.7mm,3.0mm |
120mm |
|||
|
XY-50-140 |
2.7mm,3.0mm |
140mm |
|||
|
XY-50-160 |
2.7mm,3.0mm |
160mm |
|||
|
XY-50-180 |
2.7mm,3.0mm |
180mm |
|||
|
XY-50-203 |
2.7mm,3.0mm |
203mm |
|||
|
XY-50-230 |
2.7mm,3.0mm |
230mm |
|
Adhesive |
Base |
White, cross-linked, closed-cell polyethylene foam |
|
Coating |
Modified acrylate adhesive on both sides |
|
|
Liner |
Siliconized paper |
|
|
Thickness |
1 mm |
|
|
Power (FINAT-TM 1, on stainless steel, one side covered with 50 microns polyester film) |
||
|
|
1 minute |
>18 N/25 mm |
|
20 minutes |
tear |
|
|
24 hours |
tear |
|
|
Shear strength (FINAT-TM 8, on stainless steel, one side covered with 50 micronspolyester film) |
||
|
|
23 °C |
>150 hours |
|
70 °C |
1 hour |
|

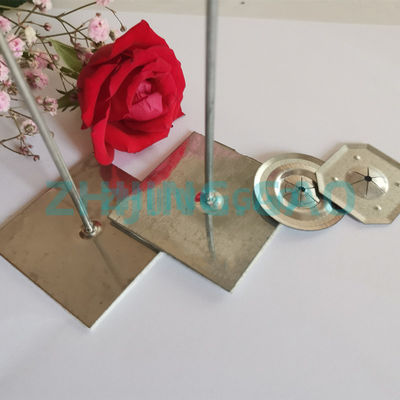

self stick insulation pins is also named self adhesive insulation pins. the self stick base is made up from 2"×2" metal base with a double faced tape attached a metal nail, peel the release paper on the base and firmly press the pin to the place where need to install insulation, work with the self locking washers or Dome caps to fasten the insulation materials.
square base self stick insulation pins that is both fast and easy to install.
Suitable for fixing all types of insulation to concrete, brick, stone or block base material.Insulation fastening solutions for concrete and masonry, suitable for insulation materials such as mineral wool, EPS, XPS and fibreglass.
