Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System

Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System
Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System
Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System

Large Image :  Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System

Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO9001-2015
Model Number: Self Stick Insulation Hangers
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Packaging Details: 500pcs per carton, 48 cartons per pallet, or as your requirement
Delivery Time: 10 work days
Payment Terms: L/C,T/T,
Supply Ability: 10000 pcs oer hour
Contact Now

Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System

Description
Name: Self Stick Insulation Hangers For HVAC System Brand: Huihao Custom
Material: Galvanized Steel Or Stainless Steel Base Size: 40x40mm, 50x50mm Etc.
Product Customization: Support Pin Diameter: 2.7mm As Standard
Samples: Support Pin Length: 18mm-230mm In Standard
Highlight:

2-1/2" Self Stick Insulation Hangers

,

Galvanized Steel Self Stick Insulation Hangers

,

HVAC System Self Stick Insulation Hangers

Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System
Product Specifications

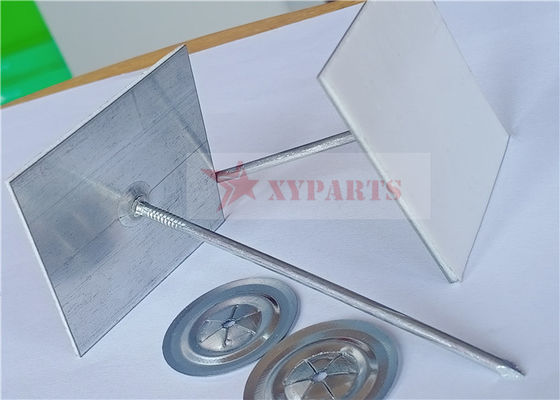

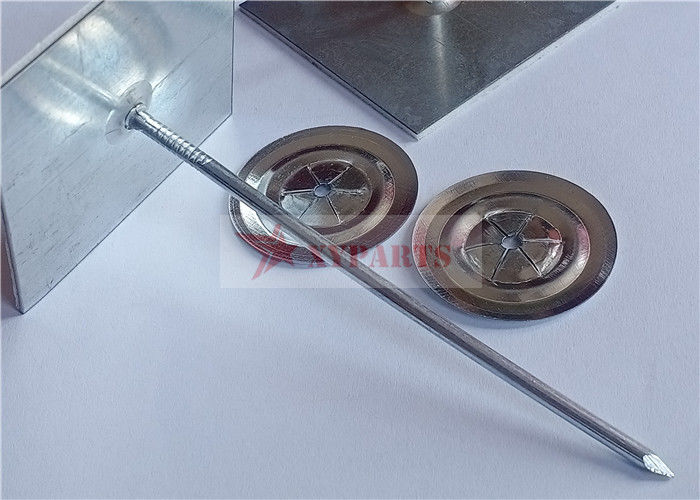

Self-stick insulation hangers are designed to fix efficiently insulation on smooth surfaces such as air ducts, attenuators, chambers and enclosures. Self stick insulation hanger consists of a pin, firmly riveted on a high quality self-adhesive base.

Self-stick insulation hangers made from HUIHAO are good quality and price, we choose high anti-corrosion galvanized steel or stainless steel or aluminum material and high sticky self-adhesive tape to make the self-stick insulation hangers, and we have fully automatic production line and strict quality control system to make sure the good quality and quick delivery of self-stick insulation hangers.

Whether you’re working on HVAC duct systems or other insulation tasks, the self-stick insulation hangers from Huihao company could make the insulation fastening process faster, cleaner, and more convenient.

Item Self Stick Insulation Hangers
Material Galvanized steel or stainless steel
Base size 50x50mm
Base thickness 0.4mm
Adhesive thickness 1.0mm
Pin diameter 2.7mm
Pin length 19-400mm
Accessories Various of Self Locking Washers
Samples Available
Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System 0



Advantages
  • The pins are riveted on the base of the self stick insulation hangers, it's very strong.
  • The self adhesive tape on the base bottom of the self stick insulation hangers is very sticky.
  • The self locking washers are very hard, it could lock the self stick insulation hangers very firmly.

 Detailed Images

Base Galvanized Steel Stainless Steel
Base Size 50 x 50 mm, 40x40mm
Base Thickness 0.4 mm (28 ga)
Pin Galvanized / Copper Plated Steel Stainless Steel Aluminum
Diameter 2.7 mm (12 ga), 3mm (11ga)
Length 19 to 400 mm (3/4" to 16") 25 to 400 mm (1" to 16") 45 to 165 mm (1-3/4" to 6-1/2")
Adhesive Thickness 1 mm (1/25")

Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System 1Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System 2

Technical Data

Polyethylene foam with aggressive pressure sensitive rubber resin adhesive.

  • Service Temperature: -40°C to +70°C
  • Highly Resistant to abrasion, corrosion and moisture
  • Confirms to European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
  • 10 Minutes 180 degree Peel Adhesion: 30 N/25mm
  • 500 Hour static shear (Stainless Steel): 0.8 kg/cm³
Installation Instructions
  1. Install at ambient temperatures above 10°C (preferably between 15 and 25°C)
  2. Surfaces should be clean and dry, free of dust, grease, oil and any other loose matter
  3. Remove the protective release paper, taking care not to touch the adhesive
  4. Place the self adhesive insulation pins in the required position and press the base against the surface to be insulated
  5. Insulation can be impaled immediately and firmly locked with fastening clips or washers, but maximum strength of adherence is achieved after 24 hours
  6. If necessary, cover the pin with a protective nylon cap
Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System 3
Package Details
PIN LENGTH CARTON SIZE QTY/CARTON
38MM 41CMX28CMX17CM 1000PCS
50MM-65MM 41CMX28CMX17CM 500PCS
70MM-84MM 30CMX28CMX29CM 500PCS
90MM-120MM 30CMX30CMX30CM 500PCS
130MM-160MM 30CMX30CMX35CM 500PCS
170MM-203MM 30CMX30CMX28CM 250PCS
OTHERS SUPPORT CUSTOM

Galvanized Steel Self Stick Insulation Hangers 2-1/2" For HVAC System 4

Frequently Asked Questions
1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?

Yes, the material, the surface finish, the size, all could be customized.

3. Do you support package customization?

Yes, the package could be customized according to your need.

4. Can I get samples?

Yes, samples for quality confirm are supported.

5. Can you accept small orders?

Yes, for common size, we could accept small orders.
