2.7X63mm Aluminm Self Stick Insulation Pins To Fix Rock Wool

2.7X63mm Aluminm Self Stick Insulation Pins To Fix Rock Wool
2.7X63mm Aluminm Self Stick Insulation Pins To Fix Rock Wool 2.7X63mm Aluminm Self Stick Insulation Pins To Fix Rock Wool 2.7X63mm Aluminm Self Stick Insulation Pins To Fix Rock Wool

Large Image :  2.7X63mm Aluminm Self Stick Insulation Pins To Fix Rock Wool

Product Details:
Place of Origin: China
Brand Name: HUIHAO CUSTOM
Certification: ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 10,000 sets
Price: USD0.03-0.25 /set
Packaging Details: Carton and pallets
Delivery Time: 7-20 days
Payment Terms: L/C,T/T
Supply Ability: 50000 sets per day
Contact Now

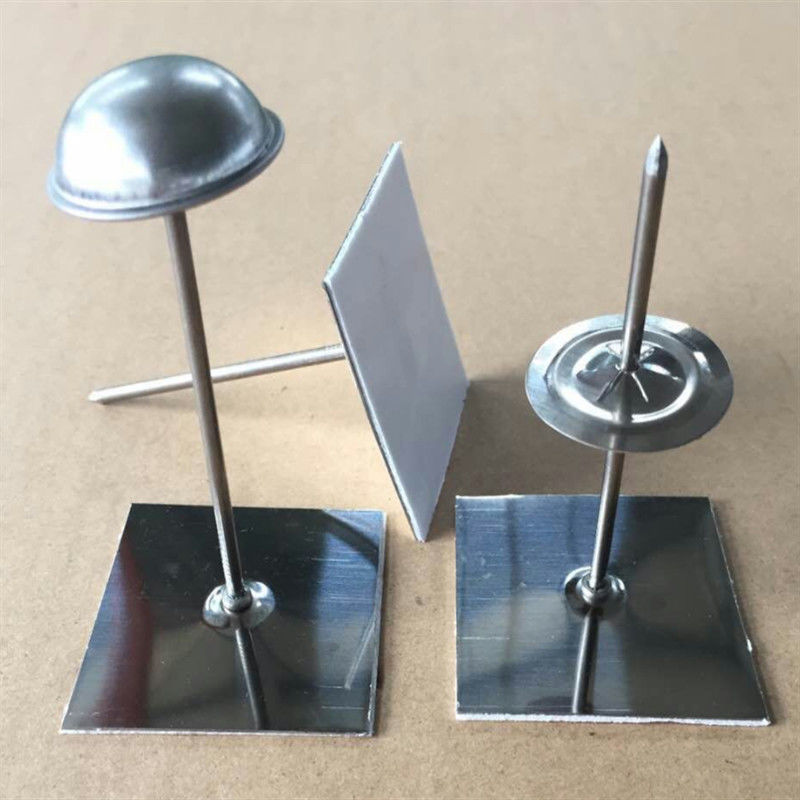

2.7X63mm Aluminm Self Stick Insulation Pins To Fix Rock Wool

Description
Features: Easy To Install Name: Aluminm Self Stick Insulation Pins
Key Word: Aluminum Stick Pin Material: Aluminum , Mild Seel , SS304/316
Pin Diameter: 2.7mm In Common Pin Lenght: 3/4'' -12'', Custom Length
Application: Duct Insulation,HVAC System Insulaiton Base Plate Size: 50X50mm In Square
Washer Type: Round Or Square Self Locking Washers, Dome Cap Washer Package: Carton And Pallet
Highlight:

Aluminm Self Stick Insulation Pins

2.7X63mm Aluminum Self Stick Insulation Pins for Rock Wool Fixing
Premium quality adhesive insulation pins designed for secure and efficient installation of duct insulation, HVAC systems, and other thermal insulation applications. Available in standard lengths from 3/4" to 12" with full customization options.
Product Specifications
Attribute Value
Material Aluminum, Mild Steel, SS304/316
Pin Diameter 2.7mm (standard), Customizable
Pin Length 3/4" - 12", Custom Lengths Available

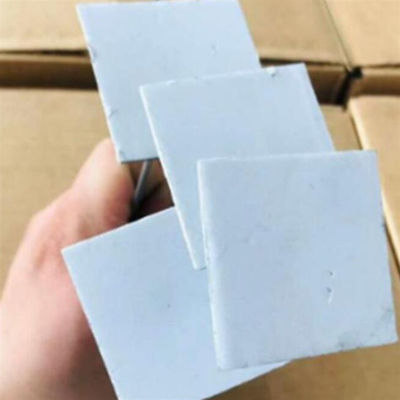

Base Plate Size 50×50mm Square
Washer Types Round/Square Self-Locking, Dome Cap
Package Carton and Pallet
2.7X63mm Aluminm Self Stick Insulation Pins To Fix Rock Wool 0
Key Features
  • Easy installation with strong adhesive backing
  • No tools required - reduces surface damage
  • Firm connection between pins and bases
  • Soft pins that bend easily for precise placement
  • Excellent double-sided adhesive properties
  • Precision length tolerance (±0.1mm)
  • High production capacity (10,000 pcs/hour)
Technical Parameters
Parameter Details
Product Size Pin Length: 19-300mm
Pin Diameter 12GA/14GA (2.67mm standard)
Base Material Galvanized Steel, Stainless Steel, Aluminum
Surface Treatment Galvanized, Polished
Packing Box/Carton with Pallet Packaging
Applications

Ideal for various insulation applications including:

  • Duct insulation systems
  • HVAC system insulation
  • Thermal insulation projects
  • Fixing insulation blankets and boards
2.7X63mm Aluminm Self Stick Insulation Pins To Fix Rock Wool 1
Customization Options

We offer comprehensive customization services:

  • Custom pin lengths (3/4" - 12" standard range)
  • Variable washer sizes (15mm - 70mm)
  • Multiple washer types (square, round, dome cap)
  • Material selection (aluminum, stainless steel, etc.)
  • OEM services available

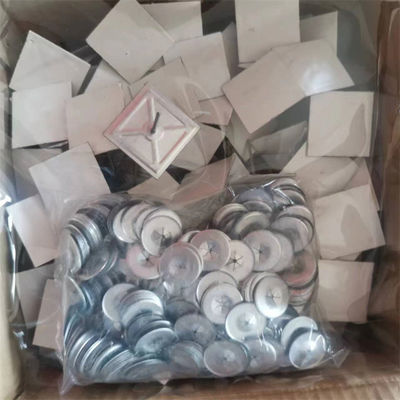

Packaging & Shipping

Products are securely packaged in boxes or on pallets with proper labeling and protection. All shipments are inspected prior to dispatch to ensure quality. Delivery inspection recommended upon receipt.

2.7X63mm Aluminm Self Stick Insulation Pins To Fix Rock Wool 2
Contact for Pricing & Samples:
Email: david@huihaomesh.com
WhatsApp: +86-18732199987
