Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers

Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers
Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers
Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers

Large Image :  Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers

Product Details:
Place of Origin: China
Brand Name: huihao custom
Certification: ISO9001-2015
Model Number: Metal Solar Panel Wire Mesh Clips
Payment & Shipping Terms:
Minimum Order Quantity: 10000sets
Packaging Details: pp bag + carton
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500000 sets per month

Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers

Description
Name: Metal Solar Panel Wire Mesh Clips With Self Locking Washers Surface Finish For Washers: Bouble Black Coating Or Single Black Coating
Usage: Secure Wire Mesh To Solar Panels J Hook Diameter: 2.0mm Or 2.5mm
Material: Stainless Steel Or Aluminum J Hook Length: 100mm Or 115mm
J Hook Surface Finish For J Hook: Polish Or Phosphating Washer Size: 38mm
Washer Type: Round Washer Thickness: 0.4mm Or 0.6mm
Washer Surface Finish: One Side Black Coating Or Two Side Black Coating Customization: Supported
High Light:

Metal Solar Panel Wire Mesh Clips

,

UV Resistant Wire Mesh Clips

,

Black Coated Wire Mesh Clips

Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers

Quick Details Of The Metal Solar Panel Wire Mesh Clips With Self Locking Washers

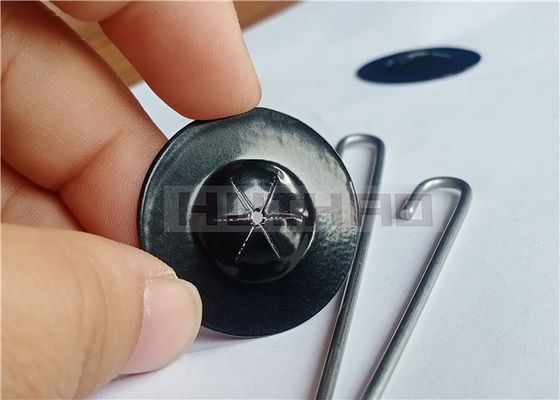

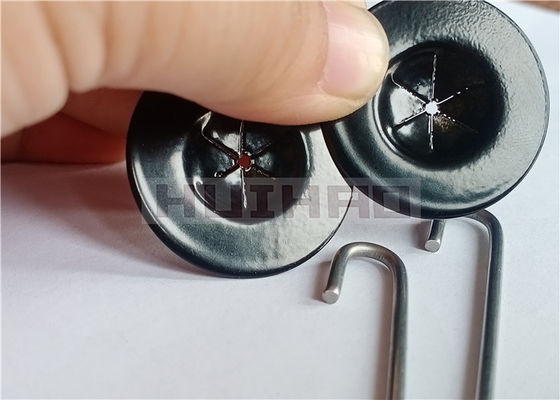

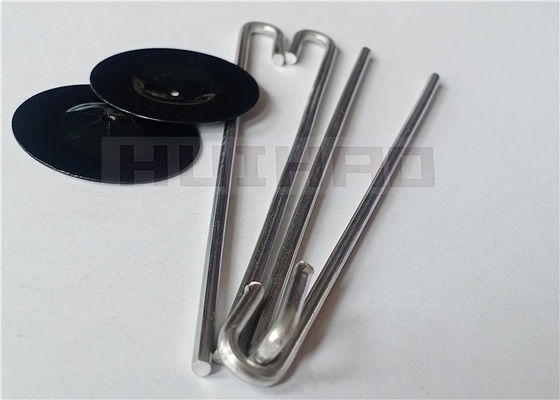

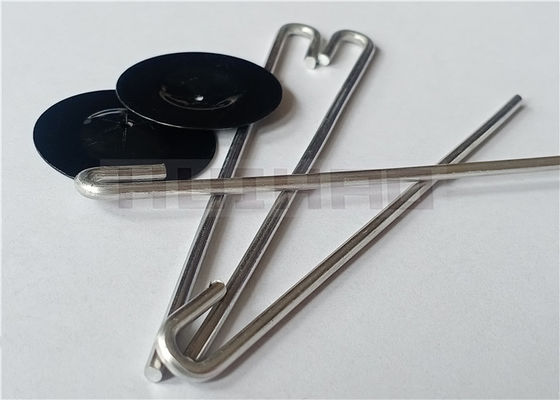

Metal solar panel wire mesh clips are designed to fasten the critter guard welded wire mesh

to solar panels while not scratch, pierce or impact integrity of solar panels

The metal solar panel wire mesh clips are combined of two parts: J hooks and self locking

washers, they are used together prevents birds from nesting under solar arrays and other

critters from entering and damaging the system.



Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers 0

Item:

Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers

J Hook Material: Stainless Steel

J Hook Diameter: 2.0mm

J Hook Length: 100mm

Self-lock Washer Material: Stainless Steel

Self-lock Washer Diameter: 38mm

Self-lock Washer Thickness: 0.4mm

Self-lock Washer Surface:

UV Resistant Black Coating



Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers 1

Item:

Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers

J Hook Material: Aluminum

J Hook Diameter: 2.5mm

J Hook Length: 115mm

Self-lock Washer Material: Aluminum

Self-lock Washer Diameter: 38mm

Self-lock Washer Thickness: 0.6mm

Self-lock Washer Surface:

UV Resistant Black Coating



Package Of Stainless Steel Or Aluminum Metal Solar Panel Wire Mesh Fastener Clips



J Hooks

1. 100 pcs per pp bag, 80 bags per carton

2. 500pcs per pp bag, 16bags per carton

3.1000pcs per pp bag, 8 bags per carton

Carton size: 41 cm x 28 cm x17 cm

Self-locking Washers

1.100 pcs per pp bag, 60 bags per carton

2. 500pcs per pp bag, 12bags per carton

3.1000pcs per pp bag, 6 bags per carton

Carton size: 41 cm x 28 cm x17 cm

Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers 2



Application Of The Metal Solar Panel Wire Mesh Clips With Self Locking Washers



Solar panel wire mesh clips with self locking washers, stainless steel material or aluminum

material are used to secure wire mesh to solar panels.

The number of clips needed will depend on the solar panel system. A standard 3kW system

(2 rows of 6 panels each - 12 panels total installed in a portrait orientation) requires 35 clips.

Space clips no more than 1.5 feet apart.


Metal Solar Panel Wire Mesh Clips With UV Resistant Black Coated Self Locking Washers 3



FAQ Of Huihao Hardware Mesh Product Co.,Ltd.



1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. can you supply design service?
yes, we can supply CAD drawing
6. can you supply installation guide?
yes, installation guide is avable for every order.
7. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
8. Advantage Of Huihao Hardware Mesh Product Limited.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
