Product Details:
|
| Name: | Solar Panel Welded Wire Mesh Clips With Self Locking Washers | Material: | Stainless Steel Or Aluminum |
|---|---|---|---|
| Usage: | Secure Wire Mesh To Solar Panels | Surface Finish For Washers: | Bouble Side Black Coating Or Single Side Black Coating |
| Samples: | Supported | Surface Finish For J Hook: | Polish Or Phosphating |
| Nail Type: | J Hook | Washer Size: | 38mm |
| Washer Type: | Round | Nail Size: | 2.0mm X 100mm Or 2.5 X 115mm |
| High Light: | 304SS Welded Wire Mesh Clips,2.0x100mm Weldmesh Clips,Self Locking Washers Weldmesh Clips |
||
Stainless Steel Solar Panel Wire Mesh Clips are used to secure mesh to solar panels to
help protect solar panels from rodents and nesting birds with the wire mesh screening.
1. Constructed from 304 Stainless Steel for maximum endurance to outdoor elements.

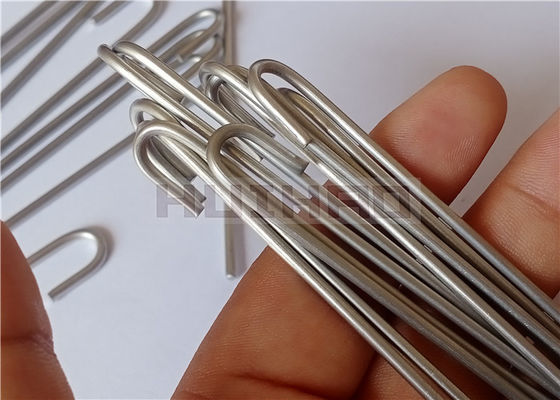

2. 304 Stainless Steel J-Hook easily attaches to the solar panel frames and can easily be
trimmed or bent after assembly.

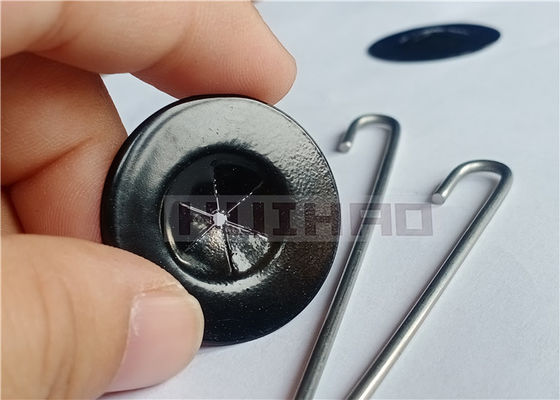

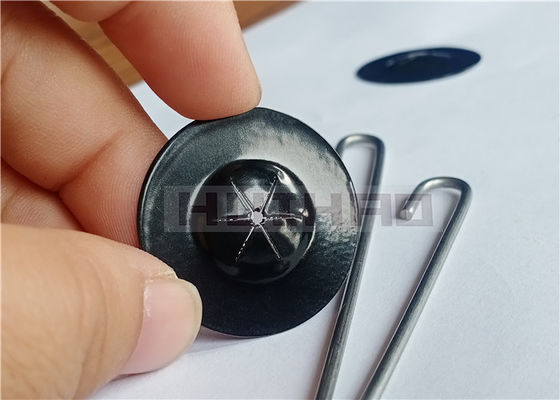

3. 304 Stainless Steel Washers will firmly hold wire mesh screen to the module assembly.
4. Does not violate panel integrity.
5. Installs quickly and easily with standard linesman pliers
6. Double side black color available for those applications subject to HOA appearance
restrictions.
|
Item |

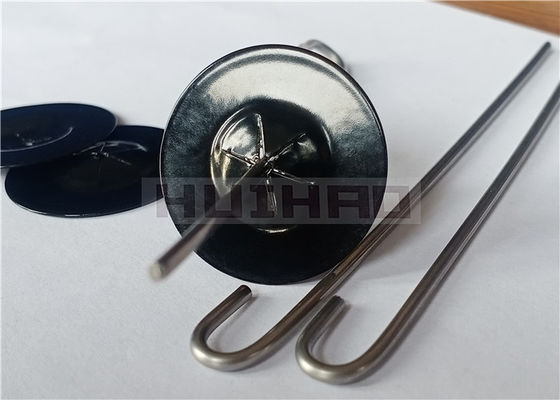

Solar Panel Wire Mesh Clips With Self Locking Washers |
|
Combine |
J hook and self locking washers |
|
J hook material |
Stainless steel |
|
J hook diameter |
2.0mm |
|
J hook length |
100mm |
|
Self locking washer material |
Stainless steel |
|
Self locking washer size |
38mm |
|
Self locking washer surface finish |
double side anti uv black coating |
 |
|
|
|
1. Made from durable aluminum alloy
2. No drilling required
3. Clips will not scratch, pierce or impact integrity of solar panels
4. Used to secure the mesh to solar panels which creates a physical barrier to keep birds from
accessing and nesting in the area beneath the solar arrays
5. Pack Sizes: As your requirement
| Item | Solar Panel Welded Wire Mesh Fastener Clips |
| Combine | J hook and self locking washers |
| J hook material | Aluminum |
| J hook diameter | 2.5mm |
| J hook length | 115mm |
| Self locking washer material | Aluminum |
| Self locking washer size | 38mm round type |
| Self locking washer surface finish | uv black coating |
|
|
|
J Hooks |
1. 100 pcs per pp bag, 80 bags per carton 2. 500pcs per pp bag, 16bags per carton 3.1000pcs per pp bag, 8 bags per carton Carton size: 41 cm x 28 cm x17 cm |
|
Self-locking Washers |
1.100 pcs per pp bag, 60 bags per carton 2. 500pcs per pp bag, 12bags per carton 3.1000pcs per pp bag, 6 bags per carton Carton size: 41 cm x 28 cm x17 cm |
|
|
Solar panel wire mesh clips with self locking washers, stainless steel material or aluminum
material are used to secure wire mesh to solar panels.
The number of clips needed will depend on the solar panel system. A standard 3kW system
(2 rows of 6 panels each - 12 panels total installed in a portrait orientation) requires 35 clips.
Space clips no more than 1.5 feet apart.
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. can you supply design service?
yes, we can supply CAD drawing
6. can you supply installation guide?
yes, installation guide is avable for every order.
7. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
8. Advantage Of Huihao Hardware Mesh Product Limited.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
