2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels

2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels
2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels
2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels 2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels 2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels 2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels 2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels

Large Image :  2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels

Product Details:
Place of Origin: China
Brand Name: huihao custom
Certification: ISO9001-2015
Model Number: Solar Panel Wire Mesh Fastener Clips
Payment & Shipping Terms:
Minimum Order Quantity: 10000sets
Packaging Details: pp bag + carton
Delivery Time: 7 work days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 500000 sets per month
Contact Now

2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels

Description
Name: Stainless Steel Welded Wire Mesh Fastener Clips Material: Stainless Steel
Usage: Secure Wire Mesh To Solar Panels Surface Finish For Washers: Bouble Black Coating
Samples: Supported Surface Finish For J Hook: Polish
Nail Type: J Hook Washer Size: 38mm
Washer Type: Round Nail Size: 2.0mm X 100mm
Highlight:

Stainless Steel Fastener Clips

,

Welded Wire Mesh Fastener Clips

,

2.0x100mm Fastener Clips

2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips

Used to secure wire mesh to solar panels with durable stainless steel construction.

Product Specifications
Attribute Value
Name Stainless Steel Welded Wire Mesh Fastener Clips
Material Stainless steel
Usage Secure wire mesh to solar panels
Surface finish for washers Double black coating
Samples Supported
Surface finish for J hook Polish
Nail type J hook
Washer size 38mm
Washer type Round
Nail size 2.0mm x 100mm
Product Overview

Solar panel welded wire mesh fastener clips are designed to fasten the critter guard mesh to solar panels without any intrusions or damage. The clips and the mesh used together prevent birds from nesting under solar arrays and other critters from entering and damaging the system.

This item can be installed on almost any solar system and features UV-resistant black coated self-locking washers.

For pricing or sample requests, please contact: cherry@huihaomesh.com

Technical Details

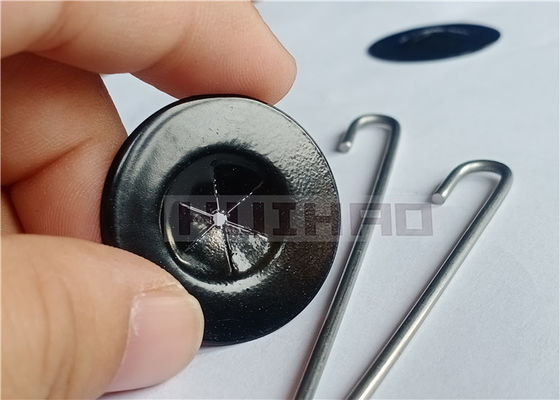

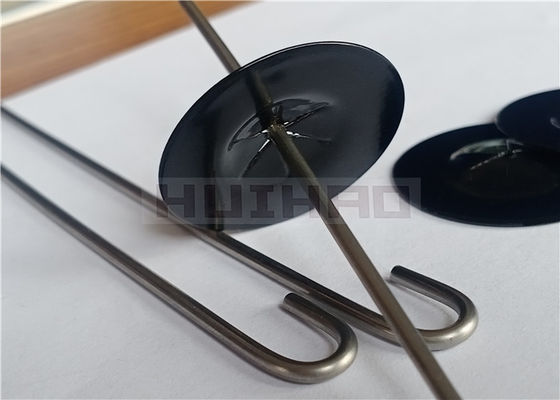

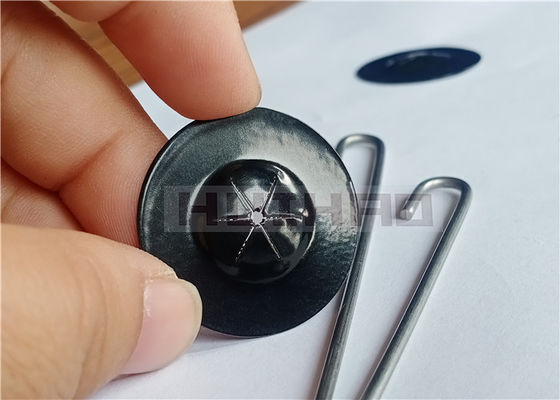

Item Solar Panel Welded Wire Mesh Fastener Clips
Combine J hook and self locking washers

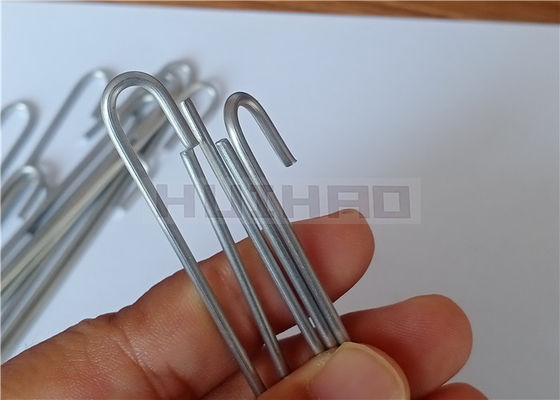

J hook material Stainless steel
J hook diameter 2.0mm
J hook length 100mm
Self locking washer material Stainless steel
Self locking washer size 38mm
Self locking washer surface finish Double side anti UV black coating
2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels 0 2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels 1
Key Features
  • Made from durable 304 stainless steel material
  • Washers with double side black coating for UV resistance
  • 304 Stainless Steel J-Hook easily attaches to solar panel frames and can be trimmed or bent after assembly
  • Will not scratch, pierce or impact integrity of solar panels
  • Quick and easy installation
  • Creates a physical barrier to keep birds from nesting beneath solar arrays
  • Custom pack sizes available
Packaging Options
Component Packaging Options
J Hooks

1. 100 pcs per PP bag, 80 bags per carton

2. 500 pcs per PP bag, 16 bags per carton

3. 1000 pcs per PP bag, 8 bags per carton

Carton size: 41 cm x 28 cm x 17 cm
Self-locking Washers

1. 100 pcs per PP bag, 60 bags per carton

2. 500 pcs per PP bag, 12 bags per carton

3. 1000 pcs per PP bag, 6 bags per carton

Carton size: 41 cm x 28 cm x 17 cm
2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels 2
Application Guidelines

Welded Wire Mesh Fastener Clips with self locking washers are used to secure wire mesh to solar panels. The number of clips needed depends on the solar panel system.

A standard 3kW system (2 rows of 6 panels each - 12 panels total installed in portrait orientation) requires 35 clips. Space clips no more than 1.5 feet apart.

2.0x100mm Stainless Steel Welded Wire Mesh Fastener Clips Used To Secure Wire Mesh To Solar Panels 3
Frequently Asked Questions
1. Are you a manufacturer or a trader?

We are a manufacturer, located in Hebei province, China.

2. Do you support product customization?

Yes, the material, surface finish, size, and type can all be customized.

3. Can I get samples?

Yes, we can send you free samples.

4. Can you accept small orders?

Yes, for common sizes, we can accept small orders.

5. How do you ensure product quality?

1) Confirm all details before quoting
2) Reconfirm details before production
3) Implement "IATF 16949 Quality Management System" standard
4) Provide production and shipment updates with videos and photos

6. What are your company advantages?

1) Competitive pricing as direct manufacturers
2) On-time delivery with automated production lines
3) Excellent quality meeting international standards
4) Comprehensive after-sale service

Tag:

iso solar panel bird proofing clips,

29mm washer solar panel mesh clips,

Stainless Steel Fastener Clips
