Bird Control Mesh & Aluminum Clips For Solar Panel Critter Guard

 Quick details of the bird control clips

• Name :bird control clips , also named solar panel clips
• Material:  Clips material:Aluminum alloy, J hook material: aluminum or stainless steel .
• Solar panel clips including: J type hooks & speed clips
• J hook size in common: 2.5mmx95mm, 2.5mmx120mm, or customized size
• Clips size: 28mmx32mm, 30mmx30mmin round , 30mmx60mm
• Application: install with the PVC coated mesh for solar panel security.

The bird control clips is used for fastening the bird mesh /weld wire mesh around the solar panel , so it could keep away the bird, pigeon , insects form the solar panel . It cold protect the solar panel .

Technical data of the bird control clips-Speed clips

Name	material	thickness	size	finished
Square speed clips	aluminum alloy	0.6mm	30*32mm	black uv finished
Round speed clips	aluminum alloy	0.6mm	32mm	black uv finished
Slot speed clips	aluminum alloy	0.6mm	64mmx30mm	black uv finished
Note	The size and thickness could be customized for big order .

Technical data of the bird control clips-J type hooks

The solar panel mesh anchors contains aluminum clips and J-hooks. They are used to fix the metal wire mesh to the solar panel to form a physical barrier to keep birds away from the solar cell array. The back of each cleat is coated with a proprietary black paint to resist the fading of ultraviolet rays, so the appearance of these clips is as good as your system. The clip will not pierce the solar panel and is designed to protect the integrity of the expensive solar array.
The solar panels clips & wahsers is used to fix the wire mesh to the solar panel. The number of clips required will depend on the number of solar panels. The clip is designed to protect the integrity of expensive solar panels. These clips will not pierce the solar panels and firmly fix the wire mesh on the module components to prevent squirrels and rodents from damaging the interconnection wires, and birds nest under the solar panels.

​

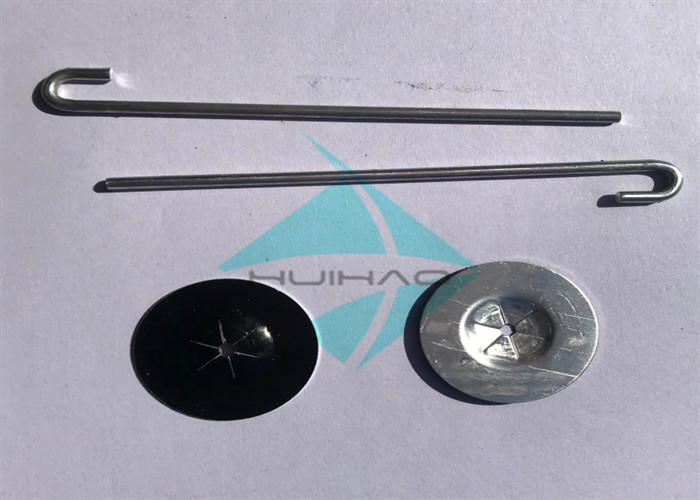

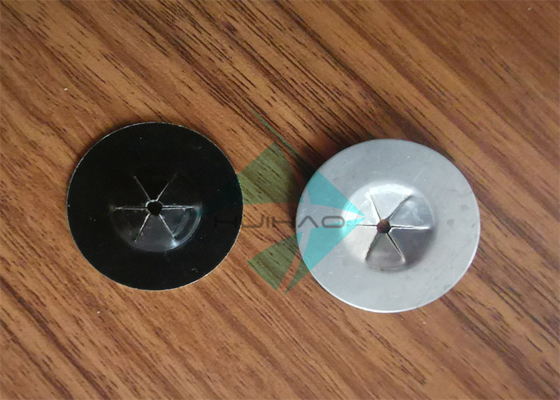

Photos of the bird control clips

Application of the bird control clips

Bird control clips are used to secure insulation to PVC coated mesh. They can be tack and arc welded, or just hooked onto the mesh. After the hook is attached,

the insulation is installed over the longer portion and held with a self-locking washer.

*****************************************************************************************************************************************************************

Packing and delivery method of bird control clips

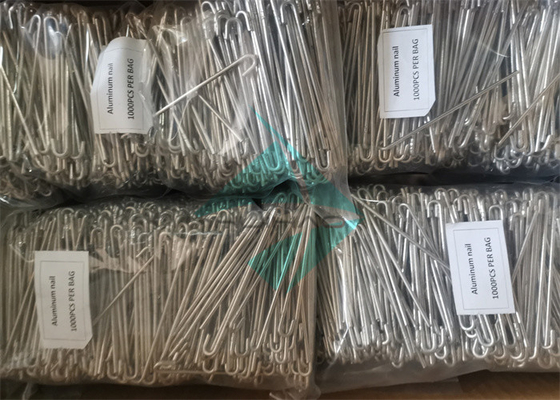

The J hooks & clips usually pack with plastic bags +cartons.

100pcs /500pcs /1000pcs per bag in common

The qty in each bags could be according to the customer's requirements.

Sample order: By express , such as UPS, FedEx, TNT, etc

Large order: By sea or air
