3x30mm Stainless Steel Welded Rings Insulation Lacing Anchor Accessories

3x30mm Stainless Steel Welded Rings Insulation Lacing Anchor Accessories
3x30mm Stainless Steel Welded Rings Insulation Lacing Anchor Accessories 3x30mm Stainless Steel Welded Rings Insulation Lacing Anchor Accessories 3x30mm Stainless Steel Welded Rings Insulation Lacing Anchor Accessories

Large Image :  3x30mm Stainless Steel Welded Rings Insulation Lacing Anchor Accessories

Product Details:
Place of Origin: China
Brand Name: Huihao
Certification: ISO
Model Number: stainless steel welded rings
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Packaging Details: paper carton + wood pallet
Delivery Time: 15 days after the payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100000 pcs per 15 days

3x30mm Stainless Steel Welded Rings Insulation Lacing Anchor Accessories

Description
Name: Insulation Lacing Anchor Accessories Stainless Steel Welded Rings Material: Stainless Steel
Type: Welded Shape: Round
Wire Diameter: 3mm Ring Diameter: 30mm
Application: To Secure Removable Insulation Blanket Customization: Supported
High Light:

3x30mm stainless steel welded rings

,

oem stainless steel welded rings

,

insulation lacing anchor welded rings steel

Insulation Lacing Anchor Accessories Stainless Steel Welded Rings 3x30mm

Description of the stainless steel welded rings

HUIHAO Hardware could manufacture welded type and non-welded type stainless steel

lacing rings. Stainless steel  lacing rings could be used with stainless steel lacing washers

and lacing wires to fasten insulation materials.

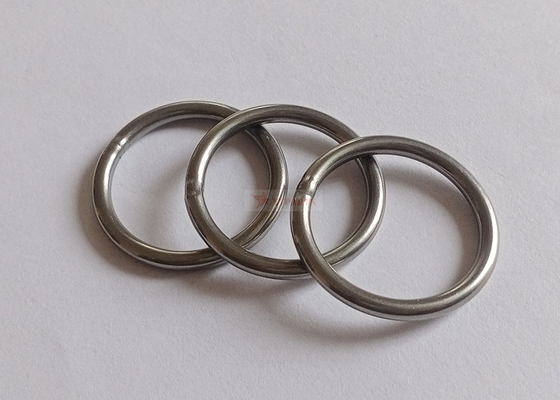

3x30mm Stainless Steel Welded Rings Insulation Lacing Anchor Accessories 0



Item: Stainless Steel Welded Rings

Shape: round

Type: welded

Material: stainless steel 304

Wire diameter: 3mm

Ring diameter: 30mm



Common Size Of The Stainless Steel Welded Rings



Wire diameter inter diameter SWL(KG) BL(KG)
3MM 15MM-40MM 162 650
4MM 20MM-40MM 250 1000
5MM 25MM-65MM 500 2000
6MM 25MM-90MM 800 2700
8MM 30MM-100MM 1250 3200
9MM 30MM-90MM 1500 5000
10MM 40MM-100MM 2125 6200
12MM 50MM-140MM 2500 10000
13MM 55MM-160MM 2875 11500



How To Install The Stainless Steel Welded Rings



Stainless steel welded rings could be used with lacing washers and lacing wires for securing

and tying removable/reuseable insulation blankets or pads.

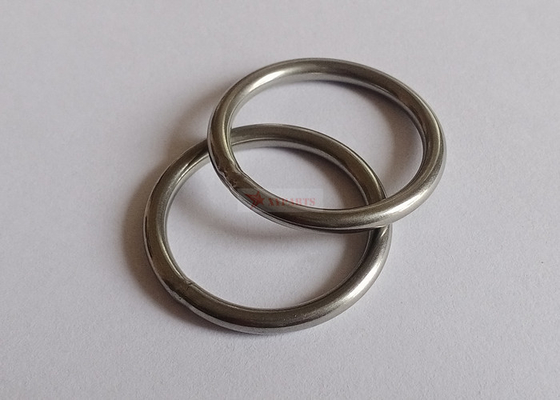

3x30mm Stainless Steel Welded Rings Insulation Lacing Anchor Accessories 1



Application Of The Stainless Steel Welded Lacing Rings



stainless steel material welded lacing rings are wildy used for fixing:

  • exhaust insulation blankets

  • fabric expansion joints

  • temptec exhaust blankets

  • mat insulation

  • thermal insulation covers

  • cooling insulation covers

  • heat insulatiuon covers

  • freeze protection cover

  • removable insulation covers

  • tank insulation cover

  • flanhe leak insulation covers

  • offshore production cover

  • heat-shield insulation blankets

  • removable insulation jacket

  •

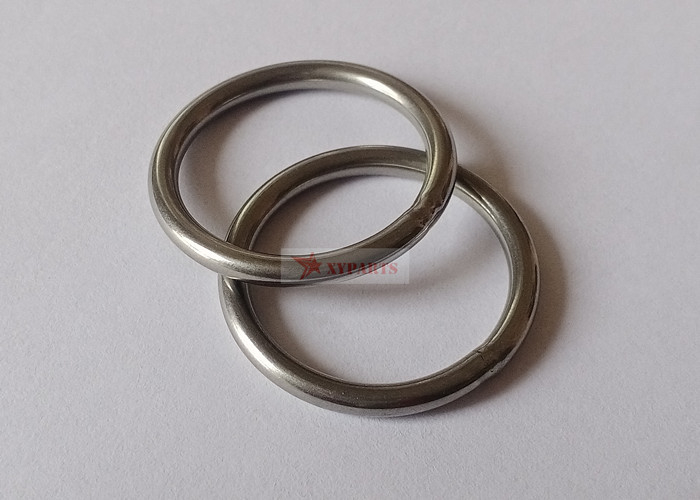

3x30mm Stainless Steel Welded Rings Insulation Lacing Anchor Accessories 2



Package Of The Stainless Steel Welded Lacing Rings



pp bags + carbons + pallet
or accoding requirement
500pcs per pp bag
4 bogs per carton
carton size: 28x29x30cm



3x30mm Stainless Steel Welded Rings Insulation Lacing Anchor Accessories 3



FAQ Of Huihao Hardware Mesh Product Limited.



1. Are you a factory or a trader?
We have our own factory and international trading company
2. Do you support product customization?
Yes, we mainly promote customized processing routes

(process customization, material customization, surface treatment customization, etc.).

According to your samples or drawings, our professional designers will draw 3D data models

for you and make samples.

3. How can I receive a quotation?
Please send us your product drawings or picture information via email, and we will provide

you with a product quotation within 2 working days!
4. How can I get samples?
1) Standard products: We provide free samples under 5 dollars.
2) Custom products: We charge 1-3 times the unit price (based on product specifications).

3) Shipping methods are DHL, FedEX, TNT, UPS, EMS or others. You need to pay for shipping.

4)Samples will be sent as soon as payment is received.

5. What is your preferred payment item?
Samples are paid via paypal and T/T is 100% paid.
Bulk orders: T/T 30% prepaid, the balance should be paid before shipment.
