Product Details:
|
| Name: | Woven Square Mesh Screen For Sand Wash Plant | Wire Diameter: | 1.2mm - 19mm |
|---|---|---|---|
| Material: | Spring Steel, Carbon Steel, Manganese Steel, Stainless Steel | Opening Size: | 3mm - 150mm |
| Hook Type: | C Or U Hook For 30° - 180° | Opening Type: | Square |
| Edge: | Plain, Bent, Reinforced Shroud, Welded Shroud, Bolt Shroud | Surface Treatment: | Black Or Color Painted |
| High Light: | 65mn square mesh screen,wear resistance square mesh screen,sand wash plant square mesh screen |
||

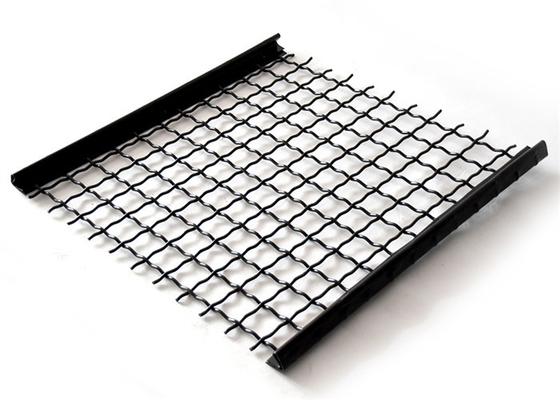

65MN Wear Resistance Woven Square Mesh Screen For Sand Wash Plant
Specifications Of The Square Mesh Screens
| Origin | China |
| Company | Huihao hardware mesh product limited |
| Name | 65MN Wear Resistance Woven Square Mesh Screen For Sand Wash Plant |
| Material | spring steel, carbon steel, manganese steel, stainless steel |
| Wire Diameter | 1.2mm-19mm |
| Opening Size | 3mm-150mm |
| Weave Type | Plain weave / Inter crimp weave / Lock crimp weave / Flat top weave |
| Hook Type | C Or U Hook For 30° - 180° |
| Edge | Plain, Bent, Reinforced Shroud, Welded Shroud, Bolt Shroud |
| Surface | Black Or Color Painted |
 |
|
| Plain Weave >Standard type for crimped square mesh >Suitable for most vibrating screens |
Inter Crimp >Common to use in large opening screens >Suitable for lighter wires to provide stability |
|
|
| Lock Crimp Like the name,this type of crimp locks wires to gether and maintain the shapes and opening sizes of screens |
Flat Top Crimp This type of crimp creates a smooth surface on top of the screen, which provide more abrasion resistance and longer wear life |
|
|
| Plain edge | Bent edge |
|
|
| Reinforced shroud edge | Bolt shroud edge |
The following are some parts of specification as reference, we also could make according to
your requirement.
| Opening Type | Material | Opening | Wire | Length | Width | ||||
| Square | MN65 | 0.187" | 4.7498mm | 0.085" | 2.032mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 0.187" | 4.7498mm | 0.092" | 2.3368mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 0.25" | 6.35mm | 0.092" | 2.3368mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 0.375" | 9.525mm | 0.135" | 3.429mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 0.375" | 9.525mm | 0.148" | 3.7592mm | 77" | 1956mm | 65" | 1651mm |
| Square | MN65 | 0.5" | 12.7mm | 0.148" | 3.7592mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 0.5" | 12.7mm | 0.162" | 4.1148mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 0.563" | 14.3002mm | 0.177" | 4.4958mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 0.75" | 19.05mm | 0.192" | 4.8768mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 0.75" | 19.05mm | 0.207" | 5.2578mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 0.875" | 22.225mm | 0.225" | 5.715mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 1.0" | 25.4mm | 0.243" | 6.1722mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 1.0" | 25.4mm | 0.312" | 7.9248mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 1.125" | 28.575mm | 0.243" | 6.1722mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 1.25" | 31.75mm | 0.225" | 5.715mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 1.25" | 31.75mm | 0.243" | 6.1722mm | 100" | 2540mm | 65" | 1651mm |
| Square | MN65 | 1.5" | 38.1mm | 0.362" | 9.1948mm | 100" | 2540mm | 65" | 1651mm |
Features Of The Square Mesh Screen
High tensile strength.
Abrasion and wear resistance.
Various weaving types to fit different materials.
Different hook types for easy installation and fixation.
Our manganese steel square mesh screens are high durability, precision and impact resistance. 90% of
our products are used in international markets because they can be perfectly matched with various kinds
of vibrating screens including international brands, such as Wirtgen,AtlasCopco,Sandvik,Mesto,Terex etc.
Quantity Control:
1)Aperture error:≤3%,which is better than International Standards;
2)Wire diameter error: ±3%;
3) Diagonal error:≤9mm every2m
Advantages Of Our Square Mesh Screen
1. We have adopted an advanced process to achieve the right choice of different materials.We conclude
a series of hardness and shrinkage with the cross-section to ensure the greatest hardness requirements .
2. Flat surface and suitable tightness net is base requirement of a woven screen ,which directly affect the
life of mine screen ,Griddle screen machines in the highfrequency vibrations make the wires loose due to
the friction themselves , damaged in advance .
3.The precise screen mesh will affect screening accuracy , surface founder screen mesh will be easy
installation , improving production efficiency . Our plant produces knitting mesh surface smooth ,
precise mesh (Aperture deviation less than +-3%) , screen cloth surface founder (within 2.5 degrees
latitude and longitude degrees vertically)
Applications
Quarrying Industry
Mining Industry
Coal Production
Crushed Stone Applications
Screening Gravel
Organic Fertilizer Production
Topsoil Production
Screening Sand
Package Of The Square Mesh Screens
|
|
| The package could be pallet or wood carton or as your special requirement. | |
