Manganese Steel Self Cleaning Screen Mesh To Sand Screening Equipment Mn65 Square Wash Plant

Manganese Steel Self Cleaning Screen Mesh To Sand Screening Equipment Mn65 Square Wash Plant
Manganese Steel Self Cleaning Screen Mesh To Sand Screening Equipment Mn65 Square Wash Plant Manganese Steel Self Cleaning Screen Mesh To Sand Screening Equipment Mn65 Square Wash Plant Manganese Steel Self Cleaning Screen Mesh To Sand Screening Equipment Mn65 Square Wash Plant Manganese Steel Self Cleaning Screen Mesh To Sand Screening Equipment Mn65 Square Wash Plant

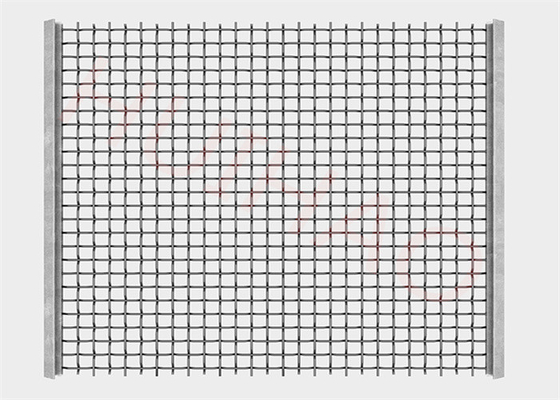

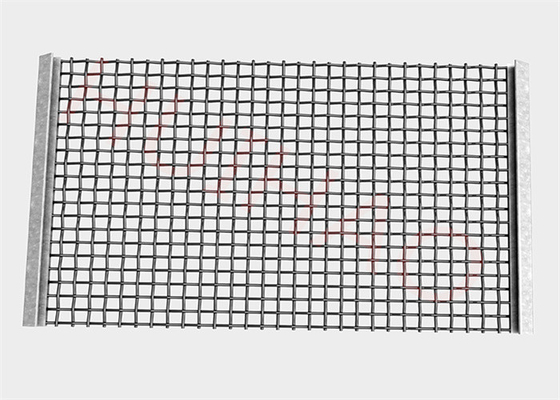

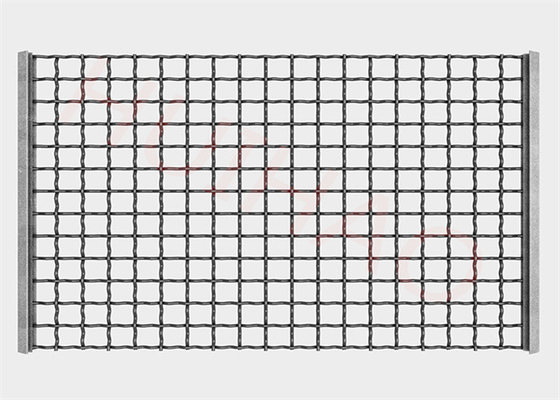

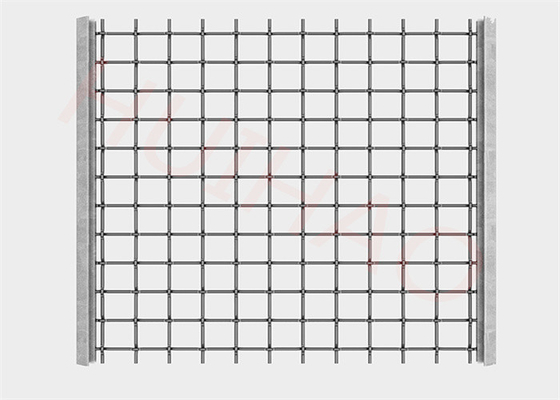

Large Image :  Manganese Steel Self Cleaning Screen Mesh To Sand Screening Equipment Mn65 Square Wash Plant

Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO9001-2008
Model Number: square wash plant screen
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Steel Pallet Or Wooden Pallet
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 10000pcs per month

Manganese Steel Self Cleaning Screen Mesh To Sand Screening Equipment Mn65 Square Wash Plant

Description
Name: MN65 Square Wash Plant Screen Mesh Manganese Steel Wire Diameter: 1.2mm - 19mm
Material: Spring Steel, Carbon Steel, Manganese Steel, Stainless Steel Opening Size: 3mm - 150mm
Hook Type: C Or U Hook For 30° - 180° Opening Type: Square
Edge: Plain, Bent, Reinforced Shroud, Welded Shroud, Bolt Shroud Surface Treatment: Black Or Color Painted
High Light:

manganese steel self cleaning screen mesh

,

mn65 self cleaning screen mesh

,

sand screening equipment self cleaning mesh

Sand Screening Equipment MN65 Square Wash Plant Screen Mesh Manganese Steel



Quick Details Of The Square Wash Plant Screen

Origin China
Company Huihao hardware mesh product limited
Name Square Wash Plant Screen
Material spring steel, carbon steel, manganese steel, stainless steel
Wire Diameter 1.2mm-19mm
Opening Size 3mm-150mm
Weave Type Plain weave / Inter crimp weave / Lock crimp weave / Flat top weave
Hook Type C Or U Hook For 30° - 180°
Edge Plain, Bent, Reinforced Shroud, Welded Shroud, Bolt Shroud
Surface Black Or Color Painted
Manganese Steel Self Cleaning Screen Mesh To Sand Screening Equipment Mn65 Square Wash Plant 0 Manganese Steel Self Cleaning Screen Mesh To Sand Screening Equipment Mn65 Square Wash Plant 1
Plain Weave
>Standard type for crimped square mesh
>Suitable for most vibrating screens
Inter Crimped
>Common to use in large opening screens
>Suitable for lighter wires to provide stability
Manganese Steel Self Cleaning Screen Mesh To Sand Screening Equipment Mn65 Square Wash Plant 2 Manganese Steel Self Cleaning Screen Mesh To Sand Screening Equipment Mn65 Square Wash Plant 3
Lock Crimped
Like the name,this type of crimp locks wires to gether and maintain the shapes and opening sizes of screens

Flat Top

This type of crimp creates a smooth surface on top of the screen, which provide more abrasion resistance and longer wear life



The following are some parts of specification as reference, we also could make according to

your requirement.

Opening Type Material Opening Wire Length Width
Square MN65 0.187" 4.7498mm 0.085" 2.032mm 100" 2540mm 65" 1651mm
Square MN65 0.187" 4.7498mm 0.092" 2.3368mm 100" 2540mm 65" 1651mm
Square MN65 0.25" 6.35mm 0.092" 2.3368mm 100" 2540mm 65" 1651mm
Square MN65 0.375" 9.525mm 0.135" 3.429mm 100" 2540mm 65" 1651mm
Square MN65 0.375" 9.525mm 0.148" 3.7592mm 77" 1956mm 65" 1651mm
Square MN65 0.5" 12.7mm 0.148" 3.7592mm 100" 2540mm 65" 1651mm
Square MN65 0.5" 12.7mm 0.162" 4.1148mm 100" 2540mm 65" 1651mm
Square MN65 0.563" 14.3002mm 0.177" 4.4958mm 100" 2540mm 65" 1651mm
Square MN65 0.75" 19.05mm 0.192" 4.8768mm 100" 2540mm 65" 1651mm
Square MN65 0.75" 19.05mm 0.207" 5.2578mm 100" 2540mm 65" 1651mm
Square MN65 0.875" 22.225mm 0.225" 5.715mm 100" 2540mm 65" 1651mm
Square MN65 1.0" 25.4mm 0.243" 6.1722mm 100" 2540mm 65" 1651mm
Square MN65 1.0" 25.4mm 0.312" 7.9248mm 100" 2540mm 65" 1651mm
Square MN65 1.125" 28.575mm 0.243" 6.1722mm 100" 2540mm 65" 1651mm
Square MN65 1.25" 31.75mm 0.225" 5.715mm 100" 2540mm 65" 1651mm
Square MN65 1.25" 31.75mm 0.243" 6.1722mm 100" 2540mm 65" 1651mm
Square MN65 1.5" 38.1mm 0.362" 9.1948mm 100" 2540mm 65" 1651mm



Features
Wear and abrasion resistant.
Heavy impact resistant.
High temperature resistant.
Shock and pull resistant.
High tensile strength and toughness.
Acid, alkali and corrosion resistant.
Long service life.


Applications
Square wash plant screen mesh can be used as screen deck in quarry screen and crusher screen to

separate and sort stone, sand, gravel, coal, rock and other materials.

It is widely used in the large scale stone processing, asphalt mixing plants, coal, metallurgy, chemical

and other industries.



Edges Of The Square Wash Plant Screen Mesh

High Manganese 65MN Woven Vibrating Screen Mesh With Clamp Bending 6 High Manganese 65MN Woven Vibrating Screen Mesh With Clamp Bending 5
Plain edge Bent edge
High Manganese 65MN Woven Vibrating Screen Mesh With Clamp Bending 4 High Manganese 65MN Woven Vibrating Screen Mesh With Clamp Bending 7
Reinforced shroud edge Bolt shroud edge



Package Of The Square Crusher Screens

High Manganese 65MN Woven Vibrating Screen Mesh With Clamp Bending 8 High Manganese 65MN Woven Vibrating Screen Mesh With Clamp Bending 9
The package could be pallet or wood carton or as your special requirement.



FAQ- Huihao hardware mesh product limited



1. What screening machines our woven wire screen mesh could fit for?

Huihao company offers a wide variety of replacement screens and screening products to fit the

following screening machines.
Powerscreen / Extec / Fintec / Sandvik / Finlay / McCloskey / Screen Machine / Metso



2. How to get the quotation?

Commonly used goods should be informed of material, specification and quantity.

Customized products also require customers to provide drawings.



3. How to arrange transportation?

For samples, international express service is usually used. DHL, TNT, UPS,FEDEX

If the order is less than 100kg, it usually uses air transportation and door-to-door service.

For bulk goods, sea containers are usually used.



4. How to ensure the product quality?

Our factory has ISO9001-2015 certificate qualification, and provides material list and factory inspection report.

We can first confirm the samples and arrange production after passing the tests.

We also accept third-party inspection.

We are Alibaba's gold medal supplier and can place orders directly on Ali to enable credit insurance services.
