Product Details:
|
| Name: | Replacement Screens MN65 Square Crusher Screens | Wire Diameter: | 1.2mm - 19mm |
|---|---|---|---|
| Material: | Spring Steel, Carbon Steel, Manganese Steel, Stainless Steel | Opening Size: | 3mm - 150mm |
| Hook Type: | C Or U Hook For 30° - 180° | Opening Type: | Square |
| Edge: | Plain, Bent, Reinforced Shroud, Welded Shroud, Bolt Shroud | Surface Treatment: | Black Or Color Painted |
| High Light: | mn65 crusher screens,square crusher screens,coal production crusher screens |
||

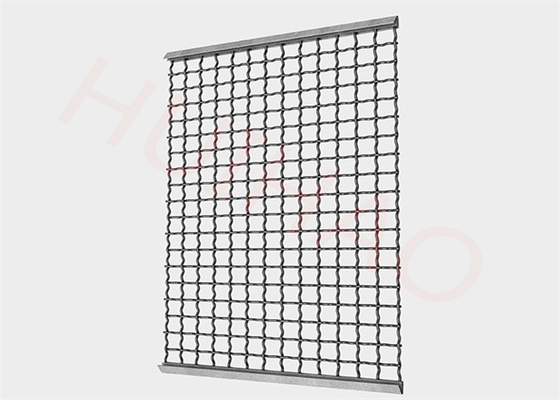

Replacement Screens MN65 Square Crusher Screens For Coal Production
Quick Details Of The Square Crusher Screens
| Origin | China |
| Company | Huihao hardware mesh product limited |
| Name | Square Crusher Screens |
| Material | spring steel, carbon steel, manganese steel, stainless steel |
| Wire Diameter | 1.2mm-19mm |
| Opening Size | 3mm-150mm |
| Weave Type | Plain weave / Inter crimp weave / Lock crimp weave / Flat top weave |
| Hook Type | C Or U Hook For 30° - 180° |
| Edge | Plain, Bent, Reinforced Shroud, Welded Shroud, Bolt Shroud |
| Surface | Black Or Color Painted |
 |
|
| Plain Weave >Standard type for crimped square mesh >Suitable for most vibrating screens |
Inter Crimped >Common to use in large opening screens >Suitable for lighter wires to provide stability |
|
|
| Lock Crimped Like the name,this type of crimp locks wires to gether and maintain the shapes and opening sizes of screens |
Flat Top This type of crimp creates a smooth surface on top of the screen, which provide more abrasion resistance and longer wear life |
The following are some parts of specification as reference, we also could make according to
your requirement.
| Type Of Screen | Material | Opening | Aperture | Width | Length |
| Square | MN65 | 0.187" | 0.085" | 100" | 65" |
| Square | MN65 | 0.187" | 0.092" | 100" | 65" |
| Square | MN65 | 0.25" | 0.092" | 100" | 65" |
| Square | MN65 | 0.375" | 0.135" | 100" | 65" |
| Square | MN65 | 0.375" | 0.148" | 77" | 65" |
| Square | MN65 | 0.5" | 0.148" | 100" | 65" |
| Square | MN65 | 0.5" | 0.162" | 100" | 65" |
| Square | MN65 | 0.563" | 0.177" | 100" | 65" |
| Square | MN65 | 0.75" | 0.192" | 100" | 65" |
| Square | MN65 | 0.75" | 0.207" | 100" | 65" |
| Square | MN65 | 0.875" | 0.225" | 100" | 65" |
| Square | MN65 | 1.0" | 0.243" | 100" | 65" |
| Square | MN65 | 1.0" | 0.312" | 100" | 65" |
| Square | MN65 | 1.125" | 0.243" | 100" | 65" |
| Square | MN65 | 1.25" | 0.225" | 100" | 65" |
| Square | MN65 | 1.25" | 0.243" | 100" | 65" |
| Square | MN65 | 1.5" | 0.362" | 100" | 65" |
Edges Of The Square Crusher Screens
|
|
| Plain edge | Bent edge |
|
|
| Reinforced shroud edge | Bolt shroud edge |
Package Of The Square Crusher Screens
|
|
| The package could be pallet or wood carton or as your special requirement. | |
FAQ- Huihao hardware mesh product limited
1. What screening machines our woven wire screen mesh could fit for?
Huihao company offers a wide variety of replacement screens and screening products to fit the
following screening machines.
Powerscreen / Extec / Fintec / Sandvik / Finlay / McCloskey / Screen Machine / Metso
2. How to get the quotation?
Commonly used goods should be informed of material, specification and quantity.
Customized products also require customers to provide drawings.
3. How to arrange transportation?
For samples, international express service is usually used. DHL, TNT, UPS,FEDEX
If the order is less than 100kg, it usually uses air transportation and door-to-door service.
For bulk goods, sea containers are usually used.
4. How to ensure the product quality?
Our factory has ISO9001-2015 certificate qualification, and provides material list and factory inspection report.
We can first confirm the samples and arrange production after passing the tests.
We also accept third-party inspection.
We are Alibaba's gold medal supplier and can place orders directly on Ali to enable credit insurance services.
