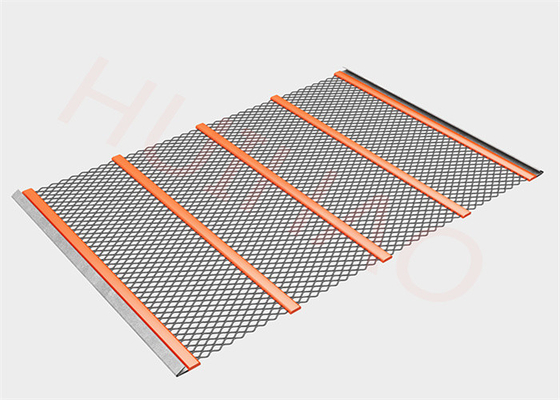

10mm Replacement Shape Self Cleaning Wire Mesh Anti Clogging For Quarrying Industry

10mm Replacement Shape Self Cleaning Wire Mesh Anti Clogging For Quarrying Industry
10mm Replacement Shape Self Cleaning Wire Mesh Anti Clogging For Quarrying Industry 10mm Replacement Shape Self Cleaning Wire Mesh Anti Clogging For Quarrying Industry 10mm Replacement Shape Self Cleaning Wire Mesh Anti Clogging For Quarrying Industry 10mm Replacement Shape Self Cleaning Wire Mesh Anti Clogging For Quarrying Industry

Large Image :  10mm Replacement Shape Self Cleaning Wire Mesh Anti Clogging For Quarrying Industry

Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO9001-2008
Model Number: shape wire screens
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Steel Pallet Or Wooden Pallet
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 10000pcs per month

10mm Replacement Shape Self Cleaning Wire Mesh Anti Clogging For Quarrying Industry

Description
Name: Anti-clogging Replacement Shape Wire Screens Wire Diameter: 0.9mm-10mm
Material: Spring Steel, Carbon Steel, Manganese Steel, Stainless Steel Opening: 2.24mm - 62mm
Type: Max-S Pattern, Max-V Pattern Shape, Max-D Pattern Edge: Hooked Edge Is Available
High Light:

anti clogging self cleaning wire mesh

,

quarrying industry self cleaning wire mesh



Anti-clogging Replacement Shape Wire Screens Made For The Quarrying Industry



Quick Details



If you’re screening aggregates that often cause blinding and pegging, you may consider the shape wire screens.

The shape wire screen is made from high-quality piano wire, which allows each individual wire to independently

vibrate. That allows materials to pass through more easily, keeping aggregates from sticking to the individual wires.



>Both carbon steel and stainless steel wires are available

>There are 3 kinds: Max-S pattern, Max-V pattern shape, Max-D pattern
>Providing precise and effective screening
>Preventing materials build-up, pegging and blinding



Specifications

Material: High carbon steel wire, spring steel wire, manganese steel and stainless steel.

Wire diameter: 0.9mm - 10mm.

Opening size: 2.24mm - 62mm

(Special size also could be customized as your request.)

Surface treatment: Galvanized or painted.

Edge: Hooked edge is available.



>>> Max-D pattern Shape Wire Screen



    10mm Replacement Shape Self Cleaning Wire Mesh Anti Clogging For Quarrying Industry 0

Max-D Pattern Shape Wire Screen



1. Eliminate blinding and clogging

2. Higher open area than traditional square mesh

3. Increase production and lower costs

4. Accurate sizing

5. Wear resistance, corrosion resistance

6. High screening efficiency – up to 40 % more throughput



Item Wire Diameter Opening
Max-D Pattern  1.6mm 5/32″
Max-D Pattern  1.6mm 2.0mm 3/16″
Max-D Pattern  1.6mm, 2.0mm, 2.5mm 1/4″
Max-D Pattern  mm, 2.5mm 5/16″
Max-D Pattern  2.0mm, 2.5mm, 3.0mm 3/8″
Max-D Pattern  2.5mm, 3.0mm, 3.5mm 7/16″
Max-D Pattern  3.0mm, 3.5mm 1/2″
Max-D Pattern  3.0mm, 3.5mm 9/16″
Max-D Pattern  3.0mm, 3.5mm, 4.0mm 5/8″
Max-D Pattern  3.5mm, 4.0mm, 5.0mm 3/4″
Max-D Pattern  4.0mm, 5.0mm 7/8″
Max-D Pattern  5.0mm, 6.0mm 15/16″
Max-D Pattern Shape Wire Screens 5.0mm, 6.0mm 1″
Max-D Pattern Shape Wire Screens 5.0mm, 6.0mm 1 1/8″
Max-D Pattern Shape Wire Screens 5.0mm, 6.0mm 1 1/4″
Max-D Pattern Shape Wire Screens 5.0mm, 6.0mm 1 1/2″
Max-D Pattern Shape Wire Screens 5.0mm, 6.0mm 1 3/4″
Max-D Pattern Shape Wire Screens 5.0mm, 6.0mm 1 15/16″



>>> Max-V pattern Shape Wire Screen



    10mm Replacement Shape Self Cleaning Wire Mesh Anti Clogging For Quarrying Industry 1

Max-V pattern Shape Wire Screen



1. For high impact, heavy load screening

2. Could replace trtaditional fine mesh to betther reduce blinding

3. Last over three times longer than other standard screens

4. Precise sizing



Item Wire Diameter Opening
Max-V Pattern  1.6mm 1/8″
Max-V Pattern  2.0mm 3/16″
Max-V Pattern  2.0mm, 2.5mm 1/4″
Max-V Pattern 2.5mm 5/16″
Max-V Pattern  2.0mm, 2.5mm, 3.0mm 3/8″
Max-V Pattern  2.5mm, 3.0mm, 3.5mm 7/16″
Max-V Pattern  3.0mm, 3.5mm 1/2″
Max-V Pattern  mm, 3.5mm 9/16″
Max-V Pattern  3.0mm, 4.0mm 5/8″
Max-V Pattern 4.0mm, 5.0mm 3/4″



>>> Max-S pattern Shape Wire Screen



    10mm Replacement Shape Self Cleaning Wire Mesh Anti Clogging For Quarrying Industry 2

Max-S pattern Shape Wire Screen



1. Eliminate severe blinding and clogging situation

2. Increase open area than Diamond openings

3. Maximum throughout

4. Ideal for removing fines



Item Wire Diameter Opening
Max-S Pattern  1.6mm 1/8″
Max-S Pattern  1.6mm 5/32″
Max-S Pattern  1.6mm, 2.0mm 3/16″
Max-S Pattern  2.0mm, 2.5mm 1/4″
Max-S Pattern  2.0mm, 2.5mm 5/16″
Max-S Pattern  2.5mm, 3.0mm 3/8″
Max-S Pattern  2.5mm, 3.0mm, 3.5mm 7/16″
Max-S Pattern  3.0mm, 3.5mm 1/2″
Max-S Pattern  3.0mm, 4.0mm 9/16″
Max-S Pattern  3.0mm, 4.0mm 5/8″
Max-S Pattern 4.0mm, 5.0mm 3/4″



Applications

Quarrying Industry

Mining Industry

Coal Production

Crushed Stone Applications

Screening Gravel

Organic Fertilizer Production

Topsoil Production

Screening Sand



Package

1. 20 pieces per wooden pallets. 2.25pallets per 20ft container 3. to be your request
