High Precision Spring Steel Woven Wire Mesh Screen For Mining Industries

Description

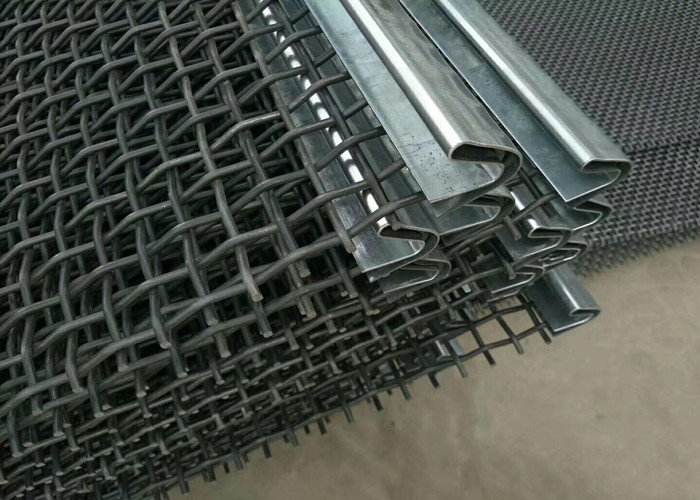

Name: High Precision Spring Steel Woven Wire Mesh Screen Wire Diameter: 0.71mm - 12.5mm
Material: Spring Steel, Carbon Steel, Manganese Steel, Stainless Steel Opening: 1mm - 100mm
Hook Type: C Or U Hook For 30° - 180° Opening Type: Square, Rectangular And Long Slot
Edge: Plain, Bent, Reinforced Shroud, Welded Shroud, Bolt Shroud Surface Treatment: Black Or Color Painted
High Light:

spring steel woven wire mesh screen

,

mining industries woven wire mesh screen

,

high precision woven metal mesh screen

High Precision Spring Steel Woven Wire Mesh Screen For Mining Industries



Quick Details



>>>Square Woven Wire Mesh Screen – Great Vibrating Screen Mesh With Robust Construction
Square wire mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying

and aggregating industries. Typically, it is made of wires of the same diameter that are crimped to form precise

square openings and achieve maximum rigidity. Its high tensile strength, excellent vibration resistance and long

service life make it a perfect choice for obtaining accurate screening results and services at best price.



Both high carbon steel and stainless steel wires are available
Flat top screens, double crimp screens and lock crimp screens are available
Excellent wear resistance and long service life.



High Precision Spring Steel Woven Wire Mesh Screen For Mining Industries 0 Plain Weave Woven Wire Mesh Screens
As simple as it can be. Plain weave screens are essential for the majority of screening applications. In this type of weave wires are bent and locked together to form a robust structure where each wire keeps the adjoining wires in place. Plain weave screens are typically square and are very common in under 25mm (1”) aperture size and can go up to 100mm (4”).
Inter Crimped Woven Wire Mesh Screens
Inter crimped woven wire screens help maintain the exact square aperture size. In this type of weave crimped wires get locked together in every third crimp leaving some of them free. This lock forms a robust structure where the holes are exactly square and each wire keeps the adjoining wires in place.
High Precision Spring Steel Woven Wire Mesh Screen For Mining Industries 1
High Precision Spring Steel Woven Wire Mesh Screen For Mining Industries 2 Lock Crimped Woven Wire Mesh Screens
Lock crimped woven wire screens are similar to plain weave screens but in this type the wires get an additional lock from each side of the panel for extra rigidity and a fixed opening size. This type of weaving works very well for aperture sizes over 25mm (1”) or where the aperture size/wire diameter proportions get larger. After this aperture the distance between the wire bends increases and an additional lock ensures the wires stay in place.
Flat Top Woven Wire Mesh Screens
Wires in flat top locked screens get locked only on one side of the panel. It comes with several benefits which include a fixed aperture opening size, perfectly locked wires, flat top of the screen for easier material flow and reduced wear.
High Precision Spring Steel Woven Wire Mesh Screen For Mining Industries 3

The following are some common size, we also could make according to your requirement

Hole size

(mm)
Light types Middle types Heavy types
wire diameter
(mm)
open area% wire diameter
(mm)
open area% wire diameter
(mm)
open area%
125.0     10.0 86 12.5 83
112     10 84 12.5 81
100     10 83 12.5 79
90     10 81 12.5 77
80     10 79 12.5 75
71     10 77 12.5 72
63 8 79 10 74 12.5 70
56 8 77 10 72 12.5 67
50 6.5 79 8 74 10 69
45 6.5 77 8 72 10 67
40 6.5 75 8 69 10 64
36 5.0 77 6.5 72 8 67
32 5.0 75 6.5 70 8 64
28 5.0 72 6.5 67 8 60
25 5.0 69 6.5 64 8 57
22 4.0 72 5.0 66 6.3 60
20 4.0 69 5.0 64 6.3 58
18 4.0 67 5.0 61 6.3 55
16 3.0 70 4.0 64 5 58
14 3.0 67 4.0 60 5 54
13 3.0 65 4.0 58 5 52
11 2.5 67 3.0 61 4 54
10 2.5 64 3.0 58 4 51
9 2.0 61 3.0 61 4.0 48
8 2.0 64 2.5 58 3.0 51
7 2.0 61 2.5 55 3.0 48
6 2.0 56 2.5 50 3.0 43
5 2.0 54 2.5 44 3.0 38
4.5 1.8 51 2.2 45 2.5 41
4 1.6 51 2.0 44 2.2 41
3 1.2 50 1.5 40 2.0 38
2.0 0.8 50 1.2 41 1.5 40



>>>Slot Woven Wire Mesh Screen–Perfect Mining Screen for Less Blinding & Pegging
Slot Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying

and aggregating industries. Typically, it is made of wires of the same diameter that are crimped to form precise

apertures. As such, slot wire mesh has a larger open area, a higher throughout and a better self-cleaning effect

than squarewire mesh.



Both carbon steel and stainless steel wires are available
Flat top screens and double crimp screens are available
Larger open area and better self-cleaning effect



High Precision Spring Steel Woven Wire Mesh Screen For Mining Industries 4

Slotted Rectangular Woven Wire Mesh Screens

1. Increased open areas than square mesh

2. Less blinding when screening damp material

3. Engineered to increase screening efficiency and reduce blinding

4. Improve effective wear life of screens

5. Wide range of openings and sizes to meet your requirements

6. Ideal when sizing accuracy is secondary to screening capacity



The following are some common size, we also could make according to your requirement

aperture (mm) wire diameter(mm) kg/m2 screening area%
0.70x2.10 0.44-0.66 2.04 67
1.00x3.00 0.60-0.70 2.23 51
1.50x4.50 0.80x1.00 2.04 67
1.50x20.00 1.25 4.18 51
1.50x50.00 1.25 4.12 53
2.00x20.00 1.60 5.41 51
2.00x50.00 1.50 4.59 56
2.50x50.00 1.60 4.77 59
3.20x16.00 1.60-1.25 4.43 61
3.50x50.00 1.60 3.97 67
6.00x60.00 2.80 7.5 65
10.00x60.00 4.00 10.55 67
12.00x60.00 4.00 9.50 70
20.00x100.00 8.00 18.77 66
22.00x80.00 8.00 18.46 67
22.00x100.00 8.00 17.18 68
24.00x120.00 8.00-6.30 19.05 62
25.00x120.00 8.00 15.55 71



Edges Of Woven Wire Mesh Screens



High Precision Spring Steel Woven Wire Mesh Screen For Mining Industries 5 High Precision Spring Steel Woven Wire Mesh Screen For Mining Industries 6
Plain Hooked Edge
Without Reinforcing, Edges are annealed before forming to eliminate cracking and breakage. Technical data R≥6, a=60°, H≥35mm, wire diameter common above 6mm to choose this edge.
Inside Reinforced Formed Edge
This hook edge type is utilized for screen mesh wire diameter 4mm or less than 6mm. Technical data: a=60°, H=25mm,L=25mm.
High Precision Spring Steel Woven Wire Mesh Screen For Mining Industries 7 High Precision Spring Steel Woven Wire Mesh Screen For Mining Industries 8
Reinforced Shroud Banded Edge
Provided as standard on screens up to 6.0mm wire diameter. Standard shrouding is 16 gauge with other thickness' available on request. Technical data: a=45°or 60°. plate thickness can be required.
End Tension Reinforced Shroud Banded Edge
Specially reinforced to prevent pull-out under extreme screen tensioning. Also available in Double Reinforced Style. Plate thickness can be required.
