Product Details:
|
| Name: | HDPE LDPE Bottle Flakes Recycling Machinery | Dimension(L*W*H): | 35mx5mx3.5m |
|---|---|---|---|
| Power: | 250kw | Row Material: | Hdpe,pe,pp |
| Warranty: | 1 Year | Production Capacity (kg/h): | 300-500 |
| Core Components: | Bearing, Gearbox, Motor | Automatic Grade: | Automatic |
| High Light: | pet bottle recycling washing line,hdpe plastic film washing machine,250kw plastic film washing machine |
||

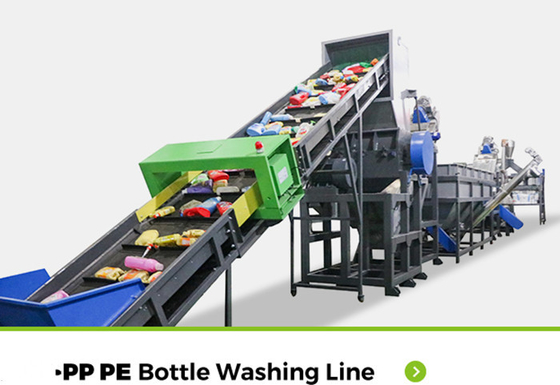

The whole production line can effectively recycle PE PP bottle (box,barrel,etc.) by procedure of crushing , washing, firction,drying ,etc.PE PP plastic recycling machine line is used to recycle the waste PE,PP plastics such as films,bags,rigid plastics(bottles,barrles,pipes...) and so on.
We can do different configurations based on your materials or requirements.All machines in this line can be sold separately.
|
Raw material&formulation
|
Post-consumer bottles
|
|
Capacity range
|
300kg/h
|
|
500kg/h
|
|
|
1000kg/h
|
|
|
2000kg/h
|
|
|
Description of final product
|
Moisture:below 1%
|
|
Particle size:17mm
|
|
|
Impurities:100 ppm
|
|
|
PVC label content 100 ppm
|
|
|
Production standard
|
CE ISO9001
|
|
Name
|
Power
|
|
Belt conveyor
|
2.2kw
|
|
Mechanical label remover
|
22kw
|
|
Manual separating table
|
1.5kw
|
|
Metal detector
|
0.4kw
|
|
Belt conveyor
|
2.2kw
|
|
Crusher
|
55kw
|
|
Screw conveyor
|
2.2kw
|
|
Floating washer
|
2.2kw+2.2kw+2.2kw
|
|
Screw conveyor
|
2.2kw
|
|
Hot washer
|
36kw
|
|
Screw conveyor
|
2.2kw
|
|
High speed frication machine
|
22kw
|
|
Screw conveyor
|
2.2kw
|
|
Screw conveyor
|
2.2kw
|
|
Floating washer
|
2.2kw+2.2kw+2.2kw
|
|
Screw conveyor
|
2.2kw
|
|
Vetical dewatering machine
|
11kw
|
|
Drying system
|
36kw+7kw
|
|
Zig zag air classification system
|
11kw
|
|
Storage hopper
|
Siemens contact
Japan Fuji invertor
Japan Omron temperature controller
|
