Product Details:
|
| Name: | Plastic Recycling Machine Plant | Core Component: | Bearing, Gearbox, Motor |
|---|---|---|---|
| Machine Color: | Blue White Or Designed By Customer | Key Words: | PET Bottle Washing Plastic Recycling Machine |
| Total Weight: | 25Ton | Voltage: | 380v/415v/440v |
| Final Product: | PET Flakes | Warranty Of Core Components: | 1 Year |
| High Light: | pet bottle flakes plastic recycling line,washing dewatering pelletizing plastic recycling line,415v plastic washing recycling line |
||

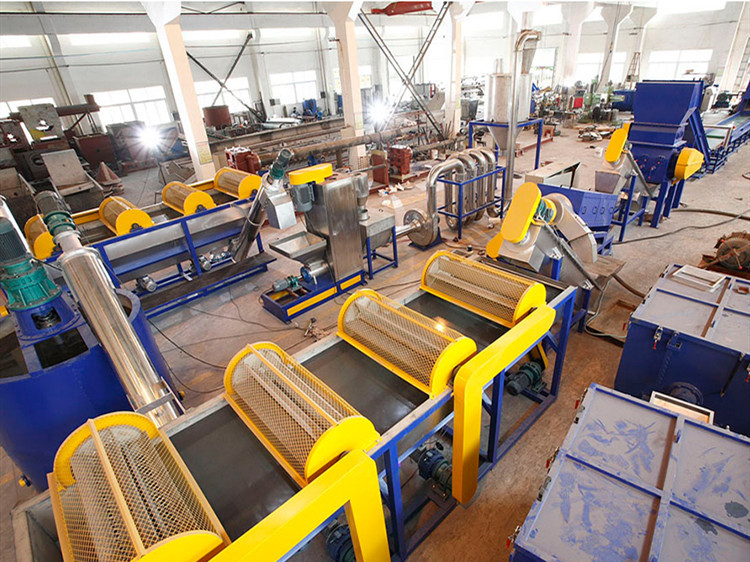

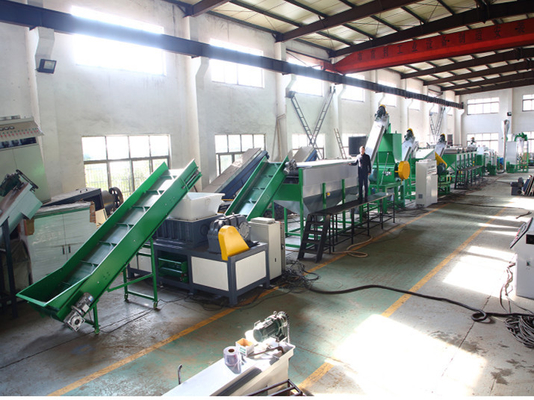

Belt conveyor → Bale opener machine → Belt conveyor → Pre-washer (trommel) →Belt conveyor → Mechanical label remover → Manual separating table → Metal detector →Belt conveyor → Crusher *2→ Screw conveyor*2 → Floating washer →Screw conveyor → Hot washer chamber *2 →Screw conveyor*2 → High speed friction machine → Screw conveyor → Floating washer → Screw conveyor →Floating washer →Screw conveyor → Horizontal dewatering machine → Drying pipe system → Zig zag air classification system → Storage hopper → Control cabinet
|
Model
|
CAPACITY
(KG/H)
|
POWER CONSUMPTION
|
WATER CONSUMPTION(TON/HOUR)
|
HUMIDITY CONTENT
|
|
MT-300
|
300KG/H
|
150KW
|
3ton/h
|
＜1%
|
|
MT-500
|
500KG/H
|
230KW
|
4-5ton/h
|
＜1%
|
|
MT-1000
|
1000KG/H
|
270KW
|
6-7ton/h
|
＜1%
|
|
MT-2000
|
2000KG/H
|
370KW
|
8ton/h
|
＜1%
|
|
MT-3000
|
3000KG/H
|
420KW
|
10ton/h
|
＜1%
|
|
NO.
|
DESCRIPTION
|
AA level (ppm)
|
A level (ppm)
|
|
1
|
PVC content
|
≤25
|
≤100
|
|
2
|
PE/PP color flake/metal and other impurity content
|
≤75
|
≤100
|
|
3
|
Total impurity
|
≤100
|
≤150
|
|
Belt conveyor Control method: |
Bale opener machine Stirring motor:7.5kw*2 |
Manual separating table Dimension (L*W*H): 8000*1000*1200mm |
|
Trommel (pre washer) Dimension(L*W):5000*1500mm; |
Mechanical Label remover machine Motor Power:11/22/37KW; |
Floating washer Dimension(L*W): 4500*1500mm |
|
Crusher Motor power: 37/55/90kw |
Horizontal dewatering machine Motor power: 22/37/45kw |
High speed friction machine Motor power: 22/37/45Kw |
