Product Details:
|
| NAME: | Plastic Recycling Washing Line | Production Capacity (kg/h): | 300-1000 |
|---|---|---|---|
| Key Selling Point: | Film Crush Washing Machine | Material Of Washing Part: | STAINLESS STEEL 304 |
| Power(W): | 250KW | Dimension(L*W*H): | 35MX5MX3.5M |
| Material Processed: | Recycling And Washing | Plastic Type: | PP,PE |
| High Light: | 300kg/h plastic recycling line,agricultural films washing plastic recycling line,dirty films plastic washing recycling line |
||

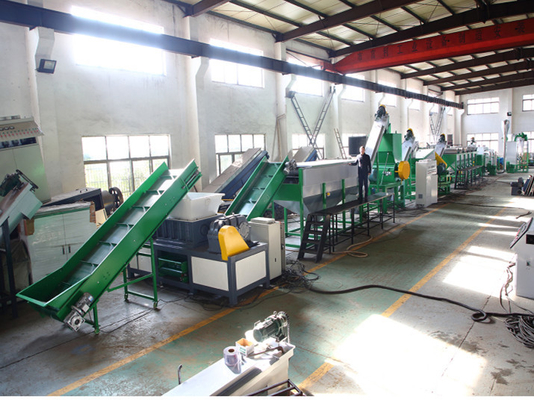

Working Flow Of plastic recycling washing line
Belt conveyor * 2 → Crusher * 2 → Screw friction washer* 2 → Floating washer →Screw friction washer →Floating washer →Screw conveyor → High speed friction machine → Screw conveyor → Two direction horizontal separating screw → Squeezer machine* 2 →Storage hopper → Control cabinet
|
Model
|
CAPACITY (KG/H)
|
POWER CONSUMTPION(KW)
|
WATER CONSUMPTION(TON/HOUR)
|
MAN POWER
|
HUMIDITY CONTENT
|
|
MPE-300
|
300KG/H
|
125KW
|
3TON/H
|
2-3
|
≤2%
|
|
MPE-500
|
500KG/H
|
260KW
|
4-5TON/H
|
3
|
≤2%
|
|
MPE-1000
|
1000KG/H
|
350KW
|
6TON/H
|
4
|
≤2%
|
|
MPE-2000
|
2000KG/H
|
480KW
|
7-8TON/H
|
4-5
|
≤2%
|
Advantages of plastic recycling washing line
1. Final products has good quality. When process PP PE film bags, final products humidity below 2-4%.
2. The machine with high efficiency, working stable, large capacity etc.
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service life time.
4. World famous brand components applied on the production line
5. The whole production line with CE certification, ISO9001 certification .
