- Made of fine steel
- Adjustable hole position
- Can be repeatedly polished
- Double the service life
|
Product Details:
|
| Name: | PET PP PE PVC Waste Plastic Crusher | Shaft Design: | Single |
|---|---|---|---|
| Dimension(L*W*H): | According To The Modle | Production Capacity (kg/h): | 500 |
| Usage: | Bottle Crusher | Power (kW): | 37 |
| Screen Mesh: | 14-16mm Or Customized | Screen Material Thickness: | 10mm |
| Fixed Blade: | 4-6pcs | Blade Material: | D2/SKD-11/9Crisi |
| High Light: | PET PP Waste Plastic Crusher,PE PVC Waste Plastic Crusher,37KW Plastic Crushing Recycling Machine |
||

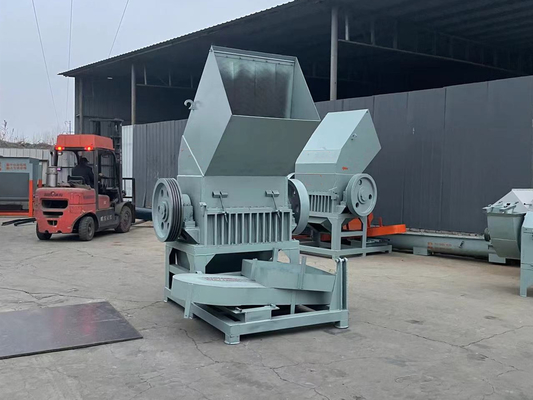

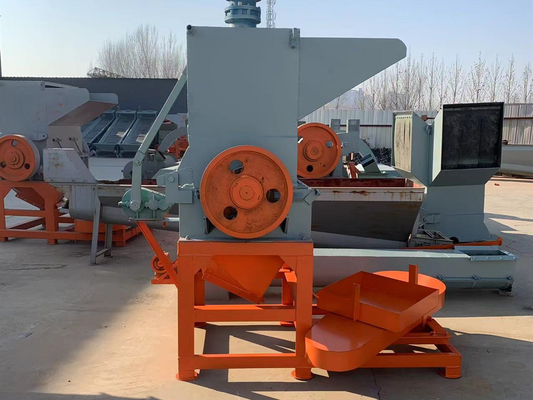

This S-series plastic crusher/granulator/grinder(pet bottle crusher) is mainly used for plastic PET bottles, plastic PE PP bottles, buckets, hollow containers and so on. With special designed structure, it will get more capacity with less power consumption.
| H-Series Plastic Crusher Machine | |||||
| Model | H-600 | H-800 | H-1000 | H-1200 | H-1500 |
| Rotary blade(pcs) | 8 | 8 | 8 | 12 | 12 |
| Fixed blade(pcs) | 4 | 4 | 4 | 4 | 6 |
| Speed(rpm) | 500 | 500 | 500 | 500 | 500 |
| Motor power(kw) | 30 | 37/45 | 45/55 | 55/75 | 75/90 |
| Capacity(kg/h) | 300 | 500 | 800-1000 | 1000-1500 | 1500-2000 |
| Weight(kg) | 2500 | 3000 | 3200 | 3800 | 4500 |
1. Frame is made by solid square tube steel.
2. Shaft is made by 45# steel with quenching treatment.
3. Chamber is made by solid steel 40mm thickness.
4. Screen mesh is made by 10mm thick steel for durable use.

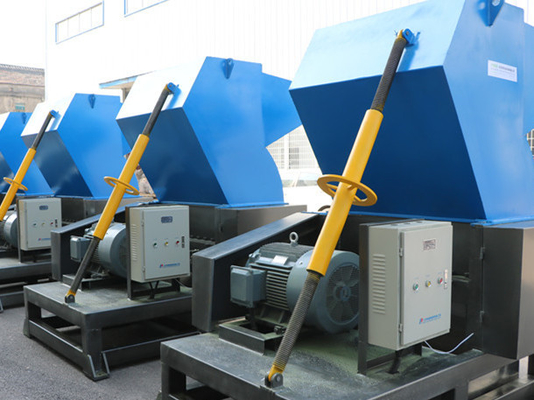

5. Easy-disassembling design, chamber is opened by motor automatically, which is simple and labor-saving to clean and maintain, and also convenient to change the blades.
6. Bearing house installed outside of the crusher chamber so no dirty goes inside which prolong the lifespan.
7. plastic crusher Machine upside chamber is higher and covered by belt no flakes popped out.
8. Blades are made by famous brand SKD-II from Japan with top quality.
9. huihao plastic crusher machine Special designed cross-type cutter structure ensure high capacity and low power consumption.
 |
Alloy steel blade
|
|

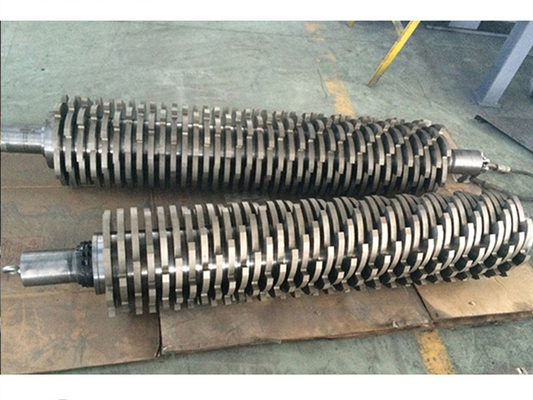

Rotor Design
|
|
Motor
|
