Product Details:
|
| Name: | PP PE Film Plastic Recycling Washing Line | Production Capacity (kg/h): | 300-5000 |
|---|---|---|---|
| Max.Production Capacity (kg/h): | 2000 | Power (kW): | 300 |
| Voltage: | 380V 50HZ | Dimension(L*W*H): | 45mx3mx4m |
| Weight (T): | 10 | Final Product: | Clean Flakes |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Warranty Of Core Components: | 1 Year |
| High Light: | 300KW Plastic Recycling Washing Line,PP PE Plastic Recycling Washing Line,5000kg/H Bottle Washing Recycling Line |
||
|
Model
|
Capacity
|
Installed Power
|
Hot Washing
|
Water Supply
|
Area Required(L*W*H)
|
|
HE-300
|
300 kg/hr
|
200 kw
|
Optional
|
6-8 m3/hr
|
40*4*5 m
|
|
HE-500
|
500 kg/hr
|
350 kw
|
Optional
|
8-10 m3/hr
|
40*4*5 m
|
|
HE-1000
|
1000 kg/hr
|
600 kw
|
Optional
|
15-20 m3/hr
|
55*6*6 m
|
|
Crusher Machine
Function: Crushing the film/bags into small pieces, wet working with water, can also choose shredder instead |

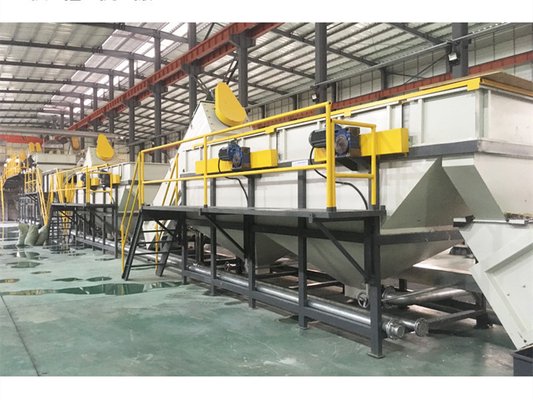

Floating Washing Tank
Function: Washing out the dirty from the film or bags material by paddles, tank material is made by SUS 304 |
|
High Speed Friction Washer
Function: Washing out the sand, soil and dirty water from the material with high rotary speed 1500 rpm, machine contact the material is made by SUS304 |
Hot Washer Tank
Function: With hot water and chemical reagent to washing off the oil, glue and dirty(This is optional choice), machine contact the material is made by SUS304 |
|
Film Dewatering Machine
Function: Remove the water out from the material, machine contact the material is made by SUS304 |

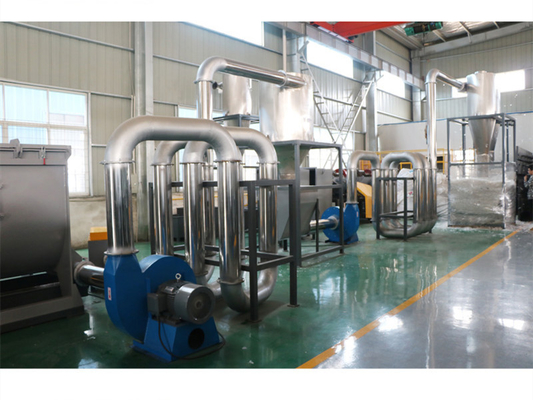

Pipe Drying System
Function: With hot air further drying the material, machine contact the material is made by SUS304 |
