Product Details:
|
| Name: | Pe Pp Washing Line | Max.Production Capacity (kg/h):: | 1000 |
|---|---|---|---|
| Production Capacity (kg/h): | 300-2000 | Voltage: | 380 V 50 HZ 3P |
| Warranty Of Core Components: | 1 Year | Final Moisture: | 1% |
| Raw Material: | ABS PS HDPE LDPE LLDPE BOPP PE PP | Flakes Size: | 16-22mm |
| Crusher Blade: | D-2 | Bearing Brand: | NSK SKF |
| High Light: | NSK SKF Waste Plastic Recycling Plant,125KW Waste Plastic Recycling Plant,Hdpe Bottle Flakes Recycling Machine |
||
Type1-Economic Model
|
Model
|
Capacity
|
Installed Power
|
Water Supply
|
Area Required :m
|
|
MEB-300
|
300kg/hr
|
100KW
|
4-5m³/hr
|
20*4.5*5
|
|
MEB-500
|
500kg/hr
|
115KW
|
5-6m³/hr
|
20*4.5*5
|
|
MEB-1000
|
1000kg/hr
|
125KW
|
7-8m³/hr
|
23*5*5
|
|
MEB-1500
|
1500kg/hr
|
180KW
|
8-10m³/hr
|
25*5*5
|
|
MEB-2000
|
2000kg/hr
|
225KW
|
10-15m³/hr
|
28*5*5
|
|
Model
|
Capacity
|
Installed Power
|
Water Supply
|
Area Required:m
|
|
MEB-300
|
300kg/hr
|
130KW
|
5-6m³/hr
|
38*4.5*5
|
|
MEB-500
|
500kg/hr
|
145KW
|
7-8m³/hr
|
38*4.5*5
|
|
MEB-1000
|
1000kg/hr
|
190KW
|
8-10m³/hr
|
42*5*5
|
|
MEB-1500
|
1500kg/hr
|
230KW
|
10-15m³/hr
|
45*5*5
|
|
MEB-2000
|
2000kg/hr
|
280KW
|
15-20m³/hr
|
45*5*5
|
|
Rubber belt+Metal detector
belt made by rubber,using long time
use semi automatic metal check metal
before material to go crusher machine
|
|

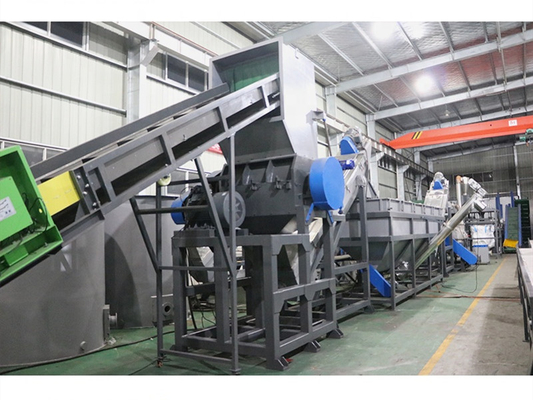

Plastic crusher machine
with water crushing dirty platic water will pre washing the flakes
Use D-2 material more higher HRC than SKD-II,9crsi
Save cost for customer
Use the big roller bearing ensure its long time Bearing house is outside of the crusher chamber so no dirty goes inside for longer use
|
|
High speed friction washing machine
600 RPM high speed rotor the shaft dirty sand,soil etc ,it will be drain out the bottom,screen inner welding 2 water pipe, 1 pipe continuous fresh water rinse the flakes another pipe rinse , clean the screen reduce the maintain cost
|
|

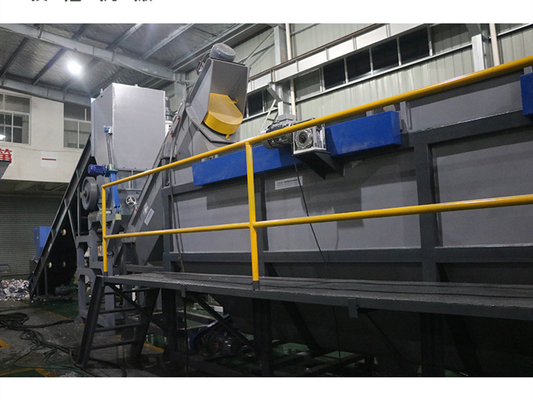

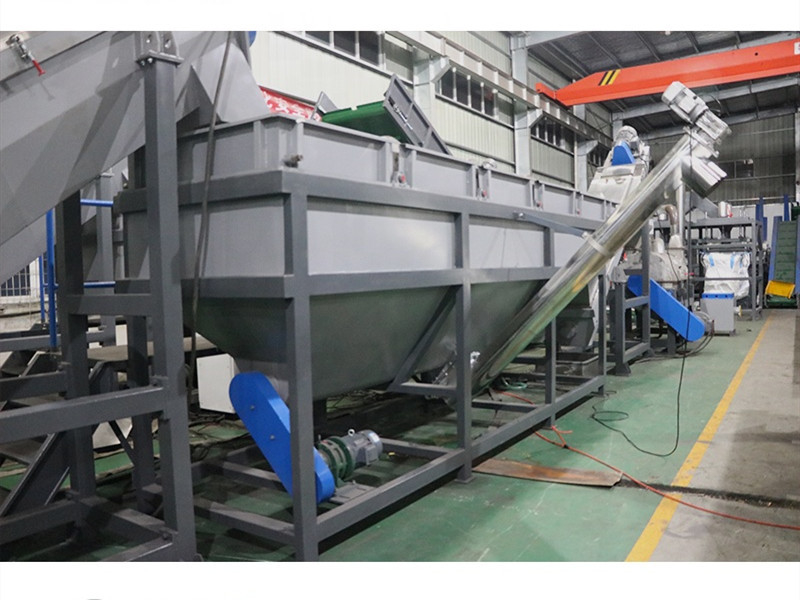

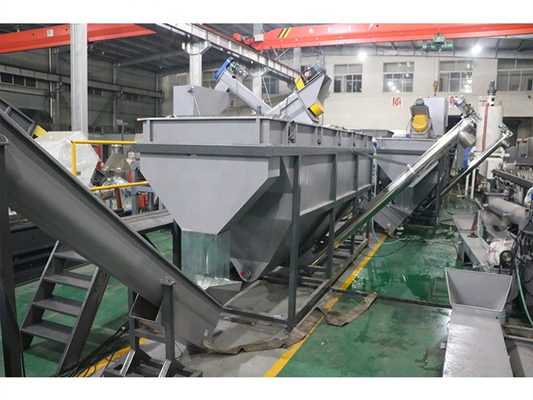

Float washing tank
by 8m length washing tank high efficiency washing the flakes.
using roller loading the flakes to next process roller speed control by inverter
dirty garbage will down the water tank , with 380 mm bottom screw lift it out
|
|
High speed dewatering machine
1500 RPM high speed rotor dewatering , dirty water will be drain out at machine bottom
moisture content roughly 3%
use round design screen ,high efficiency for flakes rotary ,friction
all made by stainless steel ,min screen hole diameter 2.5 mm for customer
|
|
Hot Air+Zig zag label separator machine
48KW thermocouple heating the air
219mm diameter pipe and 15-18 m length for better dryer moisture content roughly 1% with double chamber and top cyclone silo,blower high efficiency separator label,flakes
|
|
Automatic scale weight system
BY PLC automatic control packing the plastic flakes to jumbo bags
|
