50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line

50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line
50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line 50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line 50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line 50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line 50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line

Large Image :  50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line

Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO9001-2015
Model Number: hh/500-5000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Stretch film and wooden case as international sea shipment standards for PET recycling machine
Delivery Time: 10 work days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month

50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line

Description
Machine Type: PET Bottle Washing Line Max.Production Capacity (kg/h): 4500
Power (kW): 800 Core Components: PLC, Bearing, Gearbox, Motor, Gear, Pump
Crusher Balde: SKD-11 Label: LESS THAN 50PPM
RAW MATERIAL: PET Waste Plastic Bottle Function: Making Clean PET Bottle Flakes
KEY WORD: PET Plastic Bottle Recycling Production Line Final Flakes Size: 10-12MM
High Light:

PLC PET Bottle Recycling Line

,

50PPM PET Bottle Recycling Line

,

800KW Dirty Flakes Production Line

Waste Plastic PET Bottle Recycling Washing Line / Dirty Flakes Production Line

1Labor saving. The bale opening and feeding system we provide will equally feed the material.
2You can use the manually sorting system to selecting out different color bottles and non-PET material (we also supply automatic bottle sorting system,but the cost higher).
3The Line With Automatic Metal detector which used to take out any kind of metal from the PET bottles.
4Crusher Grinder machine with water crushing ,Use D-2 blade by USA Standard.
5Hot washing tank with electric heating water or by steam boiler system.
6High speed friction washing dewatering machine and drying system will insure the final PET flakes moisture <1%.
7by Zig zag dust separator machine,it will remove the final labels from the flakes to guarantee the PVC content.
8The line with automatic bottle color,material sorting,insure the pet flakes purify.
9By Automatic scale weight system,easy for worker precision packaging and weight.



Specification of Waste Plastic PET Bottle Recycling Washing Line / Dirty Flakes Production Line

Model
Capacity
Installed Power
Steam Use
Water Supply
Manpower
Area Required
HH-500
500 kg/hr
190 KW
Optional
4-5 m3/hr
4-6 Person
60*5*5 m
HH-1000
1000 kg/hr
260 KW
Optional
6-8 m3/hr
8-10 Person
80*8*5 m
HH-2000
2000 kg/hr
400 KW
Suggest Use
10-15 m3/hr
10-12 Person
80*8*5 m
HH-3000
3000 kg/hr
600 KW
80,000 Kcal
20-30 m3/hr
12-16 Person
100*8*10 m
HH-4000
4000 kg/hr
800 KW
100,000 Kcal
30-40 m3/hr
15-20 Person
135*10*10 m
HH-5000
5000 kg/hr
1000 KW
120,000 Kcal
40-50 m3/hr
15-20 Person
135*10*10 m



Equipment list of Waste Plastic PET Bottle Recycling Washing Line, Dirty Flakes Production Line

50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line 0

Bale Opener

Function: It is used for scattering the baled material such as PET bottles and HDPE PP bottles.

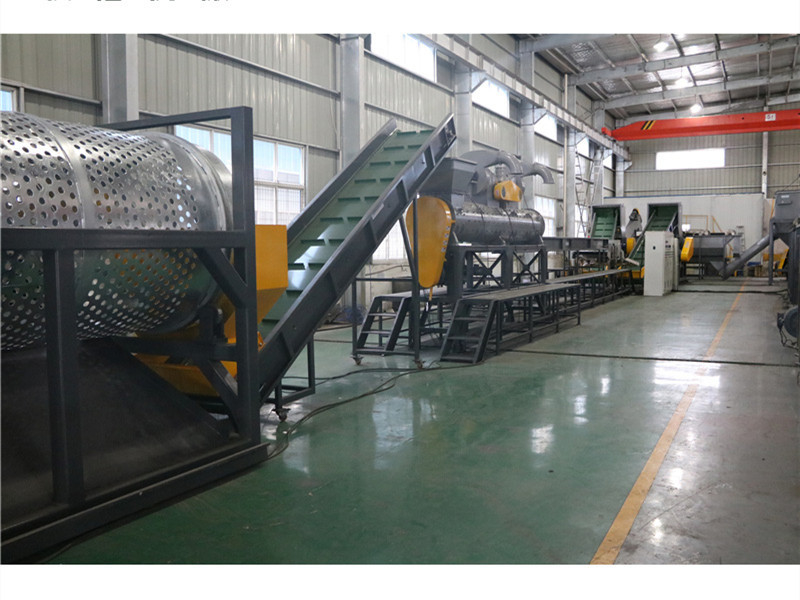

Trommel Machine

Function: Loosen the bottles, remove the sand or stone from bottles, feeding out bottles constantly.

50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line 1

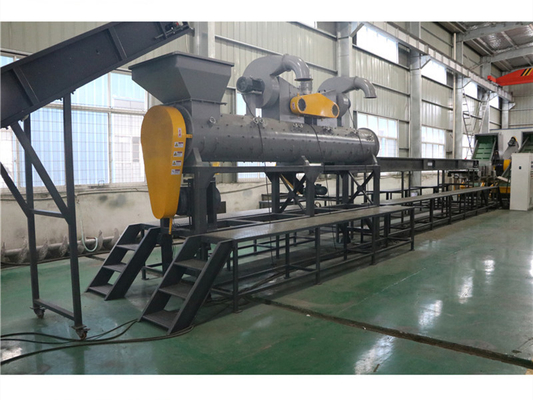

Label Remover Machine

Function: Remove out the labels from the waste PET bottles. Completely changes the status of artificial stripping label

Pre-washer Machine (Optional Choice)

Function: With hot steam to pre-wash the bottles and remove out the dirty.

50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line 2

Manual Sorting Belt (with high platform)

Function: Sorting out the remain labels manually, selecting out different color and Non-PET bottles.

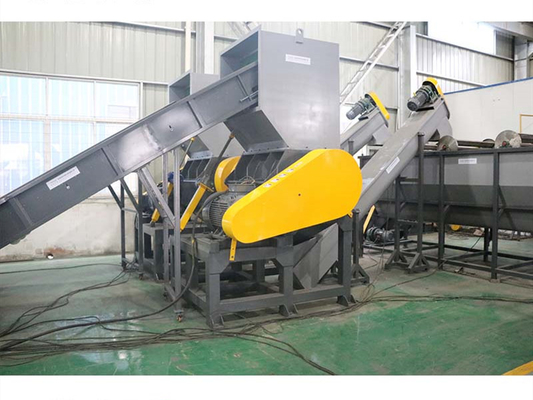

Plastic Crusher Machine

Function: Crushing the bottles into small flakes, wet working with water.

50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line 3

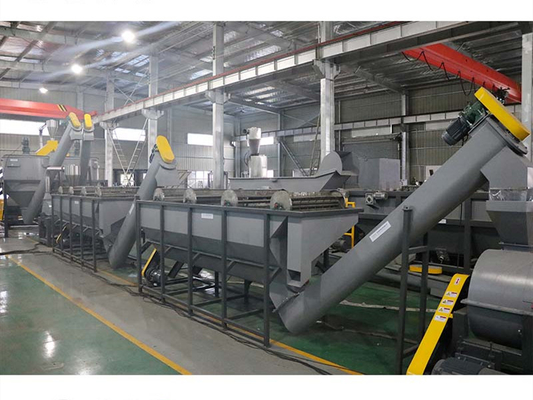

Floating Washing Tank

Function: Washing out the floating caps, rings and dirty from the bottle flakes.

Hot Washer Tank

Function: With hot water and chemical reagent to washing off the oil, glue and dirty.

50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line 4

Horizontal Dewatering Machine

Function: Remove the water from the bottle flakes.

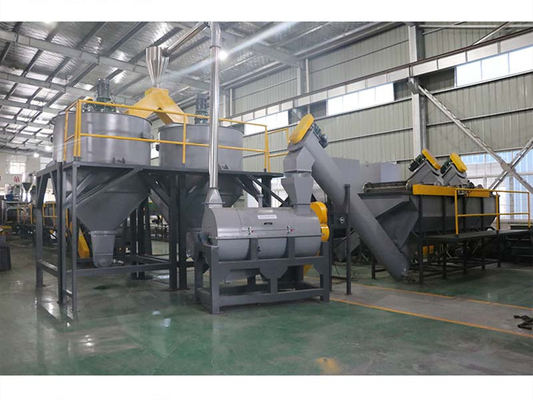

Pipe Drying System

Function: With hot air drying the bottle flakes.

50PPM PET Bottle Recycling Line PLC 800KW Dirty Flakes Production Line 5

Zig-zag Air Classifier

Function: Remove residual fines/dust/labels.

Color Sorter (Optional Choice)

Function: Sorting out the different color of flakes.
