Product Details:
|
| Product Name: | Self Adhesive Insulation Fasteners | Common Size: | 50x50mm |
|---|---|---|---|
| Pin Diameter: | 2.7mm 3mm | Pin Length: | 20mm-150mm |
| Accessories: | Insulation Washer ,insulation Dome Cap | Usage: | Fixing Rock Wool Layer |
| Certificate: | Iso 9001 | OEM/ODM: | Support |
| High Light: | 12ga self adhesive insulation pins,odm self adhesive insulation pins,12ga self stick insulation pins |
||

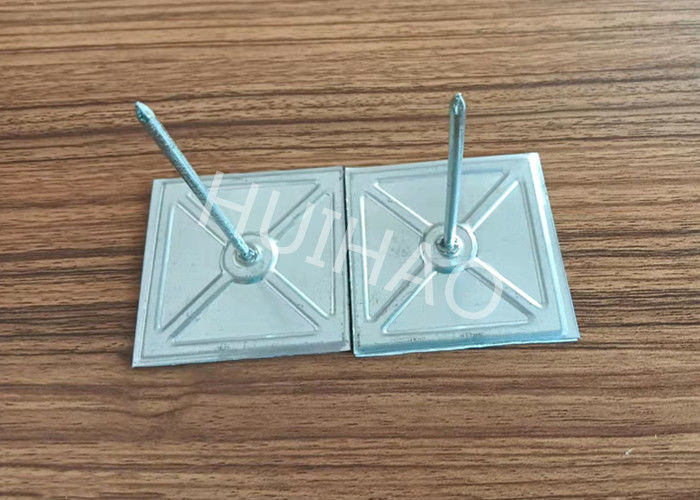

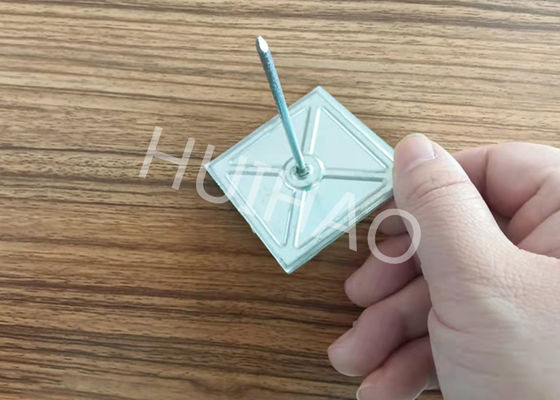

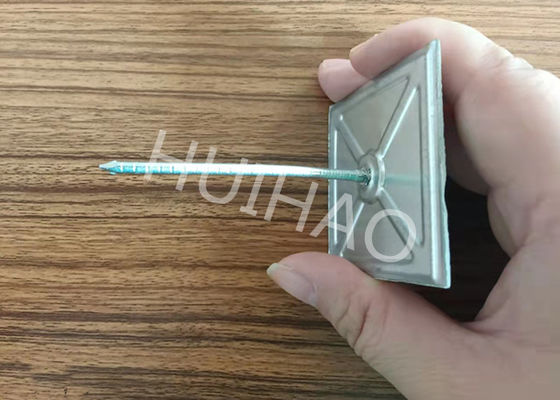

Square type base: 50mmx50mm / 1mm
Pin diameter: 12ga (2.7mm), 3mm in common
Pin Material: anneaded mild steel wire, anneaded stainless steel wire for sperical orders.
Pin Finished: zinc coated, copper plating
Pin length: from 38mm to 230mm, others can be customization.

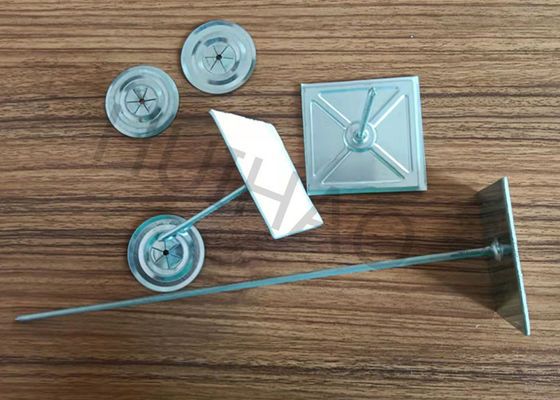

Installation parts: including round self locking washer, square self locking washer and dome cap washers
rock wool metal stick pins are easily install any type of insulation up to 3.5" thick to air ducts, metal buildings, concrete foundations - even to the underside of wooden roofs. Insulation Hangers are perfect for installing fiberglass or rubber insulation blankets or polystyrene board. Insulation Hangers have a sticker backing to make placing easier. They also have a unique Easy-Peel adhesive backing design so that there isn't any
fumbling with the release paper.
|
12ga self adhesive insulation fasteners |
||
| pin diameter | tape base | pin length |
| 12 ga (.106)/ 3mm | 50mm Square | 1 |
| 12 ga (.106)/ 3mm | 50mmSquare | 1-5/8 |
| 12 ga (.106)/ 3mm | 50mm Square | 2-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 3-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 4-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 5-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 6-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 8" |
| 12 ga (.106)/ 3mm | 50mm Square | 8-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 9-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 10-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 12" |
1.Work surfaces should be clean and dry ,free of dust ,grease ,oil and any other loose matter
2.Remove the protective release paper taking care not to touch the adhesive
3. place the hanger in the required position and the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of
adherence is achieved after 24 hours
Insulation Fixing Pins is with high penetration strength with all types of thermal insulation boards, suitable for brick and conrete walls.
|
PIN LENGTH |
CARTON SIZE |
QTY/CARTON |
|
38MM |
41CMX28CMX17CM |
1000PCS |
|
50MM-65MM |
41CMX28CMX17CM |
500PCS |
|
70MM-84MM |
30CMX28CMX29CM |
500PCS |
|
90MM-120MM |
30CMX30CMX30CM |
500PCS |
|
130MM-160MM |
30CMX30CMX35CM |
500PCS |
|
170MM-203MM |
30CMX30CMX28CM |
250PCS |
|
OTHERS |
SUPPORT CUSTOM |
