Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall

Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall
Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall
Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall

Large Image :  Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall

Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO
Model Number: PERFORATED BASE PIN
Payment & Shipping Terms:
Minimum Order Quantity: 10000
Packaging Details: 500 pcs perforated base insulation pins per carton.
Delivery Time: 8 work days
Payment Terms: L/C, T/T
Supply Ability: 380000 pcs per month
Contact Now

Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall

Description
Name: Perforated Base Insulation Pins Usage: Locked Inter Insulation Materials
Base Size: 2" Pin Diameter: 12ga In Common
Pin Length: 63mm -280mm Type: Accessories
Material: Galvanized Steel Standard: ISO
Finish: Zinc Plated
High Light:

2" insulation hanger studs

,

zinc plated insulation hanger studs

,

zinc plated 2" metal insulation hangers



2" Square Perforated Base Insulation Pins For Fixing Glass Wool On Wall



Quick details of the perforated base insulation pins



  • pin diameter: 12 ga ( 2.67 mm ) in standard,  2.5mm , 3 mm and 3.4mm in common.
  • pin material: annealing steel wire in standard, aluminum wire and stainless steel wire are available.
  • base size: 2" in standard, 40 mm  and 25mm are available.
  • base material: hardness mild steel and hardness stainless steel sheet.
  • finished: zinc coated or copper coated for mild steel pin, polished for stainless steel pin.



Specification details of perforated base insulation pins



modle BASE TYPE SUPPORT NAIL DIA LENGTH OF NAILS
SQ-50-55 0.5MM X50MM 2.7MM, 3MM 55MM
SQ-50-63 0.5MM X50MM 2.7MM, 3MM 63MM
SQ-50-70 0.5MM X50MM 2.7MM, 3MM 70MM
SQ-50-90 0.5MM X50MM 2.7MM, 3MM 90MM
SQ-50-100 0.5MM X50MM 2.7MM, 3MM 100MM
SQ-50-110 0.5MM X50MM 2.7MM, 3MM 110MM
SQ-50-120 0.5MM X50MM 2.7MM, 3MM 120MM
SQ-50-130 0.5MM X50MM 2.7MM, 3MM 130MM
SQ-50-140 0.5MM X50MM 2.7MM, 3MM 140MM
SQ-50-160 0.5MM X50MM 2.7MM, 3MM 160MM
SQ-50-180 0.5MM X50MM 2.7MM, 3MM 180MM
SQ-50-203 0.5MM X50MM 2.7MM, 3MM 203MM
SQ-50-230 0.5MM X50MM 2.7MM, 3MM 230MM
SQ-50-250 0.5MM X50MM 2.7MM, 3MM 250MM

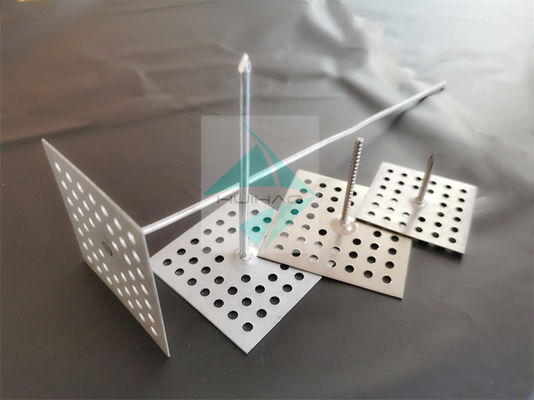

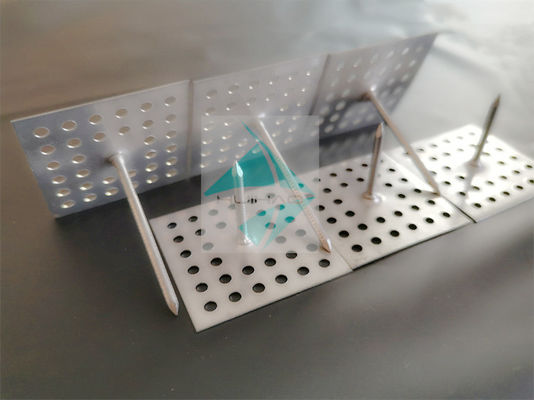

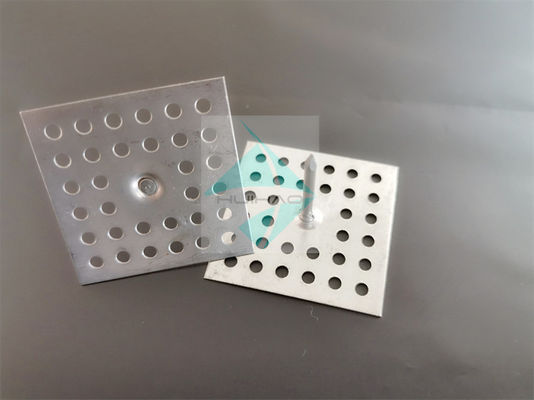

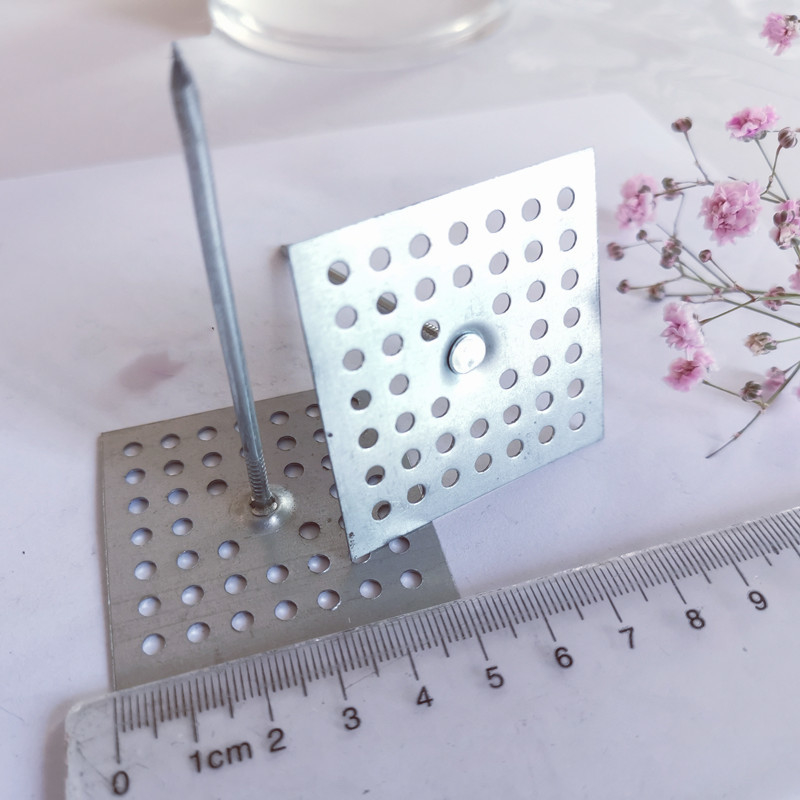

Image details of perforated base insulation pins



Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall 0

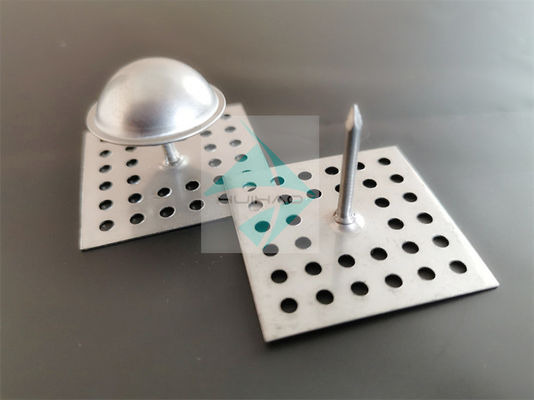

Installation parts- self locking washer and dome caps

Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall 1



Huihao company



Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall 2

Square 2" Zinc Plated Perforated Base Insulation Hanger Studs Pins Fixing Glass Wool On Wall 3
