|Name:||PET Bottles Grinding Washing Drying Line||Max Production:||5000kgs/h|
|Machine Type:||PET Bottle Washing Line||Plastic Type:||Pet|
5000kgs/h pet bottle washing line,
5000kgs/h pet recycling line
machine details of PET Bottles Grinding Washing Drying Line, Custom Waste Plastic Recycling Line
|photo||name||size details||Functional characteristics|

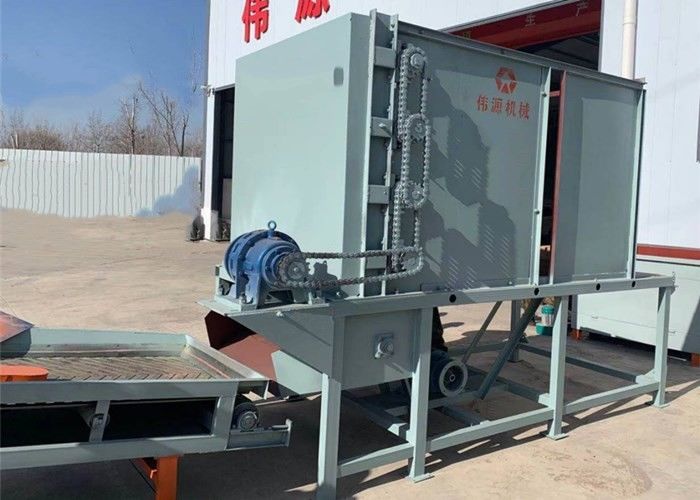

|The bottle bricks are disassembled, and the unpacking speed can be adjusted|

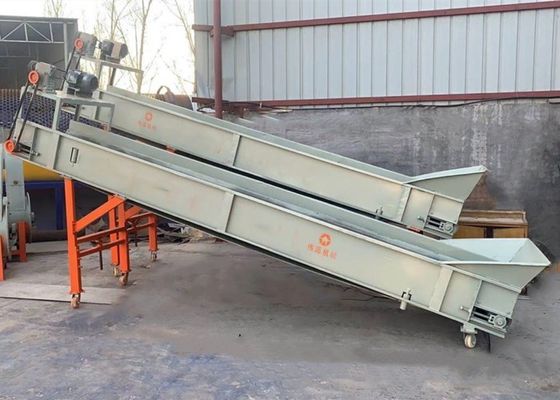

|conveyor machine||1000mmx5000mm||Conveying the disassembled flat bottles to the roller screen|
|tommel screen||φ2000x5000mm||Screen bottles to remove impurities|

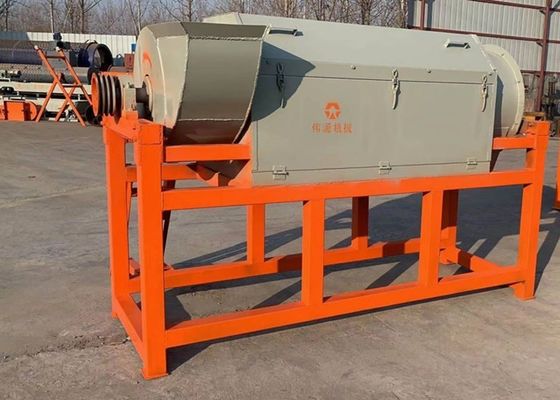

|lable removing machine||Φ 720x5000mm, new alloy sand knives, double bellows and double fans||Remove the trademark from the bottle|

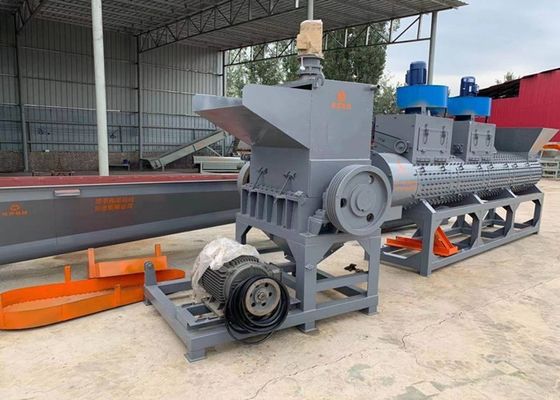

|crusher||The crushing chamber is 1200x700mm with hydraulic cover lifting device||Break the bottle into 12-20mm pieces|

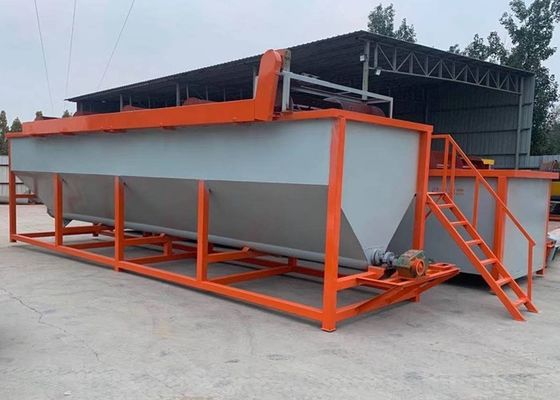

|cleaning tank||It is 6 meters long, 2 meters wide and 1.8 meters deep, with a screw diameter of 0.5 meters and a bottle cap collection device||Float the bottle cap in the sheet material and separate it out|

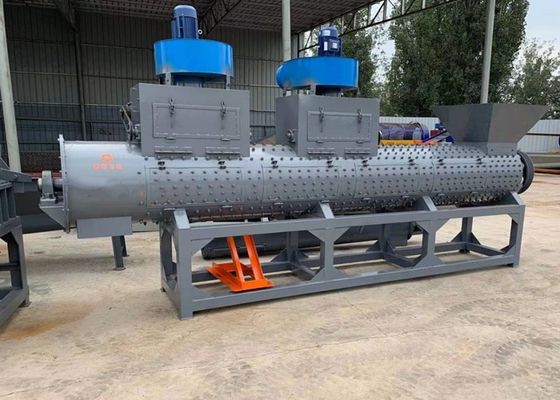

|drying system||Diameter 800*2500mm, full screen, screen material 304 stainless steel||Remove impurities and moisture from bottle slices|
1. We change the scheme according to the requirements of customers for output and purity.
2. motor brand:siemens beide/wannan.
(1).Q: Can we send sample for customizing the machine?
A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your
product and other demand.
(2).Q: If we have problem on machine or production, can you help us?
A: Yes, no problem. We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We
offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year
guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem.
Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.
Contact Person: zhijing.gao
