Galvanized Steel 2 Inch Metal Insulation Hangers With Perforated Base

Galvanized Steel 2 Inch Metal Insulation Hangers With Perforated Base
Galvanized Steel 2 Inch Metal Insulation Hangers With Perforated Base Galvanized Steel 2 Inch Metal Insulation Hangers With Perforated Base Galvanized Steel 2 Inch Metal Insulation Hangers With Perforated Base Galvanized Steel 2 Inch Metal Insulation Hangers With Perforated Base

Large Image :  Galvanized Steel 2 Inch Metal Insulation Hangers With Perforated Base

Product Details:
Place of Origin: China
Brand Name: Huihao
Model Number: Insulation Hangers
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: 500pcs per carton, carton size 28cm x29cm x31cm or to be your request
Delivery Time: 15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300000pcs per 15 days

Galvanized Steel 2 Inch Metal Insulation Hangers With Perforated Base

Description
Material: Galvanized Steel Or Stainless Steel Or Aluminum Base Size: 2" X 2" As Standard, Other Size Could Be Customed
Base Thickness: 0.4mmm-0.8mm Pin Diameter: 12ga As Standard, Other Could Be Customed
Pin Length: 1" To 12" Name: Metal Insulation Hangers
High Light:

insulation hangers

,

insulation wall plugs

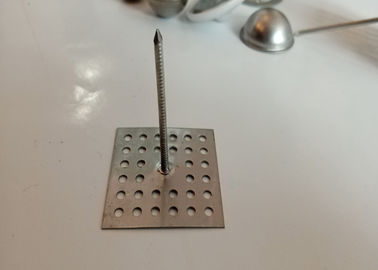

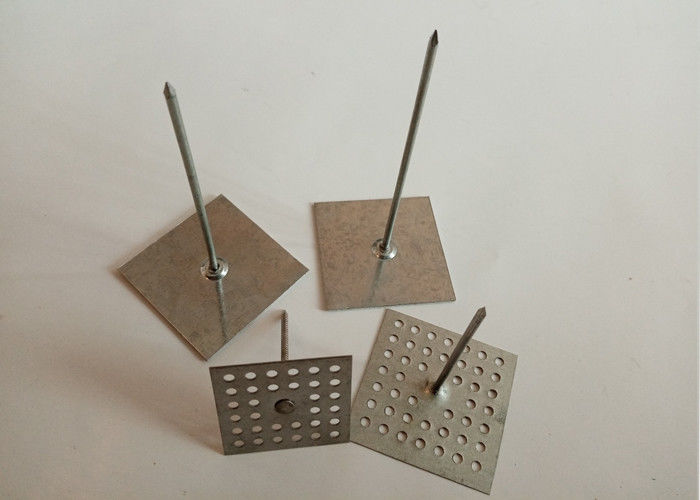

                                                                   Metal Insulation Hangers With Perforated Base



>> >> >> Introduction To The Perforated Base Insulation Hangers



Perforated baseinsulation pins are made of metal nail and square perforated base.

Base material: galvanized steel, stainless steel

Base size: 50*50mm/40*40mm or to be your requirement

Base thickness: 1mm or to be your requirement

Pin material: mild steel or aluminum 1100 grade or stainless steel

Pin diameter: 12ga(2.7mm) /3mm /10ga(3.4mm) or to your requirement

Pin length: 1" to 12"



Galvanized Steel 2 Inch Metal Insulation Hangers With Perforated Base 0



>> >> >> Specification of metal insulation hangers



Base Size Pin Diameter Pin Length
2''X2'' 12ga ( 0.106'' ) 1''
2''X2'' 12ga ( 0.106'' ) 1 5 / 8''
2''X2'' 12ga ( 0.106'' ) 2 1 / 2''
2''X2'' 12ga ( 0.106'') 4 1 / 2''
2''X2'' 12ga ( 0.106'' ) 6 1 / 2''

Other size also could be customed.



Note:



>> Perforated base material are 0.4-0.7mm galvanized steel or stainless steel sheets

>> Pins material include three types: mild steel, galvanized steel and stainless steel

>> Pins diameter are from 1.8mm to 3mm

>> In order to avoid rust and increase the service life,

the surface of the iron material is galvanized or copper-plated.



Galvanized Steel 2 Inch Metal Insulation Hangers With Perforated Base 1



Features of metal insulation hangers



Corrosion resistance

Efficiency

Eco friendly product

Long surving life

Sturdy construction



>> >> >> Application Of The Perforated Insulation Hangers



Pin length 45mm: Used for 38mm 75# Fiberglass Duct Wrap
Pin length 63mm: Used for 50mm Fiberglass Rigid Board / Foam Board
Pin length 114mm: Used for 100mm Fiberglass Rigid Board / R-13

Pin length 165mm: Used for R-19 Fiberglass Batt Insulation

Pin length 240mm: Used for R-30 Fiberglass Batt Insulation
Pin length 317mm: Used for R-38 Fiberglass Batt Insulation



>> >> >> Package And Delivery of metal insulation hangers



1. insulation pin length less than 65mm, 1000pcs per carton, 64 cartons per pallets.
2. insulation pins length 70mm-120mm, 500pcs per cartons,64 cartons per pallets.
3. insulation pins length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.
4. as your requirement



Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommand you by SEA ,or by AIR if in an emergency.
