Stainless Steel Wire rope Mesh Used For Stair Balustrade

Large Image : Stainless Steel Wire rope Mesh Used For Stair Balustrade

Product Details:

Place of Origin:	China
Brand Name:	huihaokasite
Certification:	ISO9001-2015
Model Number:	ferrule flexible rope mesh

Payment & Shipping Terms:

Minimum Order Quantity:	30 square meters
Price:	USD45/M2
Packaging Details:	packed in carton box or wooden box. Or can be customized
Delivery Time:	within 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 square meters per 28 days

Contact Now

Stainless Steel Wire rope Mesh Used For Stair Balustrade

Description

Material:	Stainless Steel 316. 304	Cable Standard:	7x7(1.5mm, 2mm, 2.5mm), 7x19(3mm, 4mm)
Aperture:	25mmx43mm To 200mmx346mm	Degree:	60
Width:	0.5-2meter	Length:	30 Meters
Highlight:	woven wire screen mesh , architectural steel mesh

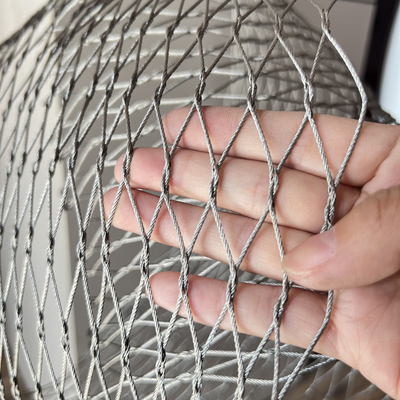

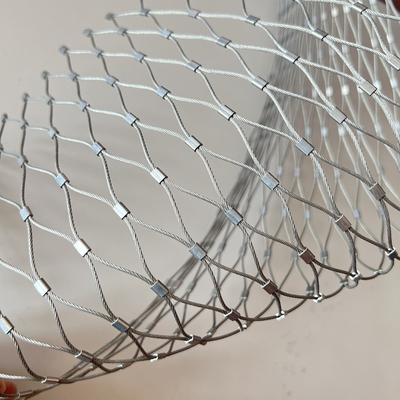

Stainless Steel Wire Rope Mesh Used For Stair Balustrade

Product Specifications

Attribute	Value
Material	Stainless Steel 316, 304
Cable Standard	7x7 (1.5mm, 2mm, 2.5mm), 7x19 (3mm, 4mm)
Aperture	25mmx43mm to 200mmx346mm
Degree	60
Width	0.5-2 meter
Length	30 meters

Product Features

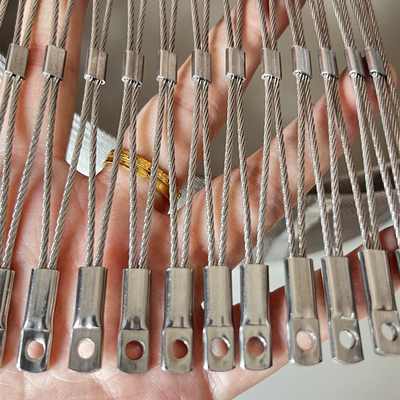

Ferrule Flexible Stainless Steel Cable Mesh With Frame Used For Stair Balustrade

Cable Mesh Material: 304, 316
Wire Diameter: 1.2 mm
Cable Wire Construction: 7*7
Mesh Type: Ferruled Mesh
Orientation: Vertical, Horizontal
Cable Mesh Angle: 60 degree in shape diamond
Flow Of Production: 100% Hand Made
Mesh Finished: Stainless Steel Polished
Usage: Staircases, Balustrades
Supply Ability: 300 Square Meter/Square Meters per Week

Type	Breaking Load (KN)	Wire Dia. (MM)	Mesh Opening (MM)
7 X 19	7.38	3.2	120x120,102x102, 90x90,76x76,51x51
7 x 19	4.18	2.4	102x102, 90x90,76x76,51x51
7 x 7	3.17	2.0	76x76,60x60,51x51,38x38
7 x 7	2.17	1.6	76x76,51x51,38x38, 30x30,25.4x25.4
7 x 7	1.22	1.2	51x51, 38x38,30x30 25.4x25.4,20x20

Custom Services

Pattern design support according to the application
Frame design support according to the installation
Surface treatments support, include PVDF, PVD, Spraying
Supply install accessories, include screw, wall anchor, track, bolt and others
Material options: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
Weave type options: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
ISO9001-2008 Quality certification management system

Accessories
