Product Details:
|
| Name: | Tun False Bottoms | Slot: | 0.7mm, 0.75mm, 0.8mm, 1.0mm, Customized |
|---|---|---|---|
| Diameter: | 200mm To 2500mm | Support Bar: | 3mmx5mm |
| Customization: | Support | Small Order: | Available |
| High Light: | johnson wedge wire screens,johnson well screen |
||
Specification of Wedge Wrapped Johnson Wire Screen, Craft Beer Brewing Mash Tun False Bottoms
___________________________________________________________________________________
johnson wedge wire screen panels plate is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. Each
intersection point of this wire is fusion welded. The V or wedge shaped profile wire wraps around the support rods over the full length of the screen
creating a continuous slot openingetter
|
Normal Name |
Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc. |
|
Diameter Range (MM) |
200mm To 2500mm. Diameter Customized |
|
Normal Diameter (MM) |
29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc |
|
Normal Slot (MM) |
0.7mm, 0.75mm, 0.8mm, 1.0mm, customized |
|
Normal Thickness (MM) |
8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.
|
|
Sections & shape |
1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized |
|
Wedge wire (MM) |
2x4MM Wedge Wire, 3x5MM Wedge Wire |
|
Support Rod (MM) |
3x5MM V shaped Support Rod, 3x5mm Square Support Rod |
|
Strengthen Rod (MM) |
Thickness and Height according to the diameter and screen thickness |
|
Note |
Usually customized. |
Features of Wedge Wrapped Johnson Wire Screen, Craft Beer Brewing Mash Tun False Bottoms
___________________________________________________________________________________
A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life
Applications of Wedge Wrapped Johnson Wire Screen, Craft Beer Brewing Mash Tun False Bottoms
___________________________________________________________________________________
water treatment equipment
environment protection
the sea water desalination
water softening treatment
oil and chemical processing
terminal filtration for petroleum products
filtration for chemical acid and soda liquid
alcohol and other organic solvents recycle filtration.

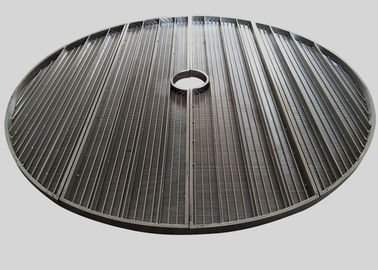

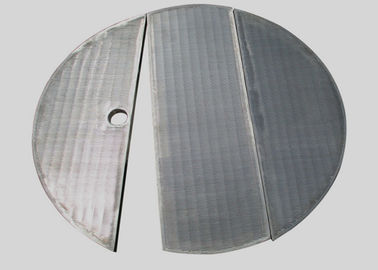

images of Welded Lauter Tun Screen
___________________________________________________________________________________
