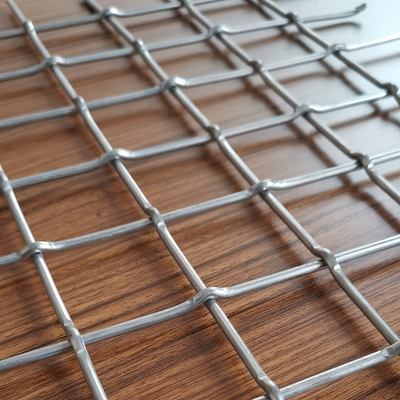

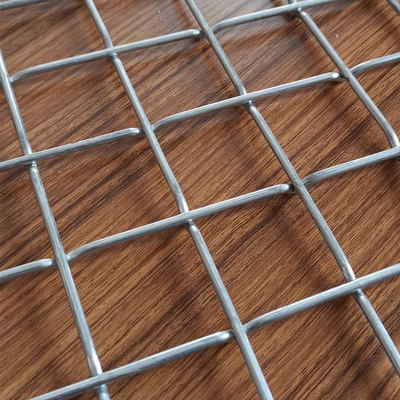

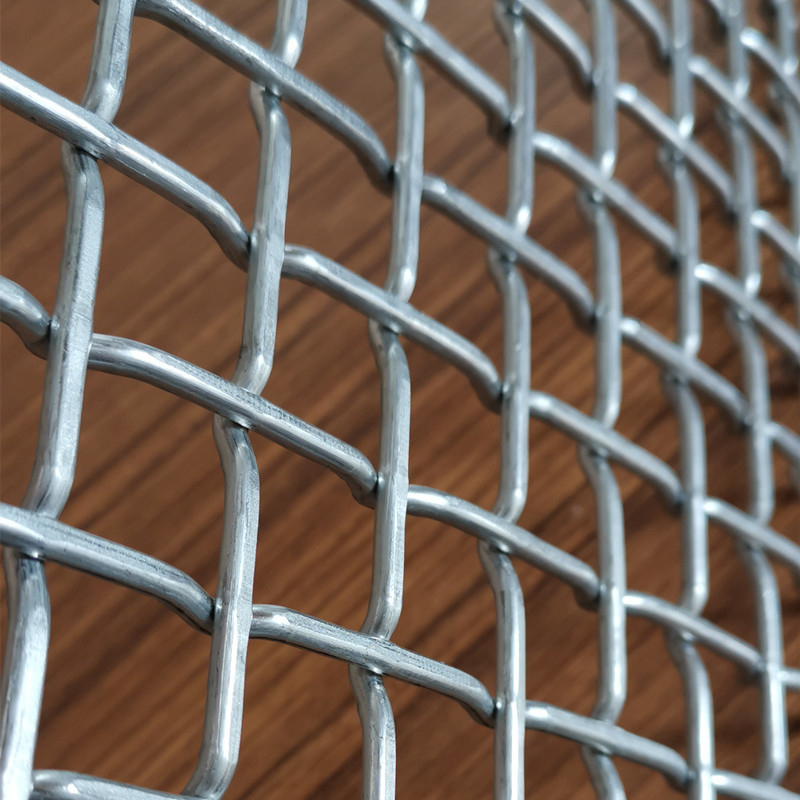

Anti blocking Type Quarry Steel Screen Mesh

Crimped woven wire mesh offers great dimensional strength and stability, excellent resistance to abrasion, uniform openings and superior anti-corrosion properties. It is commonly used as quarry screen in mining, quarrying and other industrial applications for sieving, grading and separating screening materials.

Available Configurations:

• Angles: 30°, 45°, 60°
• Crimped Wire Mesh Shapes: V-shaped, U-shaped
• Hook Types: C or U hook for 30°-180°
• Weaving Types: Double crimped, intermediate crimped, flat top crimped, lock crimped
• Mesh Types: Square, rectangular slot, long slot
• Surface Treatment: Anti-rust oil painted
• Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud

Double Crimp Wire Mesh: Manufactured with pre-crimped wires to obtain precise screening apertures and achieve maximum rigidity. Works well in conditions where materials are not sticky or have minimal tendency to peg or wedge.

Flat Top Wire Mesh: Features wires crimped on one side only to create a flat surface, enhancing durability and allowing bigger apertures with high precision. Ideal for coarse mineral screening.

Lock Crimp Wire Mesh: Both warp and weft wires are pre-crimped before weaving, creating bumps or joints at each intersection that lock the mesh in place, resulting in an extremely rigid product.

• 1-year warranty
• Availability of sufficient spare parts
• In-house design and inspection team
• All machines tested and adjusted before delivery
• 24-hour technical support via email or phone
• Installation and commissioning by our technicians available upon request
• Training available (buyer responsible for visa, return ticket, food and accommodation)
• Typically requires 1-2 technicians

• Bracket and auxiliary equipment packaged in plastic, spare parts in carton boxes
• Main machine secured in container with steel wire ropes for stability
• Requires one 20-foot or 40-foot container for shipment
