Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation

Large Image : Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO
Certification:	ISO
Model Number:	insulation anchor pins

Payment & Shipping Terms:

Minimum Order Quantity:	3000pcs
Packaging Details:	500pcs per carton, 48 cartons per pallet
Delivery Time:	7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	300000 pcs per month

Contact Now

Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation

Description

Material:	Galvanized Steel,	Nail:	Galvanized Steel Nail, Aluminum Nail
Base Type:	Perforated	Length:	15mm-250mm
Pin Diameter:	10ga, 12ga, 14ga	Base Size:	50mm X50mm
Highlight:	insulation pins and washers , insulation wall plugs

Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation

Drawing Of Perforated Base Insulation Anchor Pins:

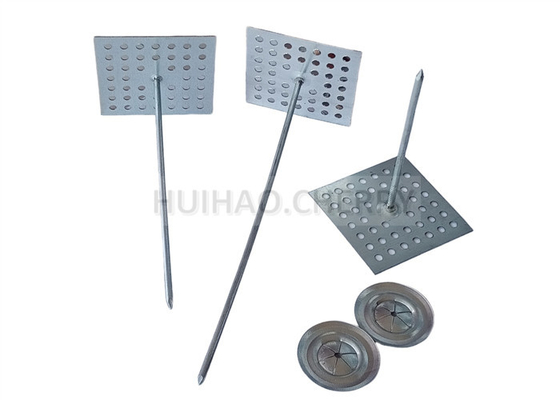

Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation 0

Specification Of Perforated Base Insulation Anchor Pins:

material	pin dia	base size	length
Galvanized steel ,ss , aluminum	12ga ( 0.106 " )	2''X2''	1/2"
Galvanized steel ,ss , aluminum	12ga ( 0.106 " )	2''X2''	1"
Galvanized steel ,ss , aluminum	12ga ( 0.106 " )	2''X2''	1-5/8"
Galvanized steel ,ss , aluminum	12ga ( 0.106 " )	2''X2''	2"
Galvanized steel ,ss , aluminum	12ga ( 0.106 " )	2''X2''	3-1/2"
Galvanized steel ,ss , aluminum	12ga ( 0.106 " )	2''X2''	4 1/2"
Galvanized steel ,ss , aluminum	12ga ( 0.106 " )	2''X2''	5 1/2"
Galvanized steel ,ss , aluminum	12ga ( 0.106 " )	2''X2''	6"
Galvanized steel ,ss , aluminum	12ga ( 0.106 " )	2''X2''	8"

Application Of Perforated Base Insulation Anchor Pins:

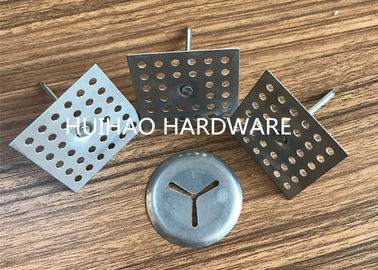

Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation 1

Application: It is fixed on the position where there is significant wind-suction-force or if the height is more than 20m or if the finishing coat is tile etc. Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing works, and for the duct-lining

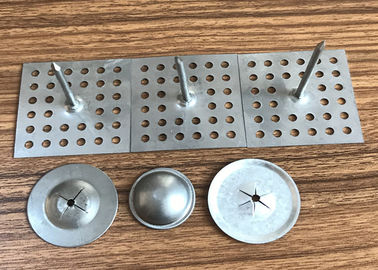

Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation 2

Related Products Of Perforated Base Insulation Anchor Pins- Self Locking Washer:

Round self-locking washer, or speed clip, is made primarily in mild steel, with standard stainless and aluminum sizes available. In several variations of round sizes, this insulation washer mounts on many types of insulation fasteners for capturing and holding insulation material in place. The gauge of the pin, or diameter, should match the fastener to be affixed, or "locked", onto. Popular diameters are 14 gauge, 12 gauge and 10 gauge---while overall, a wide variety of whole sizes are available in both standard and metric self-locking hole sizes which can range from 1/8" to 1/2".

Diameter	1	1-3/16	1-1/2	1-1/2	2"
Nominal Thickness	.015	.015	.015	.015	.015
Stnd Material	Galv	Galv	Galv	Galv	Galv
Pack	1000	1000	1000	1000	2000
Approx. Wgt/1000	4.2	4.8	8	8	14
Other Materials	S.S.	S.S.	S.S.

Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation 3
