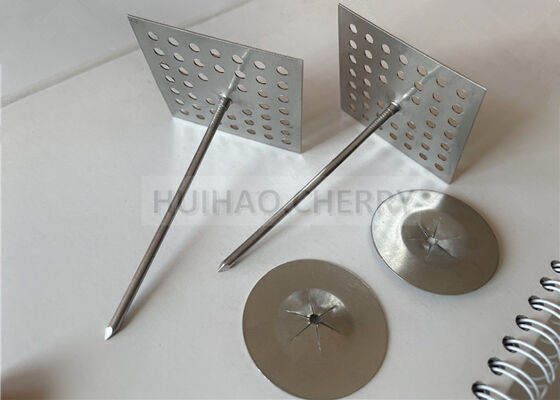

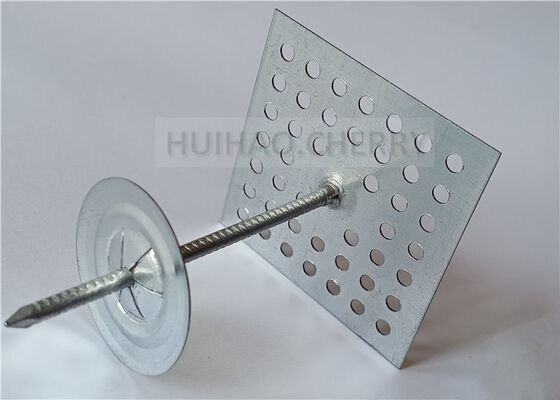

Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation

Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation
Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation

Large Image :  Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation

Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO
Model Number: Perforated Base Insulation Anchor Pins
Payment & Shipping Terms:
Minimum Order Quantity: 3000pcs
Packaging Details: 500pcs per carton, 48 cartons per pallet, as your requirement
Delivery Time: 7 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 300000 pcs per month

Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation

Description
Name: Perforated Base Insulation Anchor Pins Application: Fastening Rock Wool & Fiberglass Wool
Base Material: Galvanized Steel, Stainless Steel Base Size: 50x50mm
Pin Material: Galvanized Steel Nail, Aluminum Nail, Stainless Steel Nail Pin Diameter: 10ga, 11ga, 12ga
Accessories: Various Of Self Locking Washers Pin Length: 1" - 12"
Highlight:

insulation pins and washers

,

insulation wall plugs

Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation



Product Specifications

Perforated Base Insulation Anchor Pins supply high-quality fastening solution for rock wool and fiberglass wool insulation applications.

Huihao Hardware Mesh Product Limited is a professional manufacture of Perforated Base Insulation Anchor Pins, we choose high standard material, have fully automatic line and strict quality control system to make sure the good quality and quick delivery, if you are in need of Perforated Base Insulation Anchor Pins, please feel free to ask me a price or sample, my email is cherry@huihaomesh.com

Base Material: Galvanized steel, Stainless steel,
Nail Options: Galvanized steel nail, Stainless steel nail, aluminum nail
Base Type: Perforated
Length Range: 1" - 12"
Pin Diameter: 10ga, 11ga, 12ga
Base Size: 50mm x 50mm
Product Drawing
Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation 0
Detailed Specifications
Material Pin Diameter Base Size Length
Galvanized steel, SS, aluminum 12ga (0.106") 2"×2" 1/2"
Galvanized steel, SS, aluminum 12ga (0.106") 2"×2" 1"
Galvanized steel, SS, aluminum 12ga (0.106") 2"×2" 1-5/8"
Galvanized steel, SS, aluminum 12ga (0.106") 2"×2" 2"
Galvanized steel, SS, aluminum 12ga (0.106") 2"×2" 3-1/2"
Galvanized steel, SS, aluminum 12ga (0.106") 2"×2" 4-1/2"
Galvanized steel, SS, aluminum 12ga (0.106") 2"×2" 5-1/2"
Galvanized steel, SS, aluminum 12ga (0.106") 2"×2" 6"
Galvanized steel, SS, aluminum 12ga (0.106") 2"×2" 8"
Application
Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation 1
Designed for areas with significant wind-suction-force or heights exceeding 20m, or when finishing coat is tile. Ideal for:
  • Fixing adiabatic materials in air-conditioner ducts
  • Securing glass-wool and rock-wool in soundproofing applications
  • Duct-lining installations
Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation 2Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation 3
Related Products: Self-Locking Washer
Round self-locking washers (speed clips) are available in mild steel, with stainless steel and aluminum options. These washers mount on insulation fasteners to securely hold insulation materials in place.
Diameter 1" 1-3/16" 1-1/2" 2"
Nominal Thickness .015 .015 .015 .015
Standard Material Galvanized Galvanized Galvanized Galvanized
Pack Quantity 1000 1000 1000 2000
Approx. Weight/1000 4.2 4.8 8 14
Other Materials Stainless Steel Stainless Steel Stainless Steel

Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation 4



Why Choose Huihao Hardware Mesh Product Limited:



1. We sell what we manufacture, the price is good.
2. We choose the best quality materials to make sure the good quality.
3. We have fully automatic production line to make sure the quick delivery.
4. We have strict quality control system.
5. The material, the size, the package all could be customized according to customer's requirement.
6. We have free samples, for you to check the quality.



Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation 5Galvanized Steel Perforated Base Insulation Anchor Pins For Fastening Rock Wool & Fiberglass Wool Insulation 6
