Hook Type Steel Wire Mesh For Quarry Screen

Large Image : Hook Type Steel Wire Mesh For Quarry Screen

Product Details:

Place of Origin:	China
Brand Name:	huihaokasite
Certification:	ISO9001-2015
Model Number:	Heavy Woven Wire Screens

Payment & Shipping Terms:

Minimum Order Quantity:	20 PIECES
Price:	USD45/PC
Packaging Details:	PALLETS
Delivery Time:	8 WORK DAYS
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000 PCS PER 7 DAYS

Contact Now

Hook Type Steel Wire Mesh For Quarry Screen

Description

Material:	High Carbon Steel, Stainless Steel	Wire Diameter:	1mm-12mm
Aperture:	5mm-130mm	Width:	Less Than 3 Meters
Length:	To Your Order	Usage:	Qurry
Highlight:	crimped wire mesh , self cleaning screen

Hook Type Steel Wire Mesh For Quarry Screen

Product Specifications

Attribute	Value
Material	High carbon steel, stainless steel
Wire diameter	1mm-12mm
Aperture	5mm-130mm
Width	Less than 3 meters
Length	Custom to order
Usage	Quarry screening applications

Product Overview

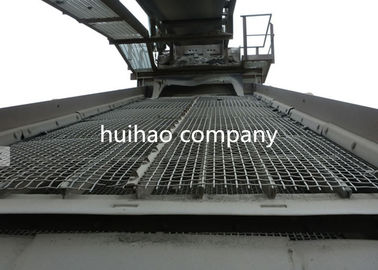

Our woven wire mesh quarry screens are manufactured in either high tensile steel or stainless steel, available in plain or intercrimp profiles with various weave patterns including square, rectangular, and double or triple shute configurations.

We maintain an extensive inventory of slab woven screens that can be custom-cut and hooked to size on demand. Our stock profiles are selected based on customer preferences and local conditions to minimize downtime, ensuring customized screens are shipped and ready for installation within days.

Technical Specifications

Hole size (mm)	Light types		Middle types		Heavy types
Hole size (mm)	Wire diameter (mm)	Open area %	Wire diameter (mm)	Open area %	Wire diameter (mm)	Open area %
125.0			10.0	86	12.5	83

Heavy Screen Edges & Hooks

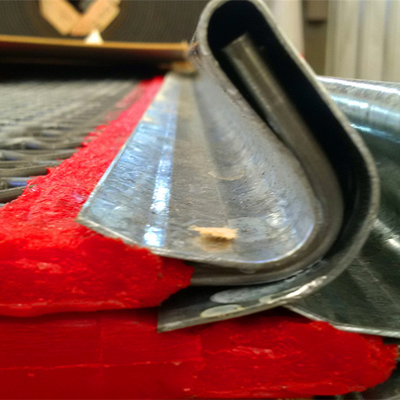

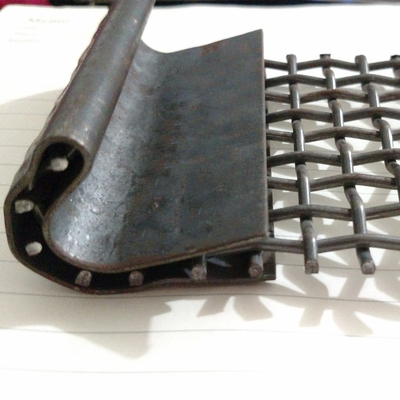

Our most efficient woven wire mesh quarry screens feature hooked edges for optimal tensioning. Unless otherwise specified, hooked edges for heavy and medium type screen cloths measure approximately 32mm long (from the inside of the bend to the end of the hook) at a 45-60º angle from the screen face. Lighter screen cloths typically use fold back or forward hooks measuring approximately 19mm high with a 13mm fold.

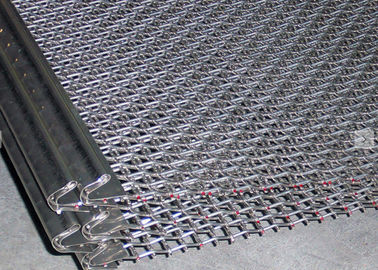

Side Edge Hooks

Ideal for most stationary inclined and horizontal screens
