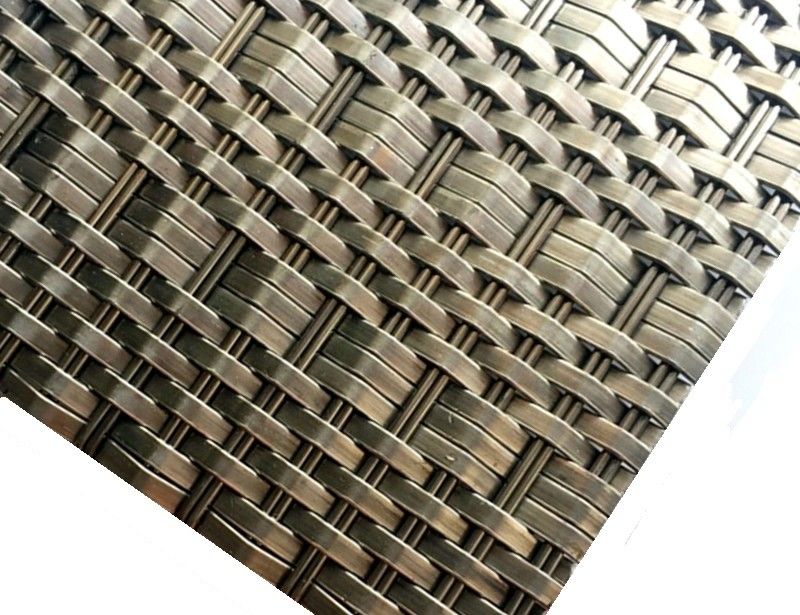

Stainless Steel Woven Wire Fabric , Decorative Architectural Rigid Mesh Facade

Stainless Steel Woven Wire Fabric , Decorative Architectural rigid Mesh Facade

production details of Stainless Steel Woven Wire Fabric , Decorative Architectural Rigid Mesh Facade

Decorative wire mesh can be specially woven with super quality stainless steel, aluminum alloy, brass, copper or other alloy materials.

Metal wire mesh fabrics are now catching the eyes of modern designers. It is widely used as curtains, screens for dining hall, isolation in

hotels, ceiling decoration, Animal containment and security fencing.With it's versatility, unique texture, variety of colors, durability and flexibility,

metal wire mesh fabric offers a modern decoration style for constructions. When it is used as curtains, it offers a variety of color changes with

light and gives unlimited imagination.

technical data sheet of Stainless Steel Woven Wire Fabric , Decorative Architectural Rigid Mesh Facade

Stainless Steel Woven Wire Fabric , Decorative Architectural Rigid Mesh Facade Techincal support:

1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.

others Specification of Stainless Steel Woven Wire Fabric , Decorative Architectural Rigid Mesh Facade

Material:Stainless Steel304316316L                   Material:Stainless Steel304316316L               Material:Stainless Steel304316316L

Warp diameter:1.2mm*1                                        Warp diameter:1.2mm*2                                      Warp diameter:1.2mm*2

Warp pitch:5mm                                                       Warp pitch:17.5mm                                                Warp pitch:17.5mm

Weft diameter:1.2mm                                              Weft diameter:2mm                                               Weft diameter:2mm

Weft pitch:5mm                                                         Weft pitch:4mm                                                       Weft pitch:6mm

Weight:3.66kg/m2                                                    Weight:7.4kg/m2                                                      Weight:5.3kg/m2

Material:Stainless Steel304316316L                  Material:Stainless Steel304316316L                  Material:Stainless Steel304316316L

Warp diameter:2.26*3                                            Warp diameter:1.5mm*6mm                                   Warp Diameter: 3mm

Warp pitch:33mm                                                    Warp pitch:12mm                                                       Warp Pitch: 50mm

Weft diameter:2.26mm*3                                       Weft diameter:1.5mm*6mm                                    Weft Diameter: 3mm

Weft pitch:33mm                                                      Weft pitch:12mm                                                        Weft Pitch: 10mm

Weight:6kg/m2                                                         Weight:12.23kg/m2                                                    Weight:6.8kg/m2

Material:Stainless Steel304316316L                          Material:Stainless Steel304316316L        Material:Stainless Steel304316316L

Warp diameter:2mm*1                                                  Warp diameter:1.35mm                                  Warp diameter:2mm*1

Warp pitch:32mm                                                            Warp pitch:2.5mm                                            Warp pitch:8mm

Weft diameter:2mm                                                        Weft diameter:1.6mm*1                                  Weft diameter:1.5mm

Weft pitch:4.5mm                                                             Weft pitch:5.4mm                                             Weft pitch:1.5mm

Weight:6.44kg/m2                                                            Weight:7.64kg/m2                                            Weight:12.7kg/m2
